- RS Stock No.:
- 408-6777
- Mfr. Part No.:
- 111-0808LB16-34
- Manufacturer:
- Sentinel
380 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
4090 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 10)
MYR4.142
| Units | Per Unit | Per Pack* |
| 10 - 140 | MYR4.142 | MYR41.42 |
| 150 - 240 | MYR4.054 | MYR40.54 |
| 250 + | MYR3.932 | MYR39.32 |
| *price indicative | ||
- RS Stock No.:
- 408-6777
- Mfr. Part No.:
- 111-0808LB16-34
- Manufacturer:
- Sentinel
Technical data sheets
Legislation and Compliance
Product Details

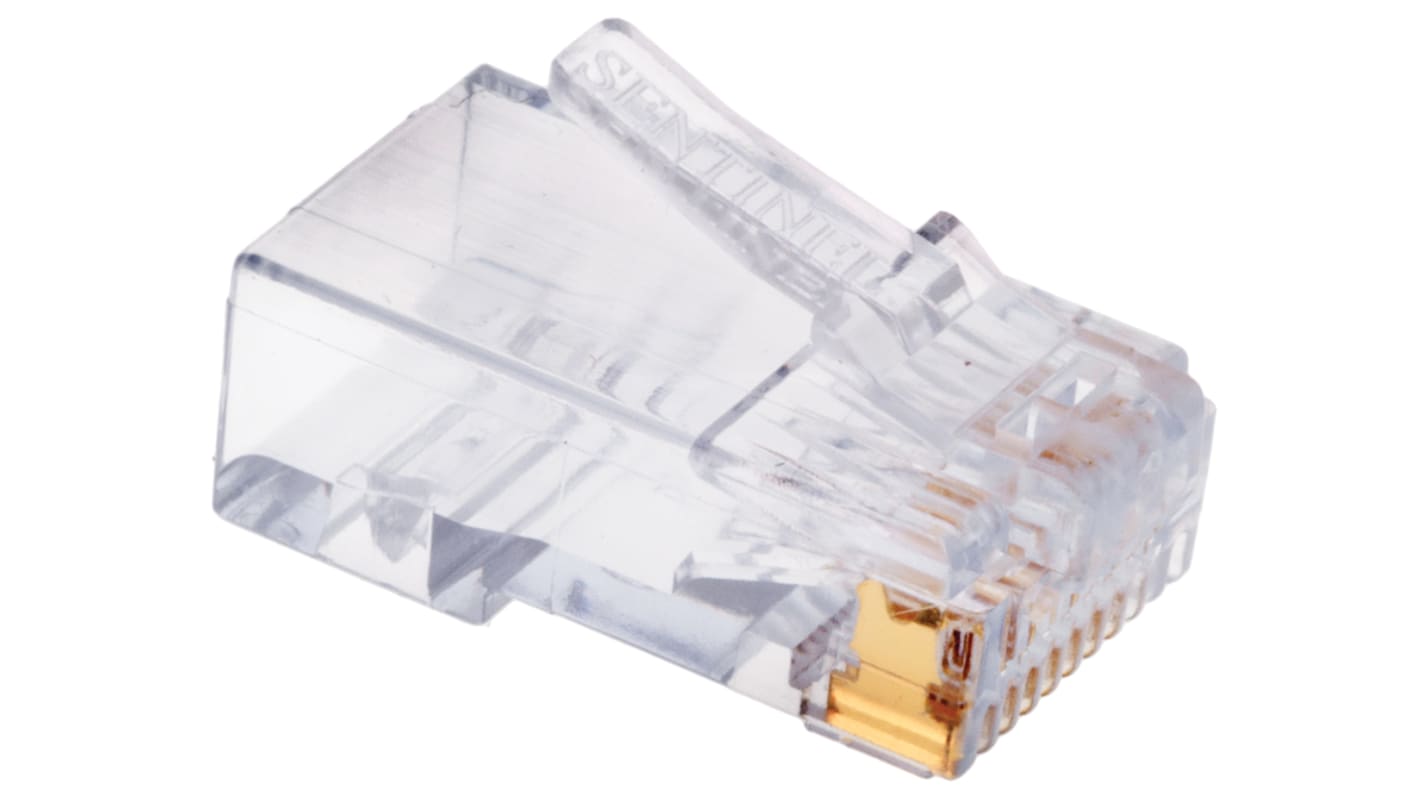

Sentinel RJ45 Plug
The Sentinel single port Cat5e male RJ45 plug is a cable mount unshielded eight conductors modular plug. This plug includes a load bar to position wires for easier assembly. It has staggered wire termination to reduce crosstalk and meet the Sentinel specification for data plugs. This plug has contact material of phosphor bronze with gold over nickel plating.
Features and Benefits
Accepts both, solid and standard wires with outside diameter range of 0.94/1.06mm
Excellent quality
High reliability
Excellent quality
High reliability
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
Specifications
Attribute | Value |
|---|---|
| Gender | Male |
| Ethernet Connector Type | RJ45 Connector |
| LAN Category | Cat5e |
| Mounting Type | Cable Mount |
| Number of Ports | 1 |
| Number of Ways | 8 |
| Shield Type | Unshielded |
| Orientation | Straight |
| Length | 11.68mm |
| Depth | 22.48mm |
| Series | 11 |
| Series Number | 111-0808LB16-34 |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold over Nickel |
