Wurth Elektronik WR-MJ Series Female RJ45 Connector, Surface Mount
- RS Stock No.:
- 162-2235P
- Mfr. Part No.:
- 634104149621
- Manufacturer:
- Wurth Elektronik
Temporarily out of stock - back order for despatch 28/06/2024, delivery within 4 working days from despatch date
Added
Price Each (Supplied on a Reel) Quantities below 150 on continuous strip
MYR23.79
| Units | Per Unit |
| 50 - 99 | MYR23.79 |
| 100 + | MYR22.34 |
- RS Stock No.:
- 162-2235P
- Mfr. Part No.:
- 634104149621
- Manufacturer:
- Wurth Elektronik
Legislation and Compliance
Product Details

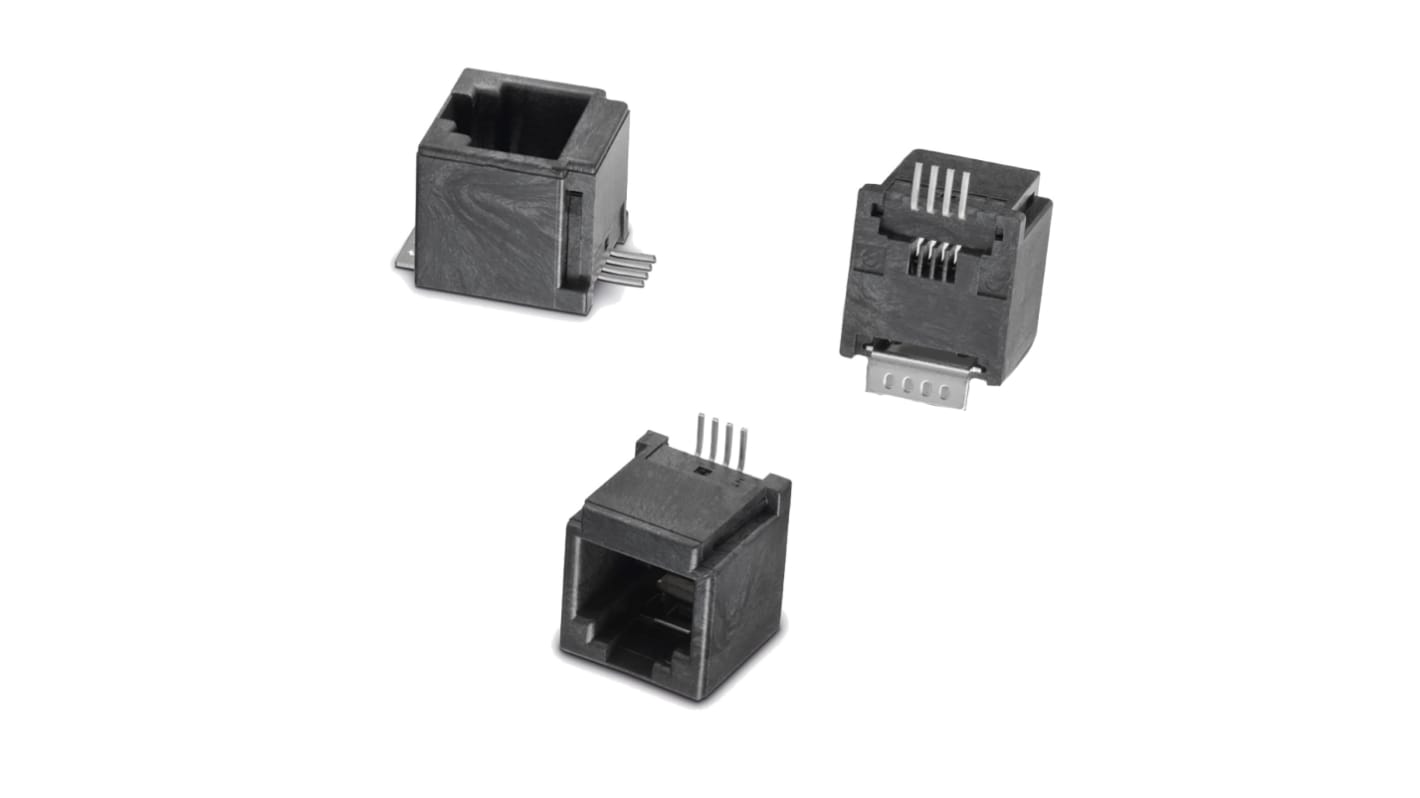

The Wurth Elektronik WR-MJ is a SMT mount, vertical modular jack top entry type plastic connector having 4P4C number of pins and copper alloy contact material. It has withstanding voltage of 1000V AC, working voltage of 120V AC and contact resistance of 20 mΩ.
RoHS compliant
Operating temperature ranges between -40°C up to +85°C
500 mating cycles
Operating temperature ranges between -40°C up to +85°C
500 mating cycles
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| Ethernet Connector Type | RJ45 Connector |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Number of Ways | 4 |
| Orientation | Vertical |
| Length | 13.2mm |
| Width | 14mm |
| Depth | 12.9mm |
| Series Number | 634104 |
| Series | WR-MJ |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
