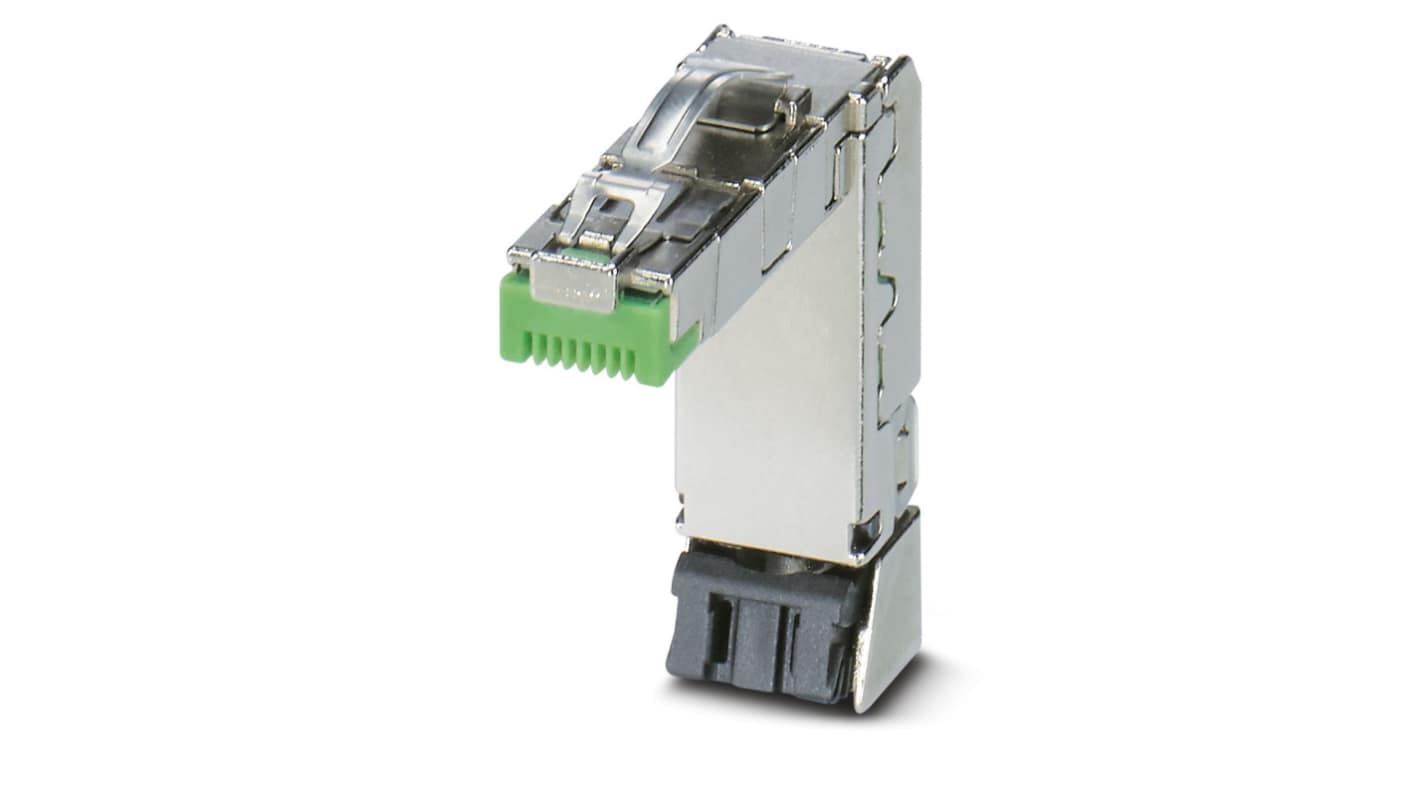

Phoenix Contact, CUC-IND-C1ZNI-T/R4IE8, Male Cat5 RJ45 Connector

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

IP20 RJ45 Plugs

From Phoenix Contact, a series of 8 position RJ45 connectors. These IP20 RJ45 connectors benefit from IDC fast connection technology making them ideal for time critical situations. The connectors have copper alloy contacts with gold over nickel plating, ensuring optimum quality in connections within networking environments. All models are highly reliable and excellent quality.

Specifications
Attribute Value
Ethernet Connector Type RJ45 Connector
Gender Male
LAN Category Cat5
Mounting Type Cable Mount
Number of Ways 8
Connector Type IDC
Shield Type Shielded
Orientation Right Angle
IP Rating IP20
Length 13.7mm
Width 37.9mm
Depth 44.7mm
Series CUC-IND-C1ZNI-T/R4IE8
Contact Material Copper Alloy
Contact Plating Gold over Nickel
Temporarily out of stock - back order for despatch 04/11/2020, delivery within 4 working days from despatch date
Price 1 Box of 1
Was MYR130.15
MYR 121.22
Box(es)
1 - 9
MYR121.22
10 - 24
MYR112.75
25 - 49
MYR103.18
50 - 99
MYR96.98
100 +
MYR88.14
