ABB 1 Phase LCD Energy Meter, Type Transformer Connected
- RS Stock No.:
- 914-6739
- Mfr. Part No.:
- 2CMA100150R1000 B21 112-100
- Manufacturer:
- ABB
7 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,243.65
| Units | Per Unit |
| 1 - 4 | MYR1,243.65 |
| 5 - 9 | MYR1,217.53 |
| 10 + | MYR1,181.00 |
- RS Stock No.:
- 914-6739
- Mfr. Part No.:
- 2CMA100150R1000 B21 112-100
- Manufacturer:
- ABB
Legislation and Compliance
Product Details

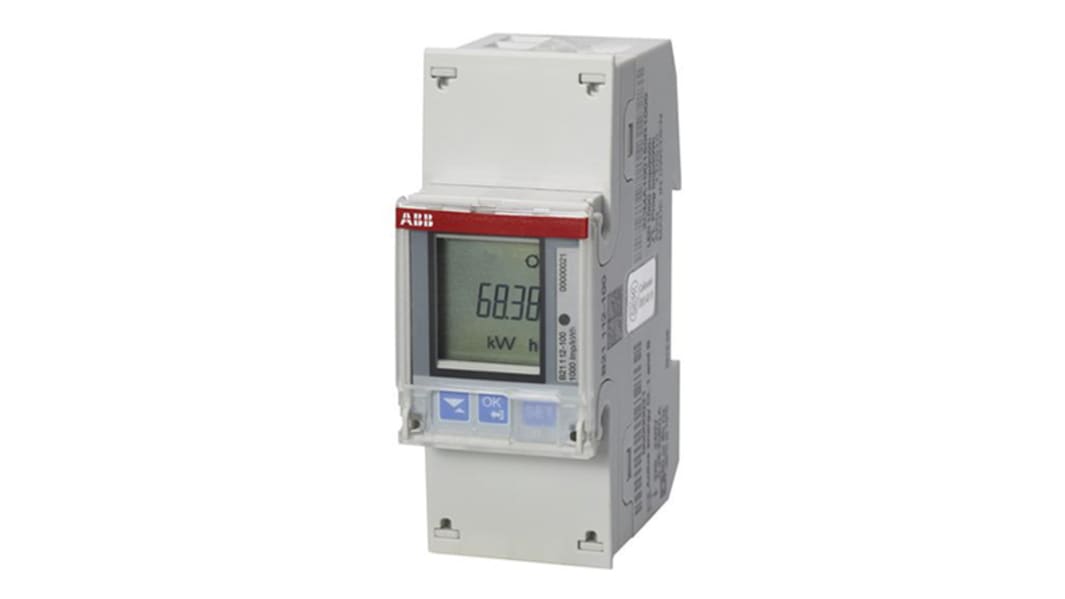

ABB Energy Meter, DIN Rail Mounting, 5A Current Rating - B21 Series - 2CMA100150R1000 B21 112-100
Keen to cut down on energy waste in your circuits? Get the measure of them with this energy meter from ABB. It automatically logs your gear's power usage, helping you lock onto problem areas. Checking the unit is easy, as its backlit LCD display shines bright in virtually all lighting conditions. Simple DIN rail mounting means it snaps into your system without the hassle of special tools. Thanks to its RS485 serial interface, this device raises the alarm with your control device if it senses excess energy outgoings.
Features & Benefits
• Handles current up to 65A, so it's suitable for use with common industrial components
• Slim dimensions of 35 (W) x 26.5 (H) x 65mm (D) to easily pack onto hard-working rails
• Fully protected by insulating PC housing, limiting your exposure to electrical loads
• Uses just 0.414W of power to cut back on energy consumption
• Slim dimensions of 35 (W) x 26.5 (H) x 65mm (D) to easily pack onto hard-working rails
• Fully protected by insulating PC housing, limiting your exposure to electrical loads
• Uses just 0.414W of power to cut back on energy consumption
Applications
• Industrial automation
• Building management
• Manufacturing industry
• Building management
• Manufacturing industry
How accurate are the readings this product takes?
This meter's measurements are accurate to ±1%, so you can trust it gives you precise data.
Specifications
Attribute | Value |
|---|---|
| Cutout Height | 65mm |
| Cutout Width | 35mm |
| Display Type | LCD |
| Number of Digits | 6 |
| Number of Phases | 1 |
| Pulse Output | Yes |
| Communication Port Type | Modbus RS485 |
| Number of Outputs | 1 |
| Depth | 65mm |
| Meter Accuracy | Class 1 |
| Minimum Temperature | -40°C |
| Maximum Temperature | +70°C |
| Meter Type | Transformer Connected |
| Approvals | EN 50470-1, EN 50470-3, EN 55022, GB 4208-2008, GB/T 17215.211-2006, GB/T 17215.321-2008 Class 1 & 2, GB/T 17215.322-2008 Class 0 & 5 S, IEC 60060-1, IEC 60529, IEC 60695-2-1, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 62052-11, IEC 6 |
| Series | B |
| Measurement Range | 220 → 240V ac |
