STEGO Enclosure Heater, 56V dc, 800W Input, 100mm x 145mm x 166mm
- RS Stock No.:
- 182-9826
- Mfr. Part No.:
- 03097.3-12
- Manufacturer:
- STEGO
Temporarily out of stock - back order for despatch 09/07/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR2,586.47
| Units | Per Unit |
| 1 - 4 | MYR2,586.47 |
| 5 + | MYR2,526.33 |
- RS Stock No.:
- 182-9826
- Mfr. Part No.:
- 03097.3-12
- Manufacturer:
- STEGO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

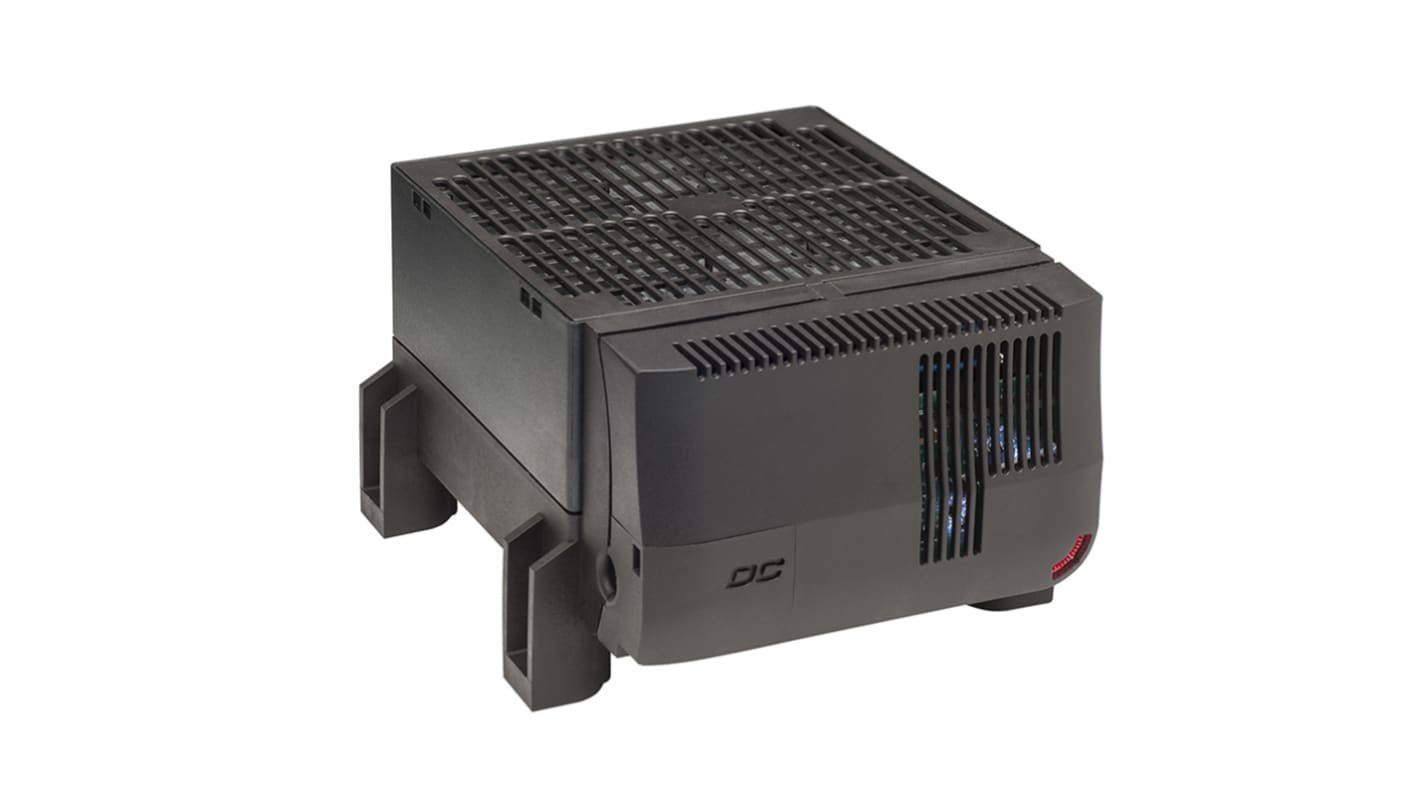

The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The fan heater is available with an integrated electronic thermostat or integrated electronic hygrostat. The model with thermostat is available with internal or external sensor. The fan heater with integrated hygrostat is equipped with an external sensor. The external sensor can be positioned freely anywhere in the enclosure for precise measurements of temperature and humidity. The DCR 030 was designed as a stationary unit for the bottom of the enclosure. For wall fixing the fan heater DCR 130 is recommended.
High DC heating performance
Integrated thermostat or hygrostat (optional)
Small hysteresis
Integrated switch module
Screw fixing
Optical indicator (LED)
Integrated thermostat or hygrostat (optional)
Small hysteresis
Integrated switch module
Screw fixing
Optical indicator (LED)
Specifications
Attribute | Value |
|---|---|
| Air Flow | 160m³/h |
| Input Power Rating | 800W |
| Supply Voltage | 56V dc |
| Depth | 166mm |
| Height | 100mm |
| Width | 145mm |
| Series | DCR 030 |
| Nominal Current | 25A |
