RS PRO Enclosure Heater, 230V ac, 80W Output, 80W Input, 93°C, 70mm x 191mm x 67mm
- RS Stock No.:
- 500-134
- Manufacturer:
- RS PRO
34 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
47 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
Was MYR334.17
You pay
MYR237.47
| Units | Per Unit |
| 1 - 24 | MYR237.47 |
| 25 - 49 | MYR234.65 |
| 50 - 99 | MYR229.11 |
| 100 - 499 | MYR221.34 |
| 500 + | MYR182.16 |
- RS Stock No.:
- 500-134
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
HVR Pentagon Anti-Condensation Heaters

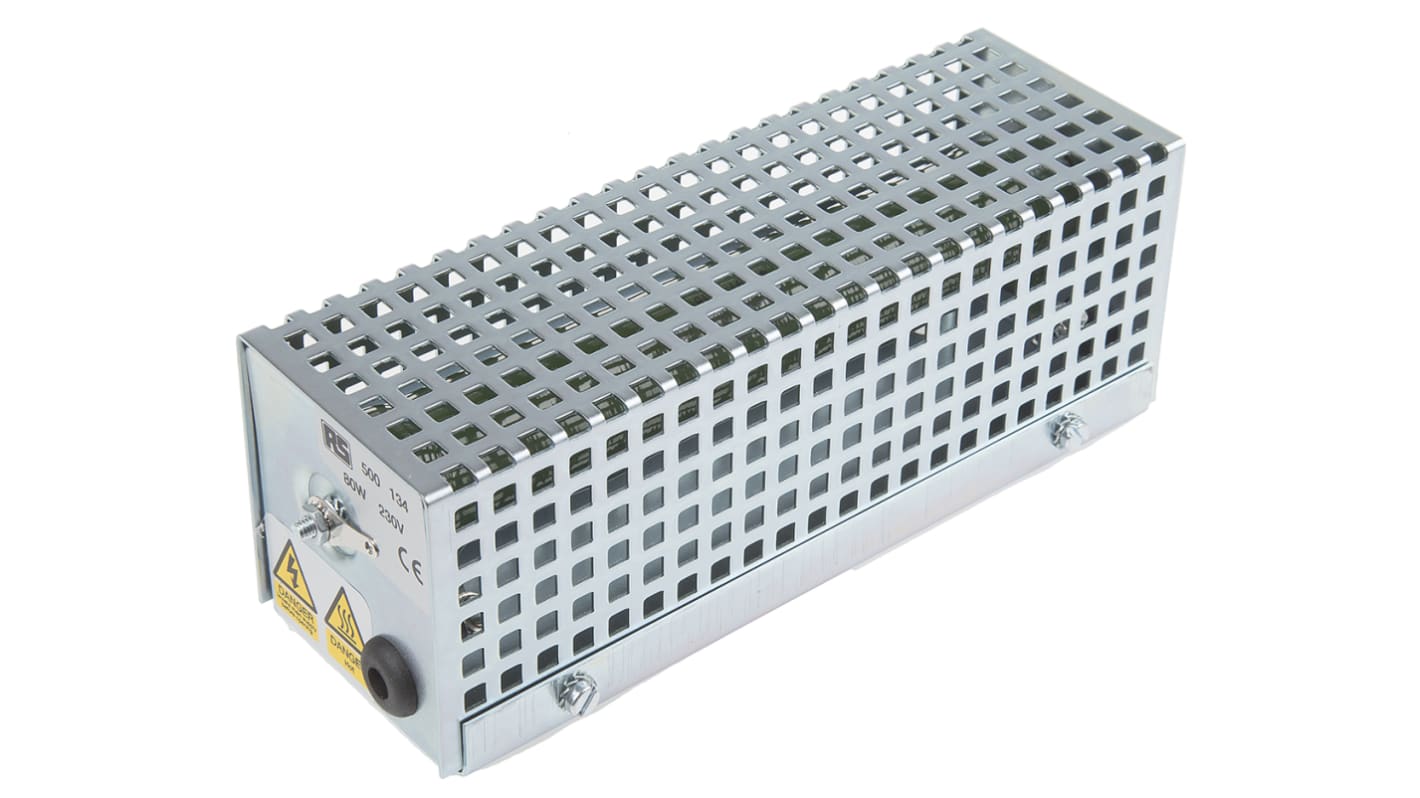

HVR Pentagon anti-condensation heaters have been designed for use where a low wattage heater is required to prevent condensation. They comprise a vitreous enamelled resistor mounted in a sheet steel case and have a removable perforated sheet steel cover. There is a cable entry grommet at each end and M4 terminal screws are provided on the resistor. Applications include switch and control gear cubicles.
Vitreous enamelled resistor mounted in a sheet steel case.
Removable perforated sheet steel cover.
Removable perforated sheet steel cover.
Note
The recommended power rating required is 10W per square metre of enclosing surface, excluding the base. They should be mounted on a back surface with the heating element horizontal and the terminals at the bottom.
Specifications
Attribute | Value |
|---|---|
| Output Power | 80W |
| Input Power Rating | 80W |
| Supply Voltage | 230V ac |
| Surface Temperature | 93°C |
| Depth | 67mm |
| Height | 70mm |
| Width | 191mm |
