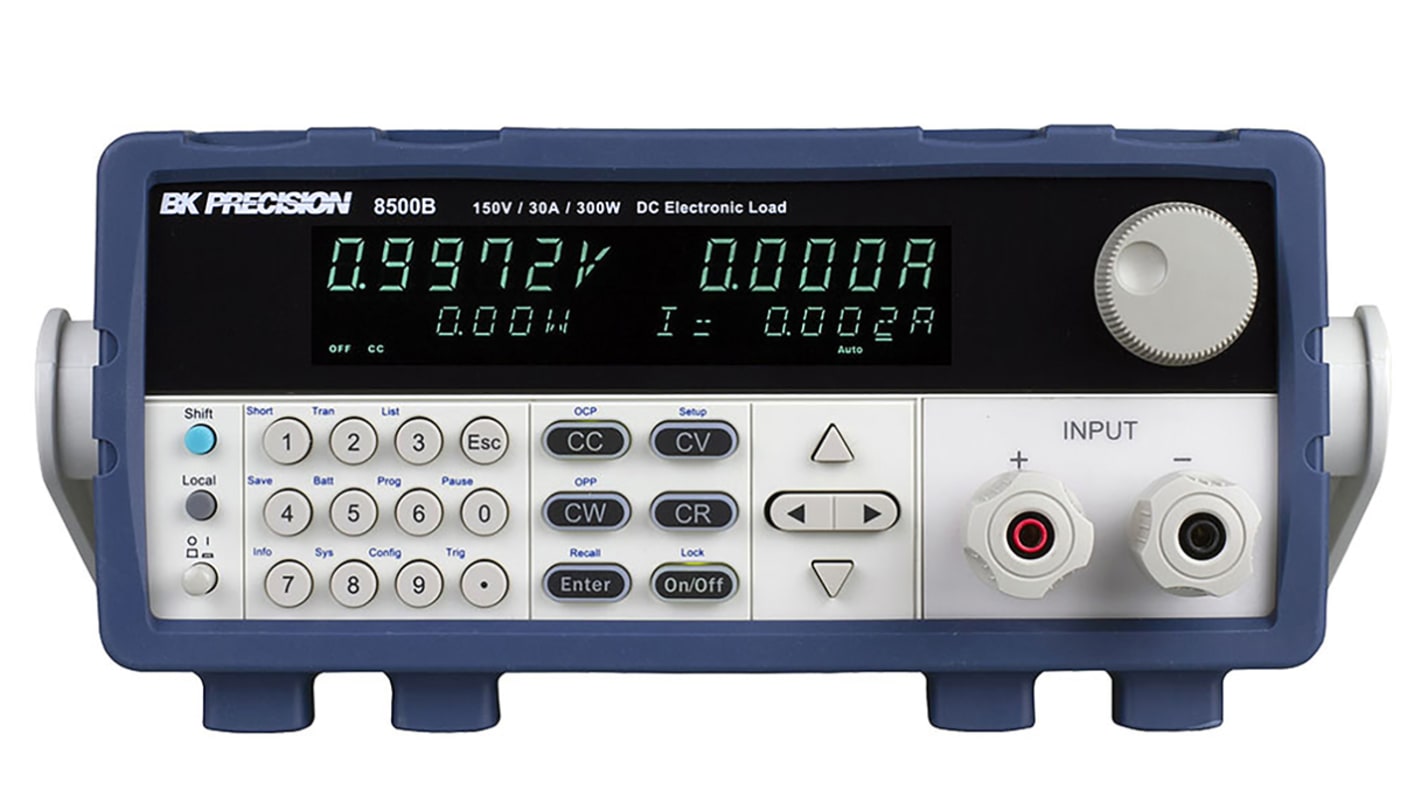

BK Precision 8500B Series Electronic Load, 0 → 600 W, 0 → 120 V, 0 → 120 A

RS Stock No.:: 192-4572
Mfr. Part No.:: BK8510B
Manufacturer:: BK Precision

BK Precision 8500B Series Electronic Load, 0 → 600 W, 0 → 120 V, 0 → 120 A

4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR17,578.10

Units	Per Unit
1 +	MYR17,578.10

RS Stock No.:: 192-4572
Mfr. Part No.:: BK8510B
Manufacturer:: BK Precision

Technical data sheets

Datasheet BK8500B

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Maximum input power up to 600 W
CC/CV/CR/CW operating modes
Transient mode up to 10 kHz in CC mode
16-bit voltage and current measurement system with up to 0.1 mV / 0.1 mA resolution
List mode and adjustable slew rate in CC mode
Short circuit test
Built-in battery test function with voltage level, capacity level, and timer stop conditions
CR-LED mode to simulate the loading behaviour of typical LEDs
Remote voltage sensing to compensate for the effect of voltage drop in wires
Analog current control and monitoring
TTL (DB9) interface, includes TTL to USB adapter
OVP/OCP/OPP/OTP and local/remote reverse voltage (LRV/RRV) protection

Specifications

Attribute	Value
Series	8500B
Load Type	Programmable
Constant Voltage Mode Range	0 → 120 V
Constant Current Mode Range	0 → 120 A
Constant Resistance Mode Range	10 → 7500 Ω
Constant Wattage Mode Range	0 → 600 W
Rack Units	2 U
