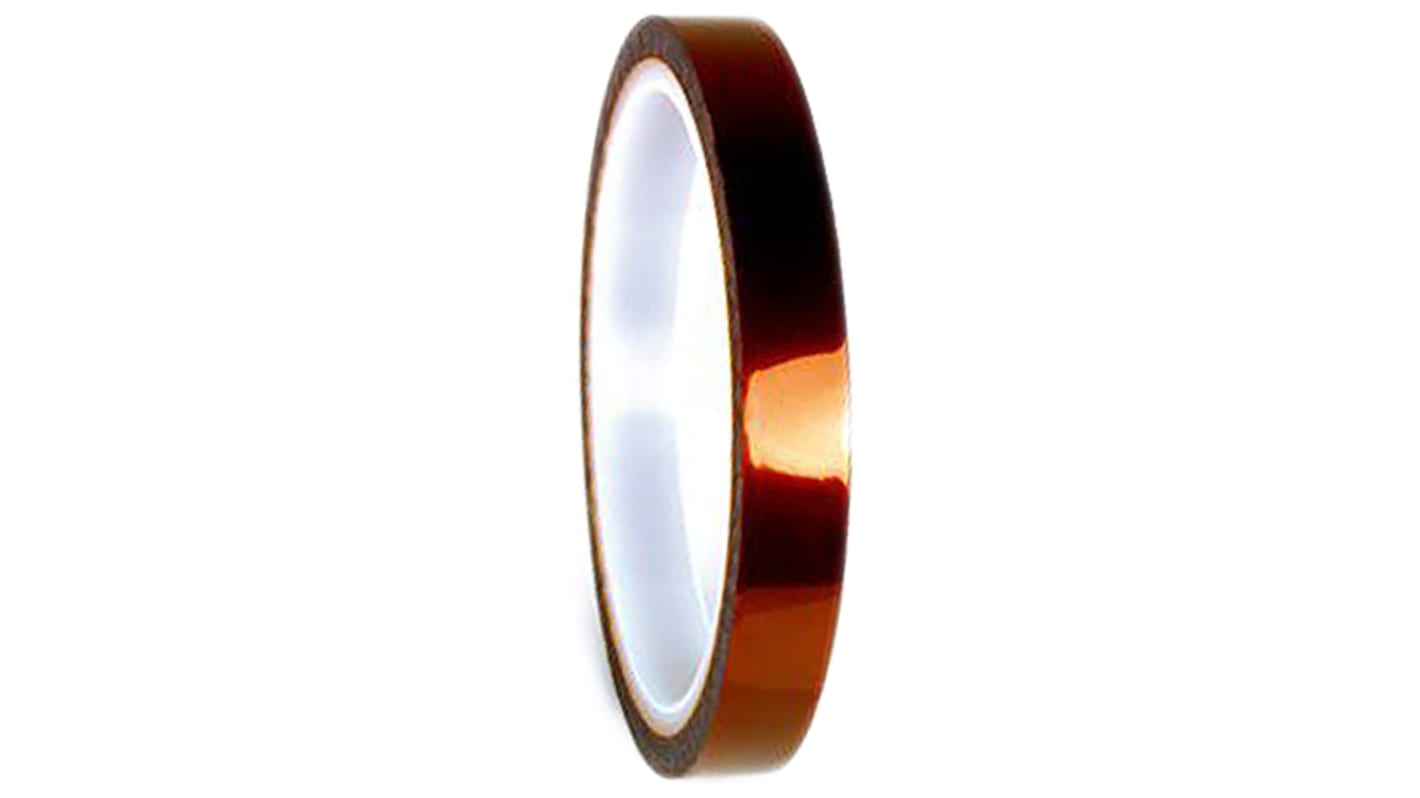

3M Amber Electrical Tape, 19mm x 33m

  • RS Stock No. 885-5108
  • Mfr. Part No. T120519
  • Manufacturer 3M
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

3M™ Polyimide Film Electrical Tape 1205

3M™ 1205 Electrical Tape has a polyimide film backing with acrylic adhesive. Its acrylic pressure-sensitive adhesive allows it to be used at high temperatures, and it is flame retardant.

Application

This tape is designed especially for high-temperature applications that require a thin puncture resistant backing. The 1 mm film is not only thin but very tough requiring applications that require printability and solvent/flame resistance (UL150).

Features and Benefits

Polyimide film tape with acrylic pressure-sensitive adhesive Specially designed for high-temperature applications requiring a thin puncture-resistant backing
Solvent-resistant version of 92 Tape
1 mm film
UL 510 Flame Retardant

FAQ's

Can wires with exposed cables be made safe with this tape?

Yes, the electrical tape is designed for this purpose, but would recommended seek professional advice to deal with exposed wires.

Electrical Tapes

For electrical installation and repair work; soldered joints and seams; insulation of soldered joints, terminals, cable sockets and conduction rails.

Specifications
Attribute Value
Colour Amber
Backing Material Polyimide Film
Width 19mm
Length 33m
Thickness 0.076mm
Minimum Operating Temperature 0°C
Maximum Operating Temperature +155°C
Adhesive Material Acrylic
Trade Name Scotch 1205
Adhesion Strength 3.8 N/cm
Elongation at Break 55%
Tensile Strength 53N/cm
Breakdown Voltage 3000V
Model Number 3M™ 1205
27 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 325.98
units
Per unit
1 +
MYR325.98
