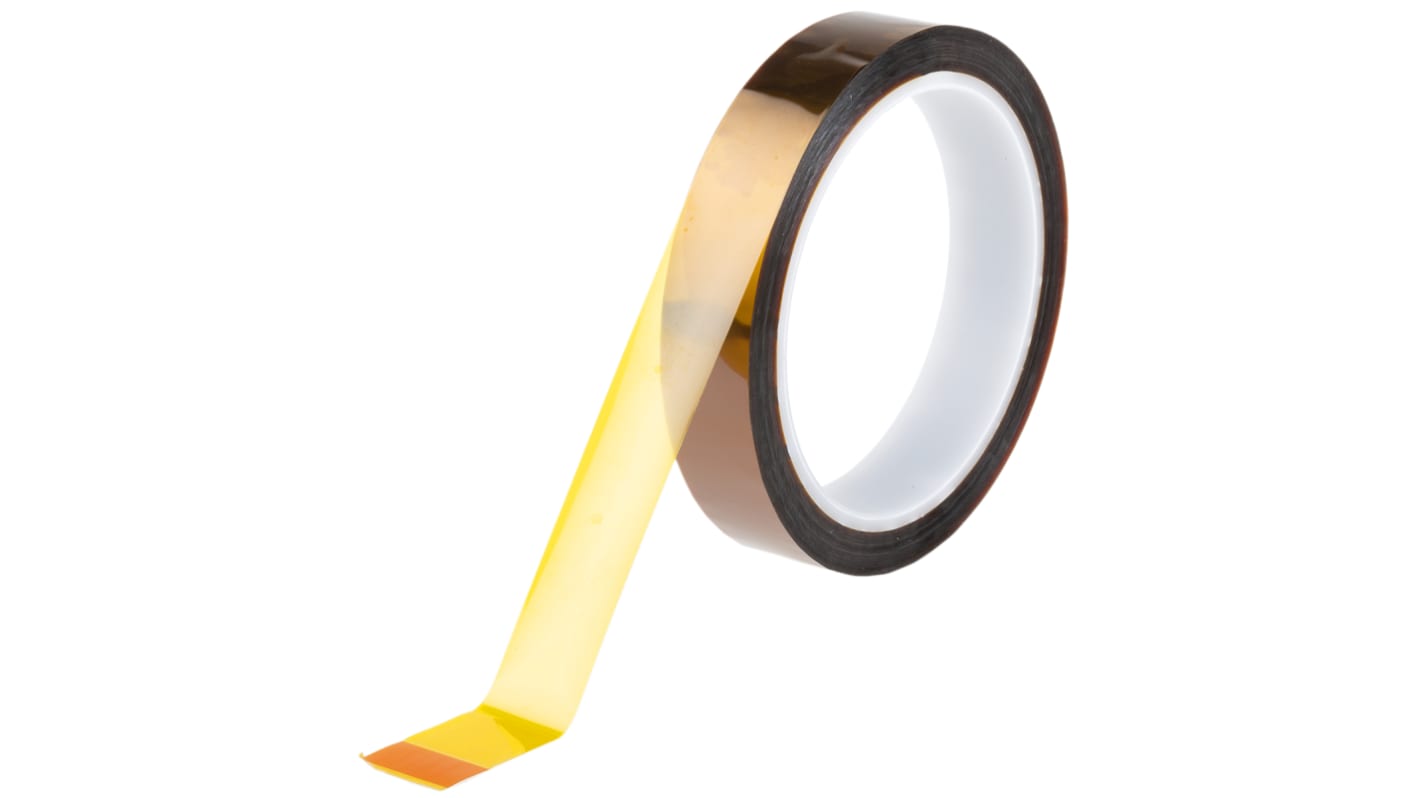

Amber Electrical Tape, 19mm x 33m

  • RS Stock No. 468-403
  • Mfr. Part No. HB830-19
  • Manufacturer Hi-Bond
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): KR
Product Details

Adhesive Polyimide Tape

A high performance film backed by a silicone thermosetting adhesive which will not carbonise at elevated temperatures.,The tape is specifically designed for high temperature exposure where mechanical, electrical and adhesive properties must be maintained, e.g. coil/capacitor wrapping.,The material's inherent physical toughness enables it to perform many tasks, e.g. masking of PCBs prior to soldering and gold plating, lead and turn anchoring and protection against chemical attack on components.

Benefits:

Bondplus Electrical Tape
For covering at high temperatures
No adhesive residue
For covering from connection terminals from circuit boards
Very high temperature resistance of 250 °C
For surface protection
For high-temperature-clamp connections (200 °C)
Temperature resistant, clean to remove

Features:

• Carrier: Polyimide
• Colour: Amber
• Thickness Carrier: 25
• Adhesive: Silicone

Typical Applications

These Polyimide Tapes are suitable for the most demanding applications in electronic industries.

• Die-cutting to precise tolerances for masking applications
• Fixing Static laminators
• Membrane switch and keypad applications
• E.M.I. / R.F.I. shielding
• Electrical insulation

Electrical Tapes

For electrical installation and repair work; soldered joints and seams; insulation of soldered joints, terminals, cable sockets and conduction rails.

Specifications
Attribute Value
Colour Amber
Width 19mm
Length 33m
Backing Material Polyimide Film
Thickness 0.07mm
Maximum Operating Temperature +260°C
Trade Name HB830
235 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 161.15
units
Per unit
1 - 4
MYR161.15
5 - 9
MYR156.33
10 +
MYR152.99
