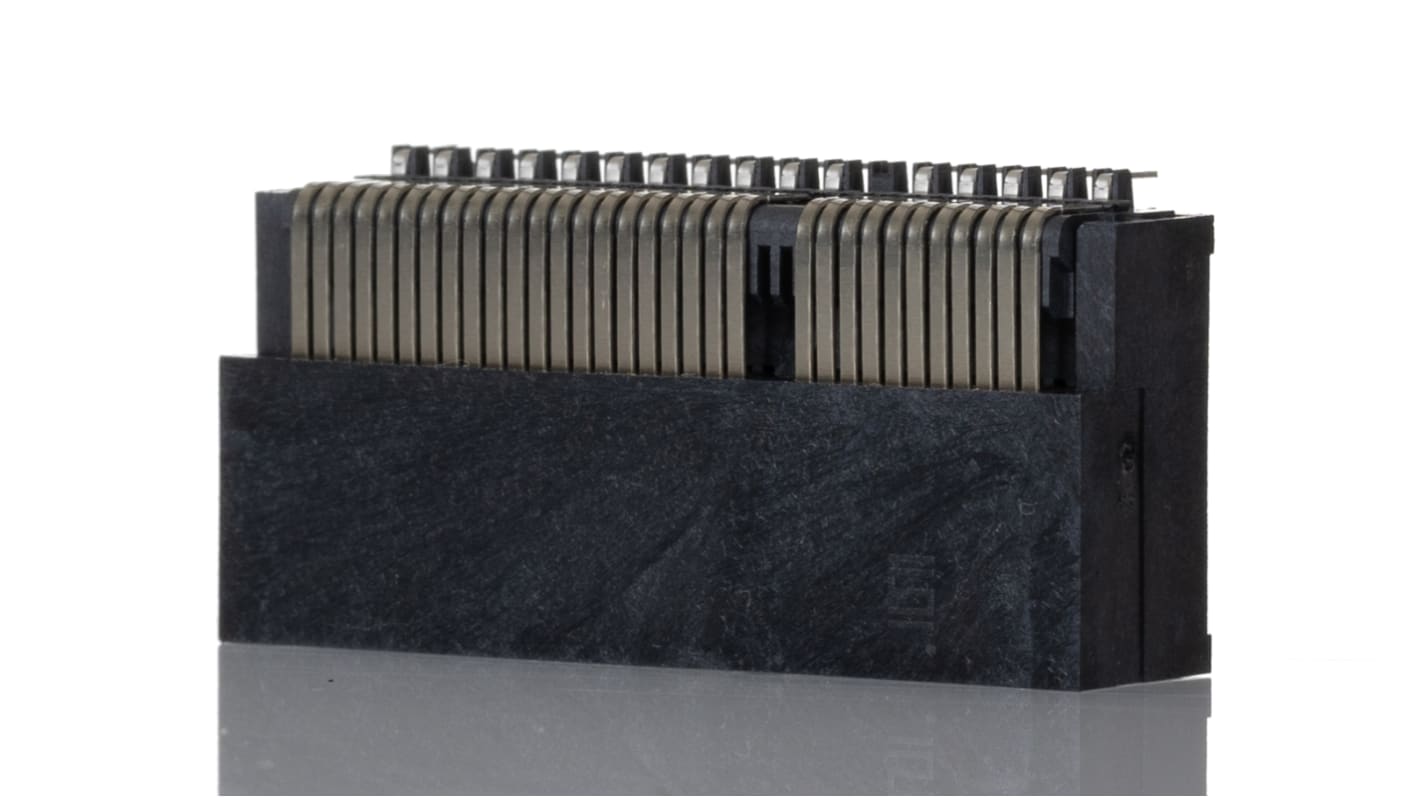

Samtec PCIE Series Right Angle Female Edge Connector, Through Hole Mount, 64-Contacts, 1mm Pitch, 2-Row, Solder

RS Stock No.:: 767-7032
Mfr. Part No.:: PCIE-064-02-F-D-RA
Manufacturer:: Samtec

Samtec PCIE Series Right Angle Female Edge Connector, Through Hole Mount, 64-Contacts, 1mm Pitch, 2-Row, Solder

This image is representative of the product range

4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR32.11

Units	Per Unit
1 - 19	MYR32.11
20 - 74	MYR31.45
75 - 299	MYR30.48
300 - 599	MYR29.74
600 +	MYR29.10

RS Stock No.:: 767-7032
Mfr. Part No.:: PCIE-064-02-F-D-RA
Manufacturer:: Samtec

Technical data sheets

Legislation and Compliance

Product Details

Samtec PCIE Series Edge Connector, Right Angle Body Orientation, 2.5A - PCIE-064-02-F-D-RA

This high-quality Samtec PCIE edge connector is designed for precision and reliability. With gold-plated phosphor bronze contacts and a nylon housing, this connector ensures durability and optimal conductivity.

Features & Benefits

• Designed with a right-angle body orientation for seamless installations
• Gold plating over nickel ensures superior conductivity and corrosion resistance
• With a current rating of 2.5A, this connector can handle high-power applications efficiently
• Features 64 pins in 2 rows for versatile connectivity options
• The through-hole mounting type provides secure and stable connections
• Solder termination method for easy and reliable installation

Applications

• Used for high-current applications requiring secure connections
• Ideal for circuit boards with space constraints due to its compact design
• Suitable for industrial automation systems, automotive electronics, and more

Can it handle high temperatures?

Yes, it is designed to operate efficiently in temperatures ranging from -55°C to +125°C.

Will it provide secure connections for high-power applications?

Yes, the gold plating over nickel ensures optimal conductivity for high-current requirements.

Is it suitable for compact circuit board designs?

Yes, the right-angle body orientation and compact dimensions make it ideal for space-constrained applications.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Edge Connectors - Samtec

Specifications

Attribute	Value
Body Orientation	Right Angle
Gender	Female
Number of Contacts	64
Number of Rows	2
Pitch	1mm
Mounting Type	Through Hole
Termination Method	Solder
Contact Plating	Gold over Nickel
Contact Material	Phosphor Bronze
Current Rating	2.5A
Housing Material	Nylon
Series	PCIE
Minimum Operating Temperature	-55°C
Maximum Operating Temperature	+125°C
Length	39mm
Width	9.45mm
