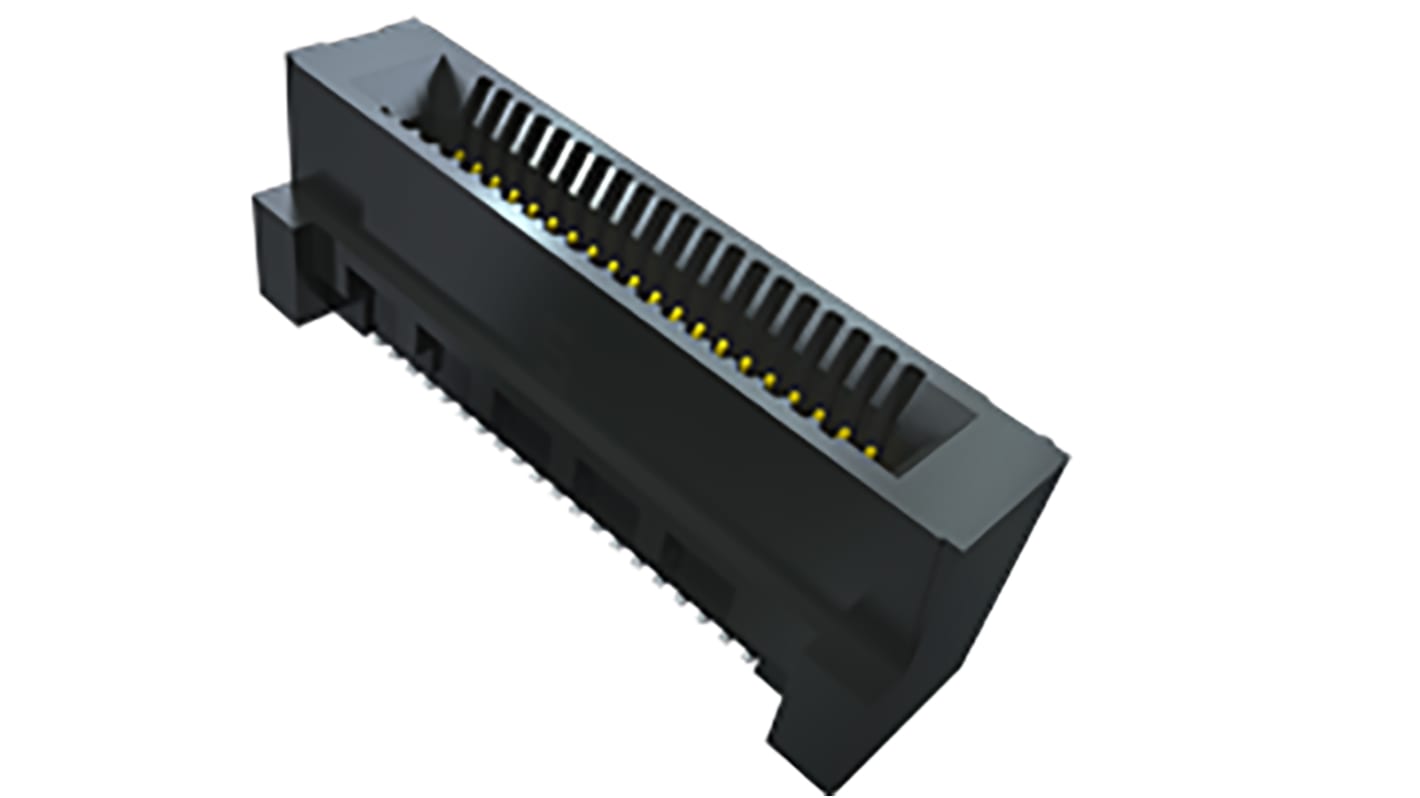

Samtec HSEC8-DV Series, Female PCB Edge Connector SMT, 40 Way, 2 Row, 0.8mm Pitch, 2.8A

  • RS Stock No. 179-8809
  • Mfr. Part No. HSEC8-120-01-S-DV-A
  • Manufacturer Samtec
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CR
Product Details

Rugged Edge Rate® contact
Single-ended and differential pairs
Card slot: .062" (1.60 mm)
Pass-through option available (HSEC8-PE)
Optional board locks and cable latching features
Optional weld tab for mechanical strength
Samtec 28+ Gbps Solution
Extended Life Product™ (E.L.P.™)

Specifications
Attribute Value
Body Orientation Vertical
Gender Female
Number of Contacts 40
Number of Rows 2
Pitch 0.8mm
Mounting Type Surface Mount
Termination Method Solder
Contact Plating Gold
Contact Material Beryllium Copper
Current Rating 2.8A
Housing Material Liquid Crystal Polymer
Series HSEC8-DV
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C
Card Type Card Edge
Width 7mm
Depth 7.8mm
Length 20.6mm
Temporarily out of stock - back order for despatch 16/04/2020, delivery within 4 working days from despatch date
Price Each (In a Tray of 84)
MYR 19.21
units
Per unit
Per Tray*
84 +
MYR19.21
MYR1,613.64
*price indicative
