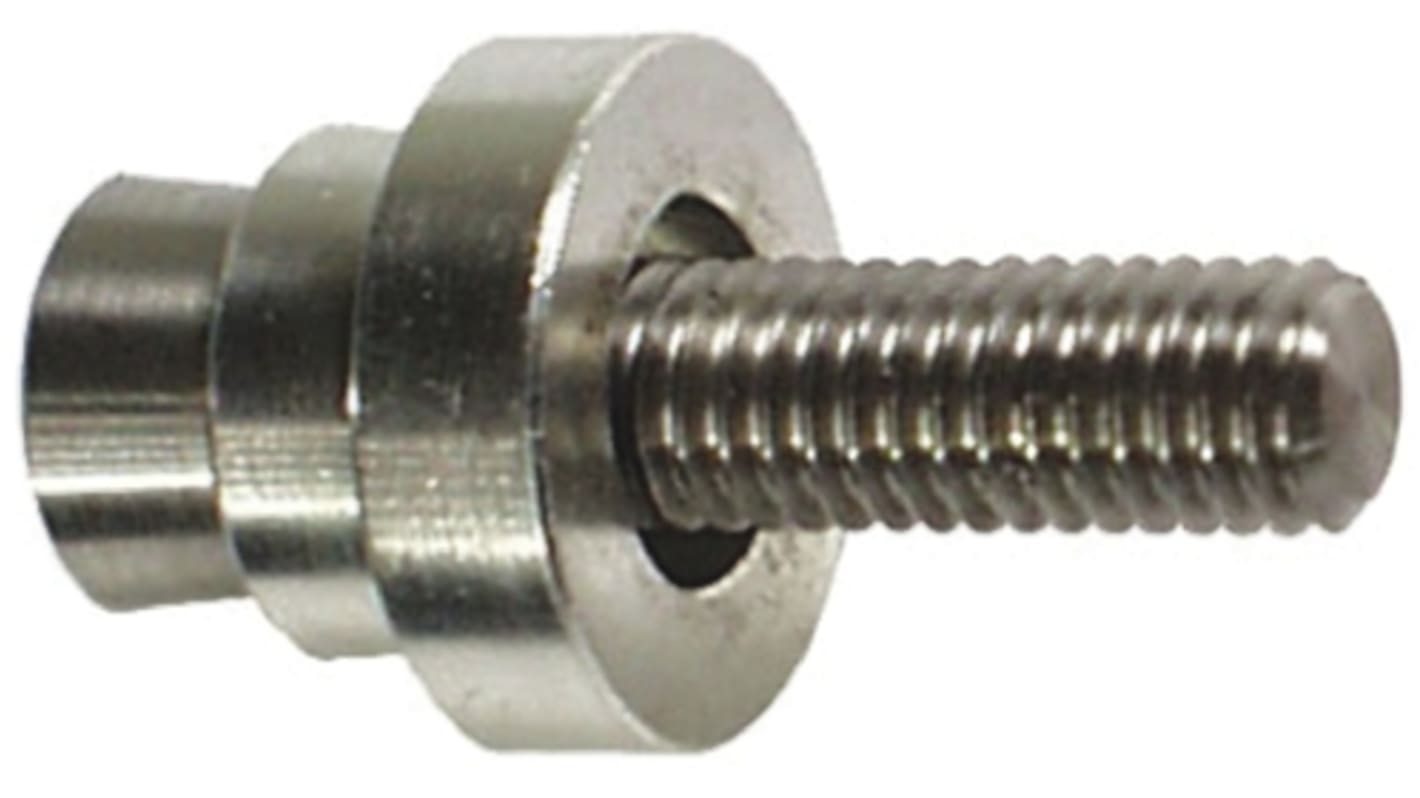

28mm Nickel Plated Stainless Steel Earth Bonding, 0 → 4 mm Thickness

  • RS Stock No. 720-0676
  • Mfr. Part No. 80961-01
  • Manufacturer Glenair
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Earth Bond

The Glenair® Earth Bond offers a reliable way of allowing attachment to metallic structures when used with the hydraulic setting tool. It is a method of electrical grounding that is widely used in Industries such as Automotive, Railway, Military Vehicles, and Rolling stock. An Equipotential bond is created and it is suitable where lightning strike protection is required, for EMC where low resistance electrical connections must be maintained. The Earth terminal can be used in hazardous area where a naked flame is not allowed. Ideal for applications where there is no access behind a structure as it can be installed from the one side.

Requires no welding, cleaning and is suitable for use on uneven surfaces
Manufactured with non-corroding materials
Consistent low electrical resistance connection
Produces a high strength joint
Available for Steel and Aluminium plates ranging from 1.5-4mm thickness

Note

The Earth Bonding system has been independently tested by the Defence Evaluation and Research Agency (DERA)

Approvals

ENV1,ENV2,ENV5 Certificate number 02 / 00022. The Earth Bonding system has been approved for use by the Ministry of Defence, Warship Support agency and is NATO codified.

Note

For use with RS 7200689 PMT10 Setting tool

Standards

ENV1,ENV2,ENV5 Certificate number 02 / 00022

Glenair® Earth Bonding System

The Glenair® Earth Bonding System offers a reliable way of allowing attachment to metallic structures .It is a method of electrical grounding that is widely used in Industries such as Automotive, Railway, Military Vehicles, and Rolling stock. An Equipotential bond is created and it is suitable where lightning strike protection is required, for EMC where low resistance electrical connections must be maintained. The Earth terminal can be used in hazardous area where a naked flame is not allowed. Ideal for applications where there is no access behind a structure as it can be installed from the one side.

Requires no welding, cleaning and is suitable for use on uneven surfaces
Manufactured with non-corroding materials
Lightweight hydraulic setting tool
Consistent low electrical resistance connection
Produces a high strength joint
Available for Steel and Aluminium plates ranging from 1.5-4mm thickness

Specifications
Attribute Value
Rivet Length 28mm
Rivet Body Material Aluminium
Mandrel Material Stainless Steel
Finish Nickel Plated
Thickness of Material Maximum 4mm
Thickness of Material Minimum 0mm
80 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 20)
MYR 65.044
units
Per unit
Per Pack*
20 - 80
MYR65.044
MYR1,300.88
100 - 480
MYR62.519
MYR1,250.38
500 - 1480
MYR60.287
MYR1,205.74
1500 - 2980
MYR58.277
MYR1,165.54
3000 +
MYR56.456
MYR1,129.12
*price indicative
