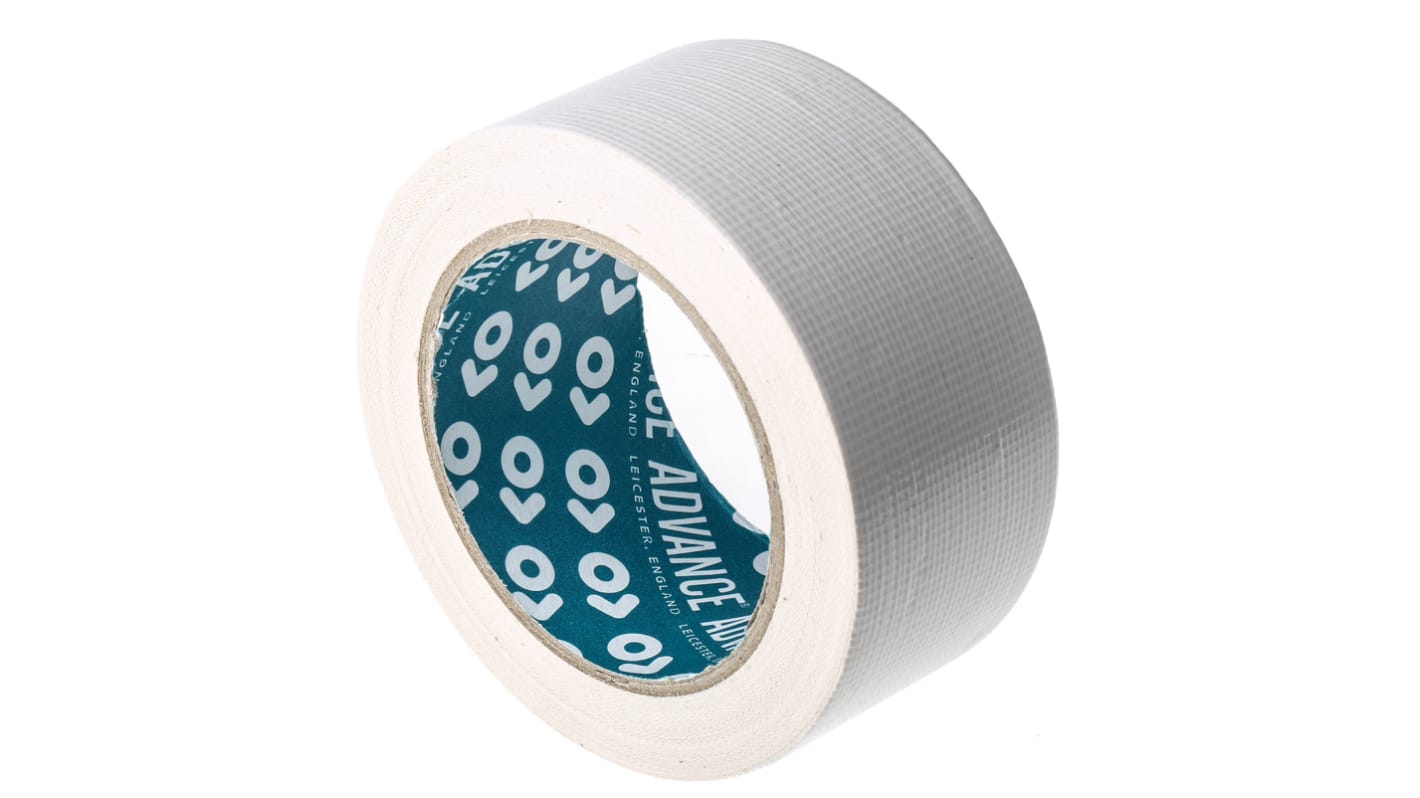

Advance Tapes AT170 Gloss White Duct Tape, 25m x 50mm x 0.20mm

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Duct Sealing Tapes

Laminated polyethylene coated fabric with an aggressive pressure sensitive adhesive
Commonly known as gaffer tape
For use in carton closure, drum and keg sealing, duct sealing, jointing polythene sheets
Good waterproof properties

Advance Tapes Polycloth Laminate Tape

The Advance Tapes AT170 white gloss, polycloth laminate tape coated with an aggressive pressure-sensitive rubber resin adhesive. This is 0.20mm thick, 50mm wide and 25m long. It is commonly known as gaffer tape.

Features and Benefits


Strong
• Easy tear and unwind
• Very high initial tack
• Good abrasion resistance
• Water resistant finish
• Conformable to awkward shapes
• Non-corrosive adhesive
• Breaking load is 35N/cm
• Elongation is 20%
• Service temperature is from -50°C to +65°C

Applications


Carton closure
• Drum and keg sealing
• Duct sealing
• Jointing polythene sheets

Certifications


ISO 9001

Approvals

7777

Specifications
Attribute Value
Colour White
Width 50mm
Length 25m
Backing Material Fabric
Thickness 0.20mm
Adhesive Material Rubber Resin
Adhesion Strength 3.7 N/cm
Elongation at Break 20%
Tensile Strength 35N/cm
Finish Gloss
Maximum Operating Temperature +65°C
Minimum Operating Temperature -50°C
Trade Name AT170
Model Number AT170
200 In Global stock for delivery within 4 - 6 working days
Price 1 Reel of 25 Metre(s)
MYR 37.76
Reel(s)
Per Reel
Per Metre*
1 - 9
MYR37.76
MYR1.51
10 - 19
MYR36.62
MYR1.465
20 +
MYR35.86
MYR1.434
*price indicative
