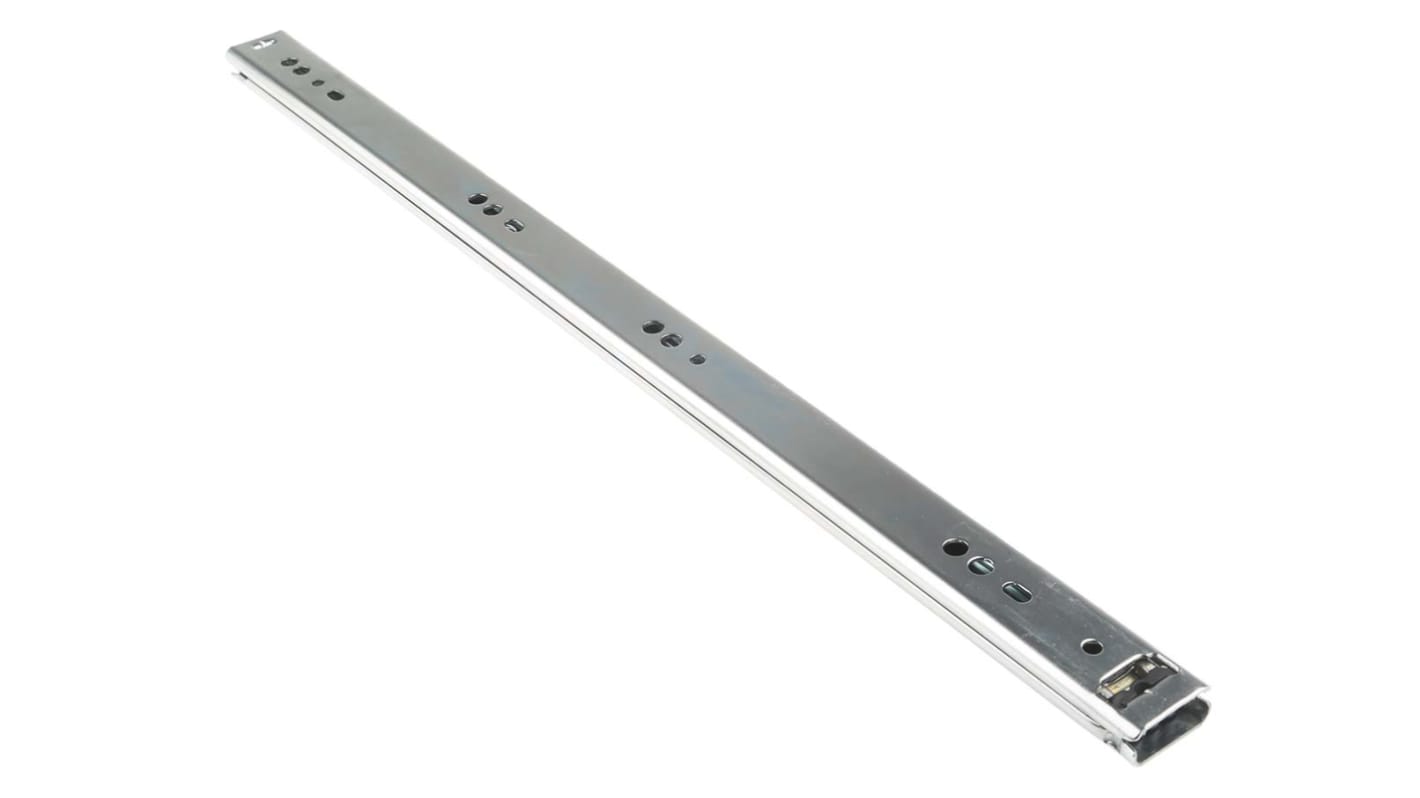

Accuride Self Closing Steel Drawer Runner, 450mm Closed Length, 45kg Load

  • RS Stock No. 188-6902
  • Mfr. Part No. DZ2601-0045
  • Manufacturer Accuride
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

Bringing you Accuride’s renowned high-quality performance with a very low profile for light-duty industrial hardware, such as tool boxes, laboratory equipment and commercial-grade fixtures. The full extension movement of the 2601 offers full access to all stored items without restriction. Light duty load rating of up to 45kg. Low profile of only 26.3mm high. 12.7mm slide thickness. This motion hardware has a side space of 12.7mm, along with a hold-in detent that prevents drawer roll-out and bounce-back for the perfect close every time. Due to its extra-low profile, the 2601 is not suitable for flat mounting and should not be used in this manner.

Load rating up to 45kg
100% extension
12.7mm slide thickness
Low profile - only 26.3mm high
Hold-in

Specifications
Attribute Value
Material Steel
Closing Type Self-Closing
Length Closed 450mm
Travel Length 456mm
Extension 100%
Overall Height 26mm
Maximum Load 45kg
Self Closing Yes
14 In Global stock for delivery within 4 - 6 working days
Price 1 Pair
MYR 159.88
Pair(s)
1 +
MYR159.88
