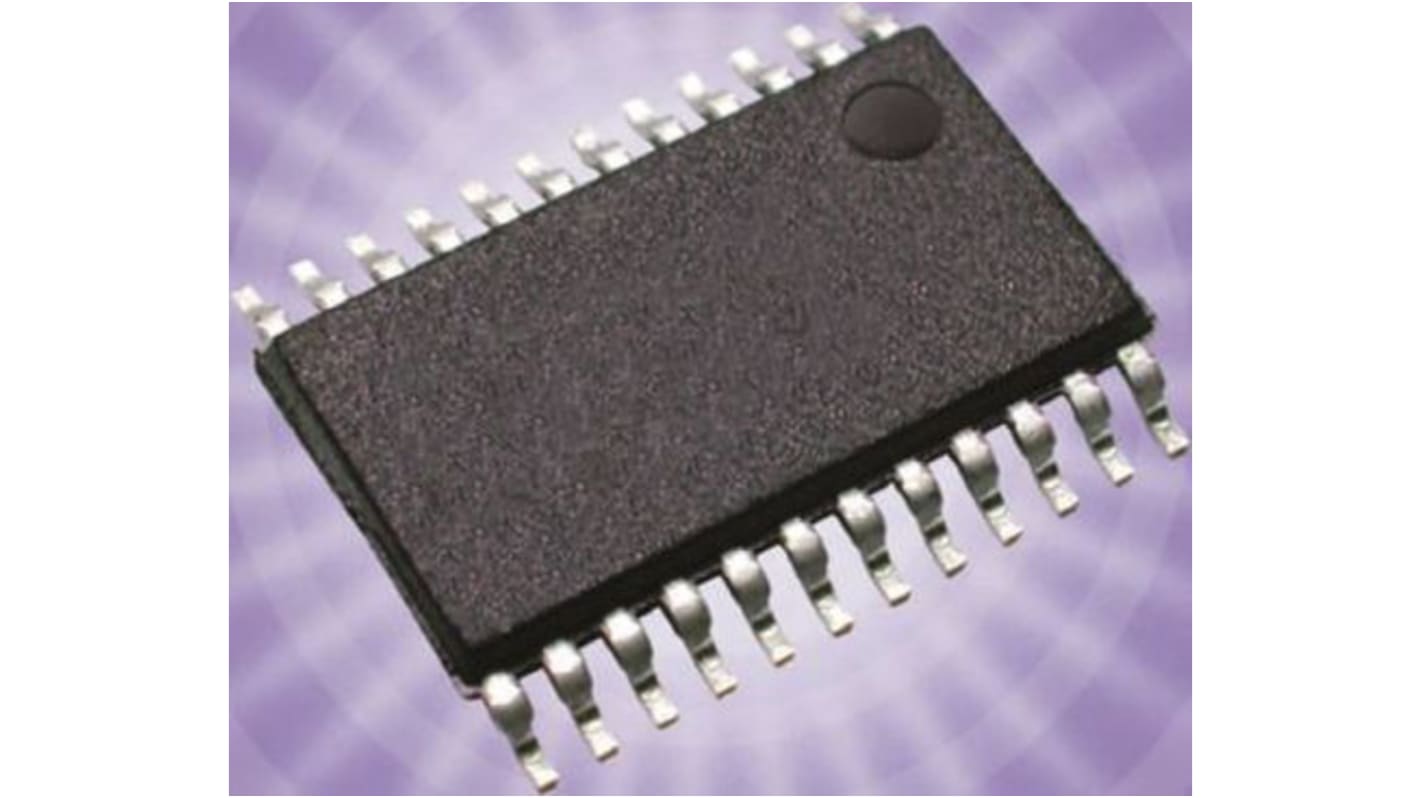

STMicroelectronics STP16CP05XTTR TSSOP Display Driver, 16 Segment, 24 Pin, 5 V
- RS Stock No.:
- 920-6345
- Mfr. Part No.:
- STP16CP05XTTR
- Manufacturer:
- STMicroelectronics
Temporarily out of stock - back order for despatch 05/07/2024, delivery within 4 working days from despatch date
Added
Price Each (On a Reel of 2500)
MYR7.167
| Units | Per Unit | Per Reel* |
| 2500 + | MYR7.167 | MYR17,917.50 |
| *price indicative | ||
- RS Stock No.:
- 920-6345
- Mfr. Part No.:
- STP16CP05XTTR
- Manufacturer:
- STMicroelectronics
Technical data sheets
Legislation and Compliance
Product Details
LED Array Drivers, STMicroelectronics
The LED array drivers fully integrate constant-current control and all functions required to drive high-brightness LEDs.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
LED Drivers, Lighting ICs, STMicroelectronics
Specifications
Attribute | Value |
|---|---|
| Package Type | TSSOP |
| Display Type | LED |
| Number of Pins | 24 |
| Maximum Clock Frequency | 30MHz |
| Supply Voltage | 5 V |
| Number of Segments | 16 |
| Maximum Supply Current | 11.7mA |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Mounting Type | Surface Mount |
| Width | 4.4mm |
| Height | 1mm |
| Length | 7.8mm |
