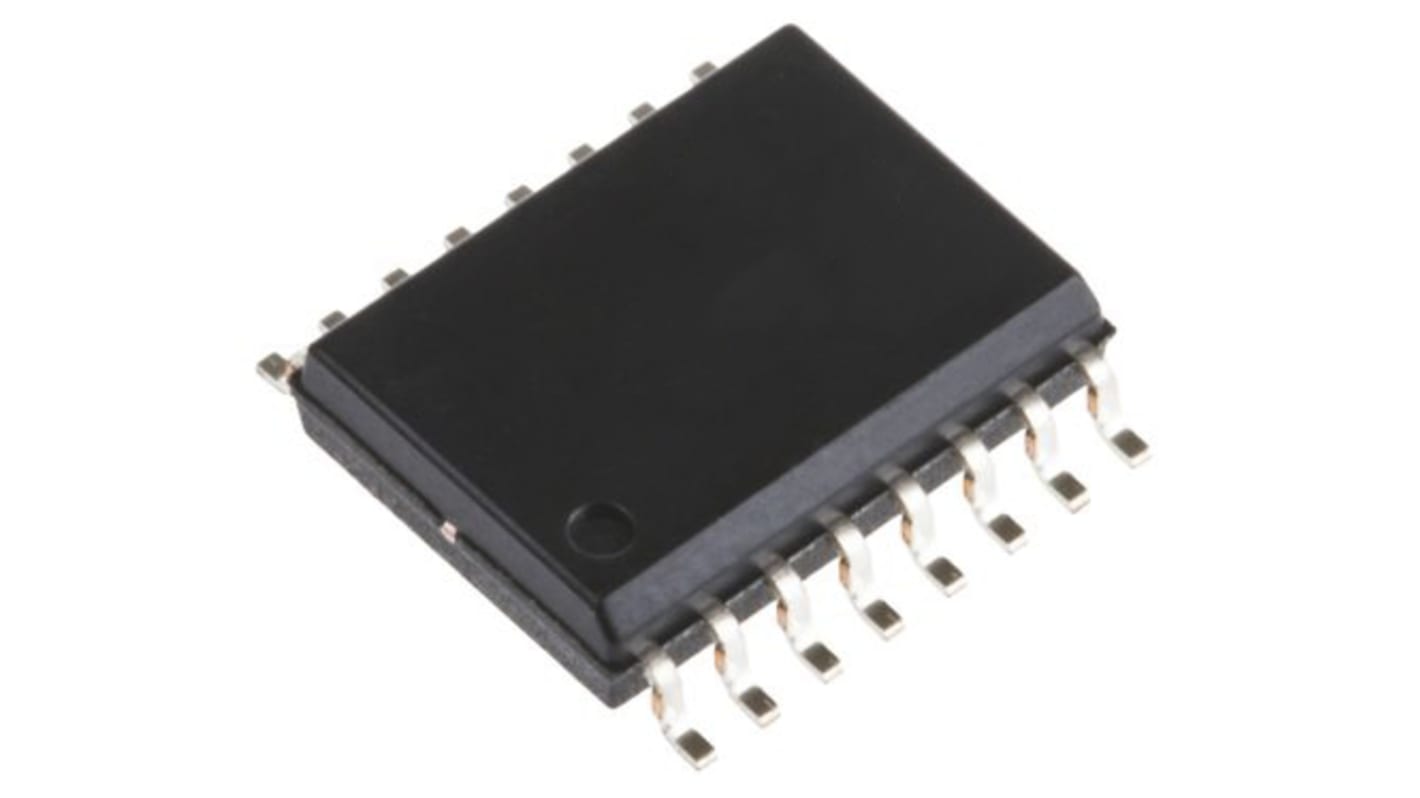

STMicroelectronics STP08DP05MTR SO Display Driver, 16 Pin, 3 → 21 V
- RS Stock No.:
- 188-9223
- Mfr. Part No.:
- STP08DP05MTR
- Manufacturer:
- STMicroelectronics
Temporarily out of stock - back order for despatch 19/09/2024, delivery within 4 working days from despatch date
Added
Price Each (On a Reel of 2500)
MYR3.005
| Units | Per Unit | Per Reel* |
| 2500 + | MYR3.005 | MYR7,512.50 |
| *price indicative | ||
- RS Stock No.:
- 188-9223
- Mfr. Part No.:
- STP08DP05MTR
- Manufacturer:
- STMicroelectronics
Technical data sheets
Legislation and Compliance
Product Details
Low voltage power supply down to 3 V
8 constant current output channels
Adjustable output current through external resistor
Short and open output error detection
Serial data IN/parallel data OUT
3.3 V micro driver-able
Output current: 5-100 mA
30 MHz clock frequency
Available in high thermal efficiency TSSOP exposed pad
8 constant current output channels
Adjustable output current through external resistor
Short and open output error detection
Serial data IN/parallel data OUT
3.3 V micro driver-able
Output current: 5-100 mA
30 MHz clock frequency
Available in high thermal efficiency TSSOP exposed pad
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Package Type | SO |
| Display Type | LED |
| Number of Pins | 16 |
| Supply Voltage | 3 → 21 V |
| Maximum Supply Current | (Off, On) 13.5mA |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Mounting Type | Surface Mount |
| Width | 4mm |
| Height | 1.5mm |
| Length | 10mm |
