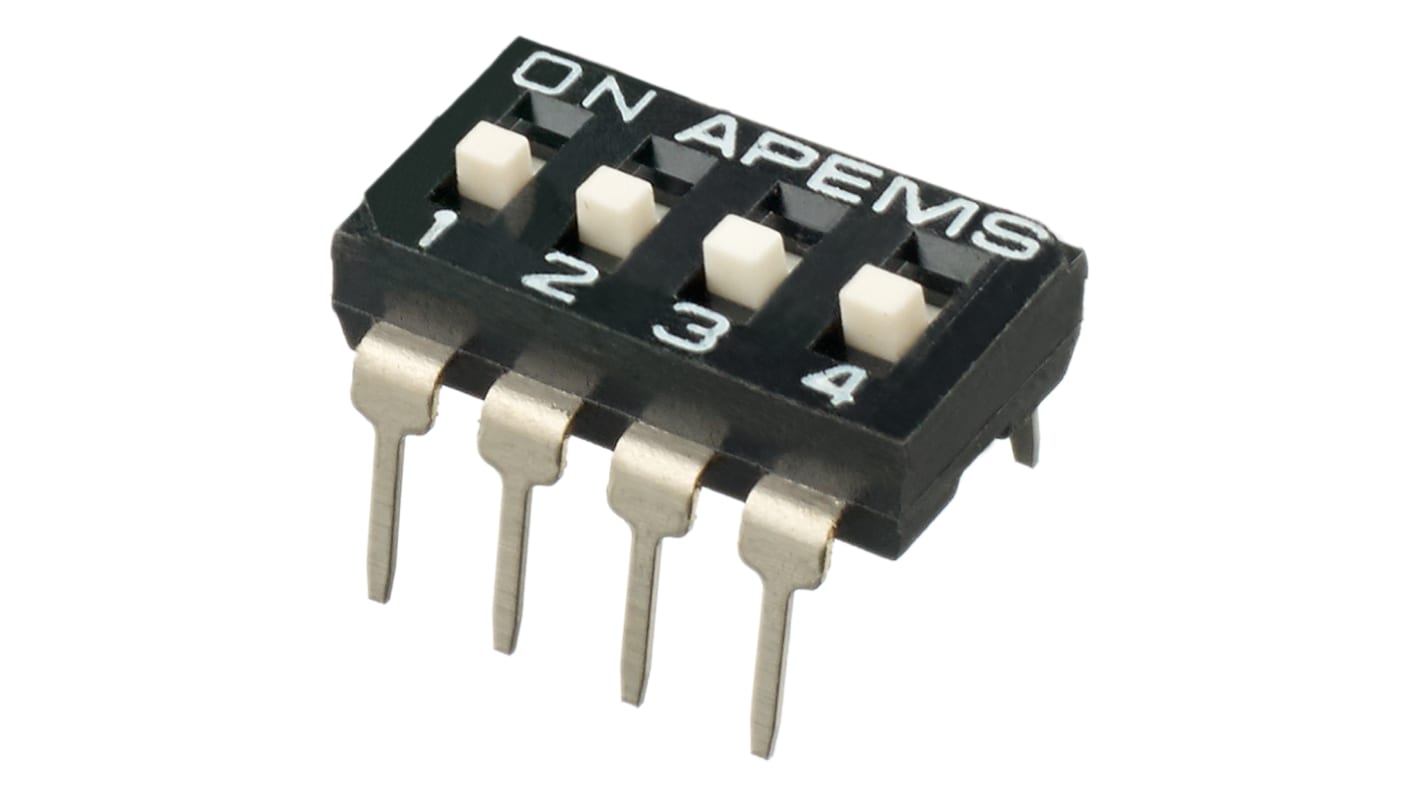

APEM 4 Way Through Hole DIP Switch SPST, Raised Actuator Slide Actuator
- RS Stock No.:
- 877-2176
- Mfr. Part No.:
- IKD0400101
- Manufacturer:
- APEM
75 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
230 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Bag of 5)
MYR6.068
| Units | Per Unit | Per Bag* |
| 5 + | MYR6.068 | MYR30.34 |
| *price indicative | ||
- RS Stock No.:
- 877-2176
- Mfr. Part No.:
- IKD0400101
- Manufacturer:
- APEM
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Apem DIP Switch - IKD Series
The low profile IKD DIP switch is designed for reliable operation with positive detent action. Available 1 to 12 poles, surface mount or through hole mounting
Self cleaning wiping contacts
Gold plated terminals
SMT Gull wing or J bend
Process compatible IP reflow and wave solderable
Gold plated terminals
SMT Gull wing or J bend
Process compatible IP reflow and wave solderable
Dual-In-Line Switches
Sub-miniature switches in a choice of configurations and actions. Note that these switches are not suitable for immersion cleaning unless stated otherwise.
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 4 |
| Mounting Type | Through Hole |
| Contact Configuration | SPST |
| Contact Material | Phosphor Bronze (Moving Contact) |
| Package Style | DIP |
| Actuator Type | Raised Actuator Slide |
| Contact Current Rating | 100 (Non-Switching) mA @ 50 Vdc, 25 (Switching) mA @ 24 V dc |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +85°C |
| Voltage Rating | 24 V dc, 50V dc |
| Dielectric Strength | 500V ac |
