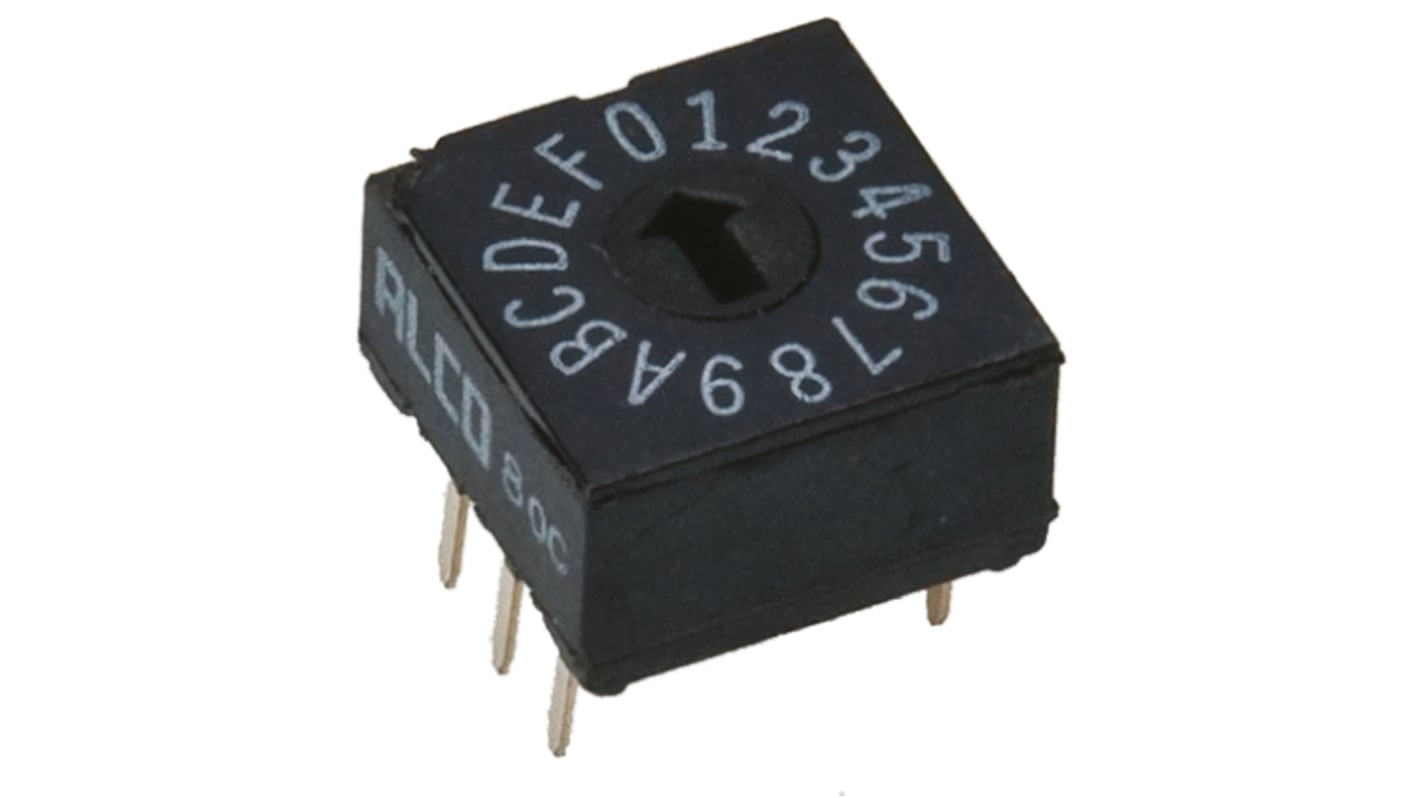

16 Way Through Hole DIP Switch 16P, Rotary Flush Actuator

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Miniature Rotary Encoded Switches

Contact rating: 0.4VA @ 20Vdc max
Contact resistance: 50mΩ max
Life expectancy: 10000 rotations
Temperature range: -30 to +85°C
5-second resistance to wave soldering at 285°C (mounted on 1.5mm card)
Resistant to ultrasound cleaning in a solvent solution, 10% contaminated by fluxing agent
Gold plated contacts


PCB Mounting

Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows

Attribute Value
Contact Configuration 16P
Contact Current Rating 20 mA@ 20 V dc
Contact Material Gold over Nickel Plated Copper Alloy
Number of Positions 16
Mounting Type Through Hole
Actuator Type Rotary Flush
Package Style DIP
Maximum Operating Temperature +85°C
Minimum Operating Temperature -30°C
Operating Temperature Range -30 → +85°C
Dielectric Strength 300V ac
Temporarily out of stock - back order for despatch 05/01/2021, delivery within 4 working days from despatch date
