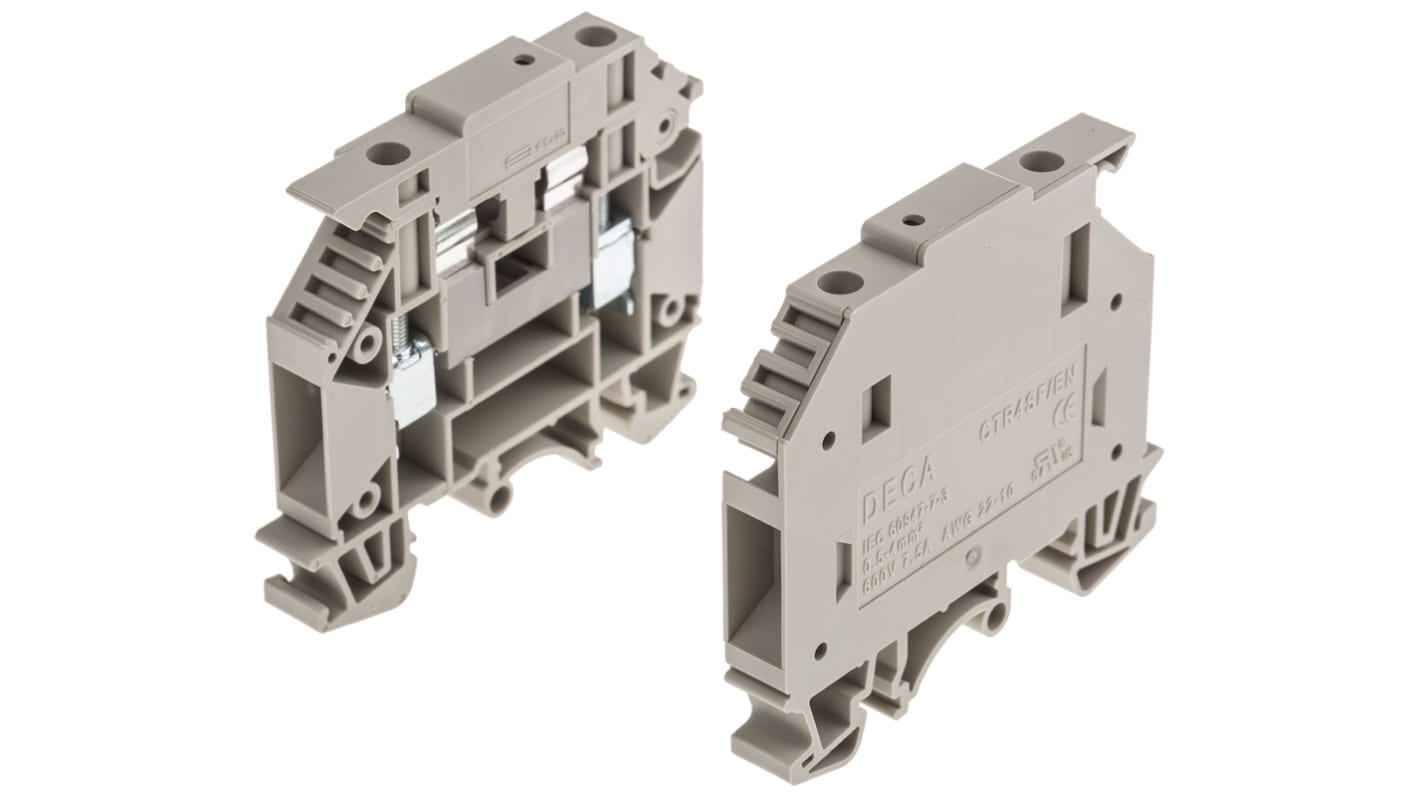

RS PRO, 800 V Disconnect Terminal Block, Screw Clamp Termination

  • RS Stock No. 913-1248
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Screw Disconnect Terminal Blocks

Disconnect screw terminals
High current carrying capacity up to 15A
Space saving design
Suitable for a broad range of wire types
Wires can be connected without any special preparation
Excellent vibration proof protection against screw loosening
Stable with low contact resistance
Easy mounting and dismounting from the DIN rail

Approvals

UL, CSA

Specifications
Attribute Value
Wire Size 22 → 14 AWG
Cable CSA 4mm²
Colour Beige
Current Rating 10 (IEC) A, 15 (CSA) A, 15 (UL) A
Termination Method Screw
Voltage Rating 800 V
60 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 10)
Was MYR8.389
MYR 6.111
units
Per unit
Per Pack*
10 +
MYR6.111
MYR61.11
*price indicative
