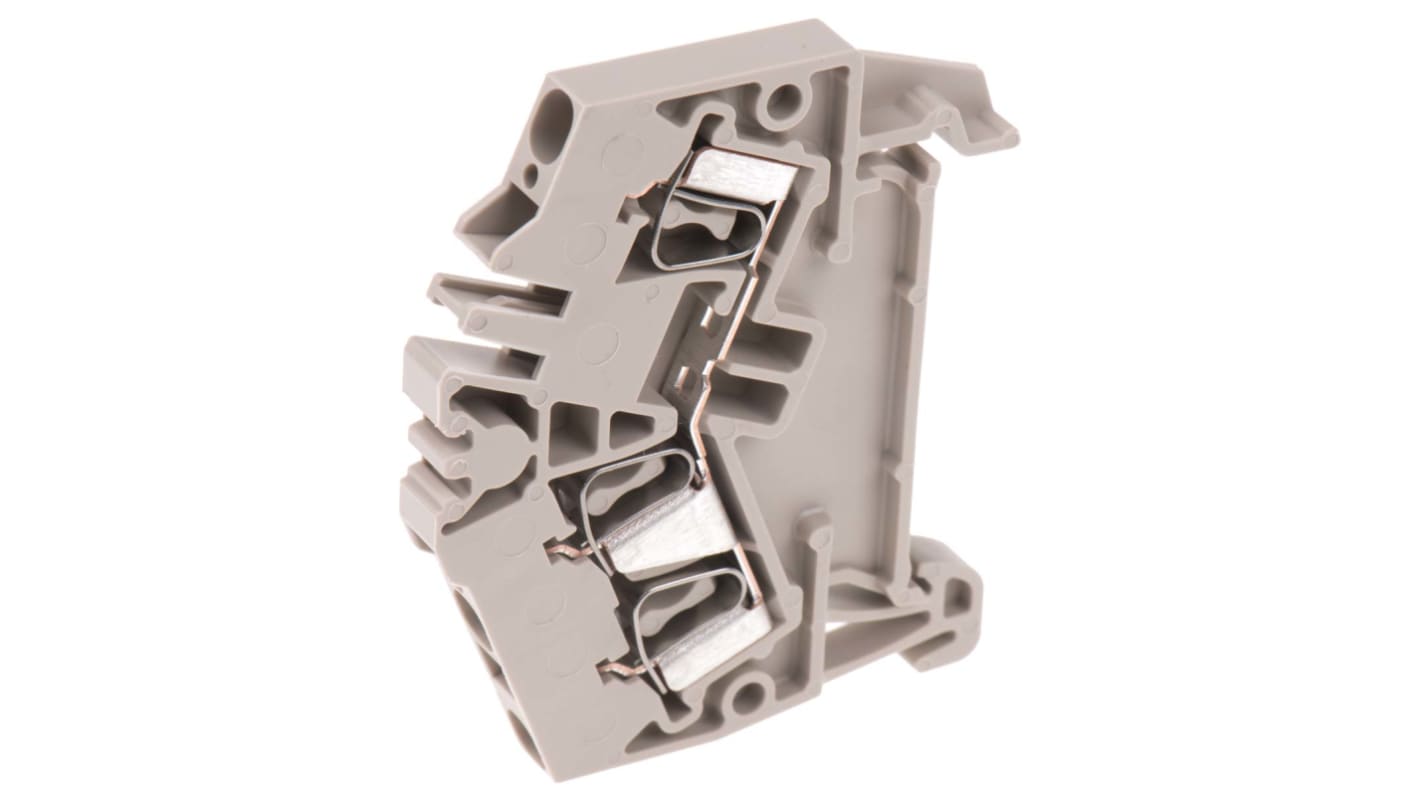

Weidmuller, ZDU Series , 800 V Feed Through Terminal Block, Clamp Termination

  • RS Stock No. 458-7630
  • Mfr. Part No. ZDU 2.5-2/3AN -1706010000
  • Manufacturer Weidmuller
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Weidmuller Feedthrough Terminal Blocks Z Series

Modular terminals with tension clamp connections – the Z-Series – were specially designed to meet customers requirements: compact size, generous marking surfaces, integral test point, cross-connection options within the Z-Series and to other Weidmuller modular terminals.
The Z-Series terminals have a wide clamping range and can accommodate one or two cross-connection channels. The plug-in standard cross-connections enable potentials to be distributed over any number of terminals.

Features and Benefits

• One, two, three and four tier available • Tension clamp technology
• Available in different colours

Approvals

1-7

Specifications
Attribute Value
Series ZDU
Wire Size 26 → 12 AWG
Cable CSA 2.5mm²
Colour Beige
Current Rating 24A
Number of Levels Single
Termination Method Clamp
Voltage Rating 800 V
Minimum Operating Temperature -50°C
Maximum Operating Temperature +120°C
Stock check temporarily unavailable - call for stock availability
Price Each (In a Pack of 5)
MYR 13.92
units
Per unit
Per Pack*
5 +
MYR13.92
MYR69.60
*price indicative
