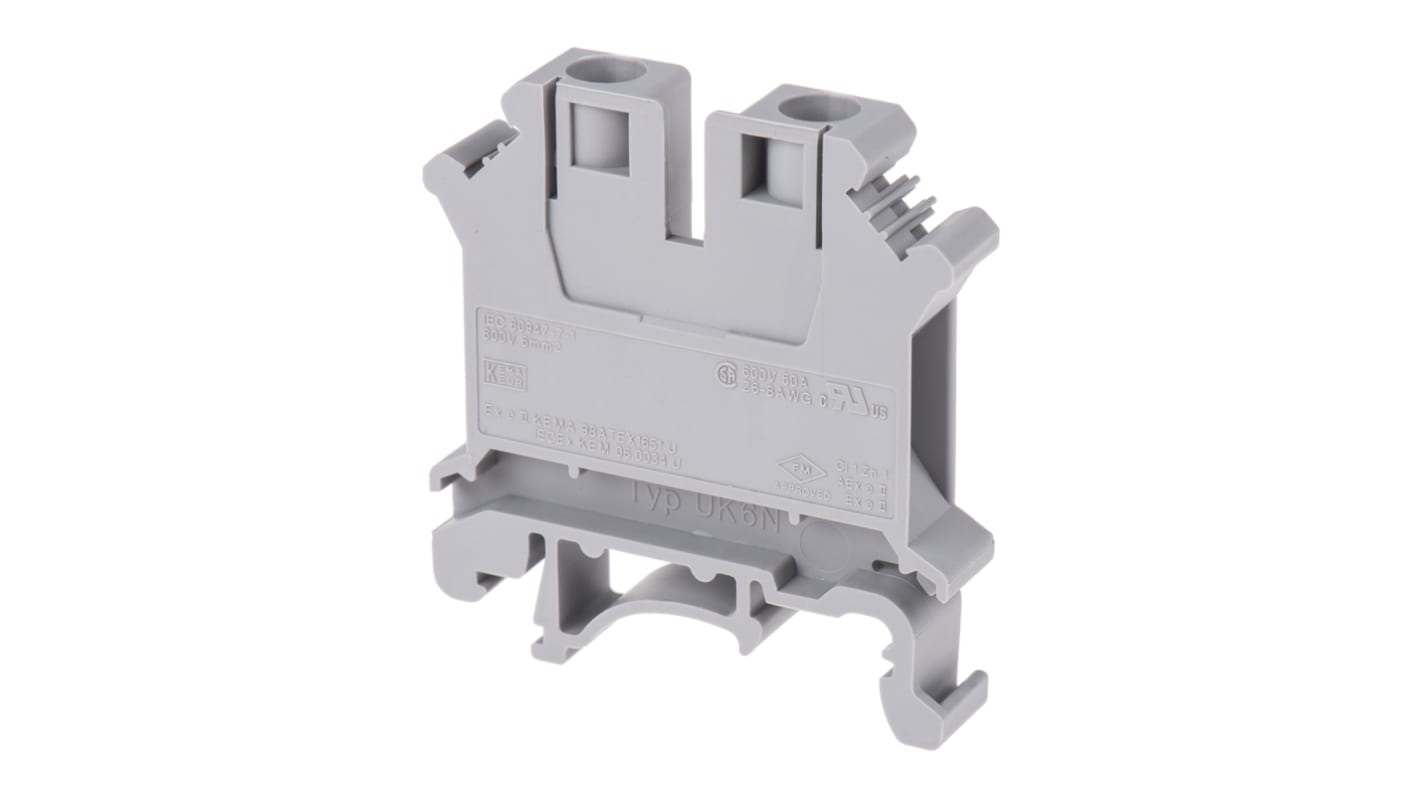

Phoenix Contact ATEX, UK 6 N, 800 V Standard Din Rail Terminal, Screw Termination

Technical data sheets
Legislation and Compliance
Non Compliant
Product Details

Universal Terminals

Universal terminals moulded in polyamide to fit both 'G' and 'Top Hat' rail.
Screw conductor securing with closed screwdriver shafts. Available conductor acceptance sizes, 2.5mm² to 35mm². The range comprises of grey (phase), blue (neutral), and yellow/green (earth) terminals. A 10-way insertion (jumper) bridge is also available, as is a 35mm rail end bracket.

Individual terminals and complementary accessories

Approval Category II 2 GD EEx e II Cert. No. KEMA 98ATEX1651U

Approvals

E Exei/II; KEMA

Specifications
Attribute Value
Series UK 6 N
Wire Size 24 → 8 AWG
Cable CSA 0.2 → 6mm²
Colour Grey
Current Rating 41A
Number of Levels Single
Termination Method Screw
Voltage Rating 800 V
Hazardous Area Certification ATEX
280 Within 2 working day(s)
330 Within 4 working day(s) (Global stock)
Price Each (In a Pack of 10)
MYR 14.621
units
Per unit
Per Pack*
10 - 90
MYR14.621
MYR146.21
100 - 240
MYR14.093
MYR140.93
250 +
MYR13.701
MYR137.01
*price indicative
