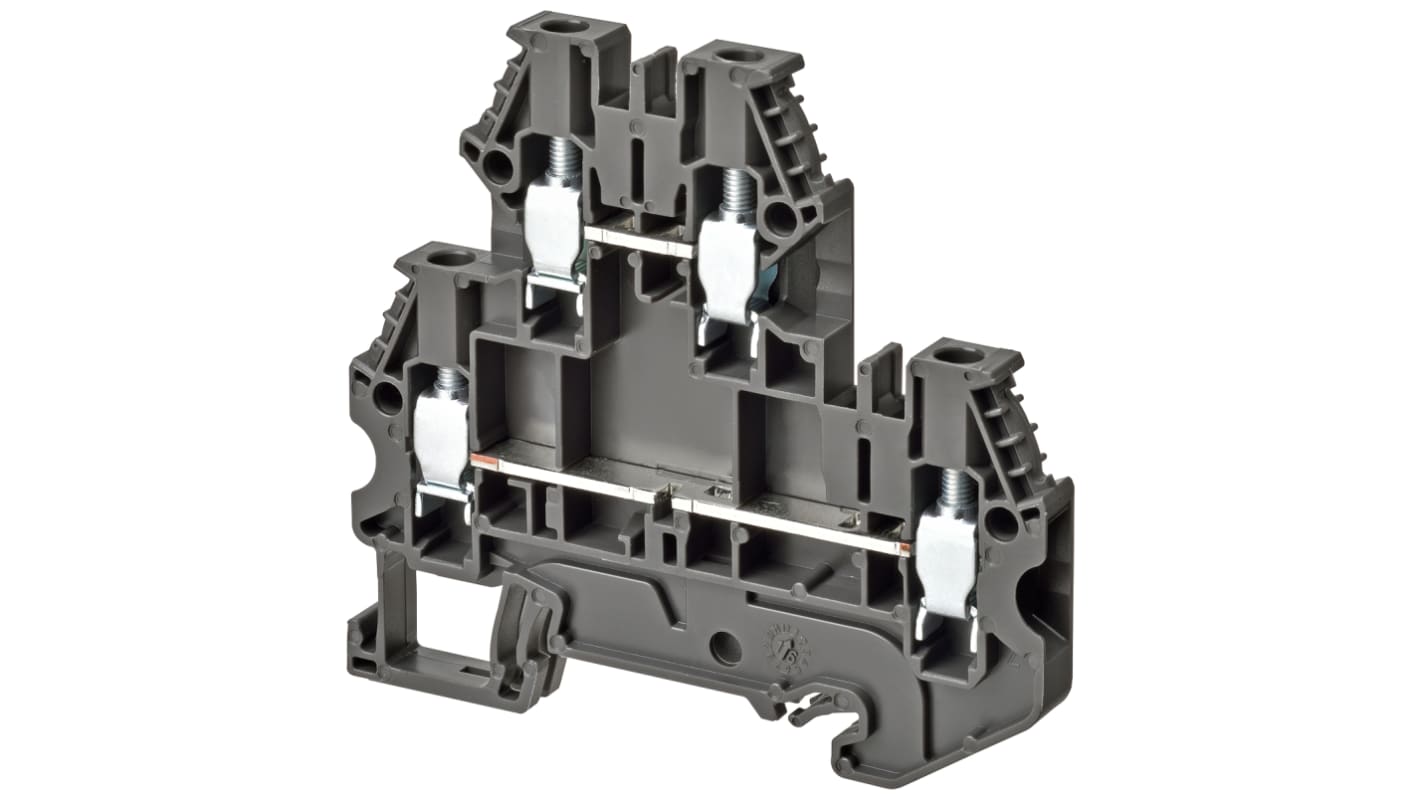

Omron, XW5T, 800 V Screw Terminal, Screw Termination

  • RS Stock No. 123-7896
  • Mfr. Part No. XW5T-S4.0-1.1-2
  • Manufacturer Omron
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

DIN Rail Screw Terminal- XW5T-S & XW5G-S Series

DIN Rail grounding terminal blocks are a great solution for space saving and downsizing in control panels, due to their compact size of 3.5 mm width. The XW5G series terminal blocks are easy to install and wires are held firmly and securely in place.

Features and Benefits

• Slim 3.5 mm width
• Wires held with screws
• Light insertion force and strong holding strength for less wiring work and high reliability
• Hands-free structure that holds an inserted screwdriver to achieve easier wiring in comparison to attaching crimp terminals
• 1 or 2 tier models available

DIN Rail Terminal Blocks

Specifications
Attribute Value
Series XW5T
Wire Size 20 → 12 (with Ferrule) AWG, 26 → 10 AWG
Cable CSA 4mm²
Colour Grey
Current Rating 30 (UL) A, 32 (IEC) A
Number of Levels Double
Termination Method Screw
Voltage Rating 800 V
Minimum Operating Temperature -40°C
Maximum Operating Temperature +55°C
30 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 10)
MYR 7.311
units
Per unit
Per Pack*
10 +
MYR7.311
MYR73.11
*price indicative
