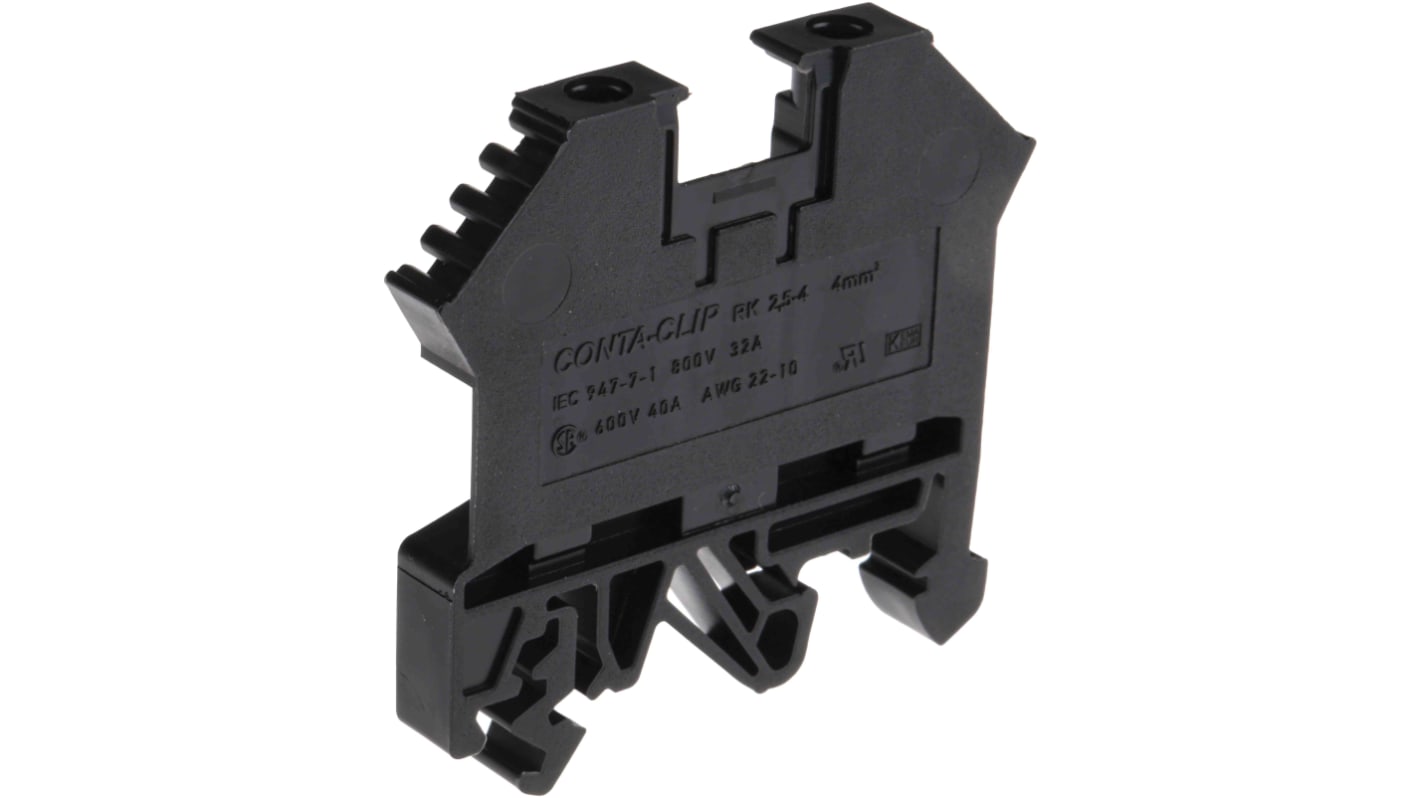

RS PRO, 800 V Standard Din Rail Terminal

  • RS Stock No. 501-645
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Coloured Terminals

Identify signals or voltages easilyTerminal colours match incoming cables, reducing wiring errorThree phase systems are always wired consistently

An additional selection of 2.5 and 4mm² terminals in useful colours including the newphase colours black, brown and grey, as well as white, orange, yellow and red

Note

Please see jumper bars for compatibility and range or use our datasheet guide.

Approvals

UL, CSA, NEMKO, GOST

Approvals

UL, CSA

Specifications
Attribute Value
Wire Size 0.2 → 4 mm²
Cable CSA 0.2 → 4mm²
Colour Black
Current Rating 32A
Number of Levels Single
Voltage Rating 800 V
Minimum Operating Temperature -40°C
Maximum Operating Temperature +105°C
1520 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 10)
Was MYR3.498
MYR 3.462
units
Per unit
Per Pack*
10 +
MYR3.462
MYR34.62
*price indicative
