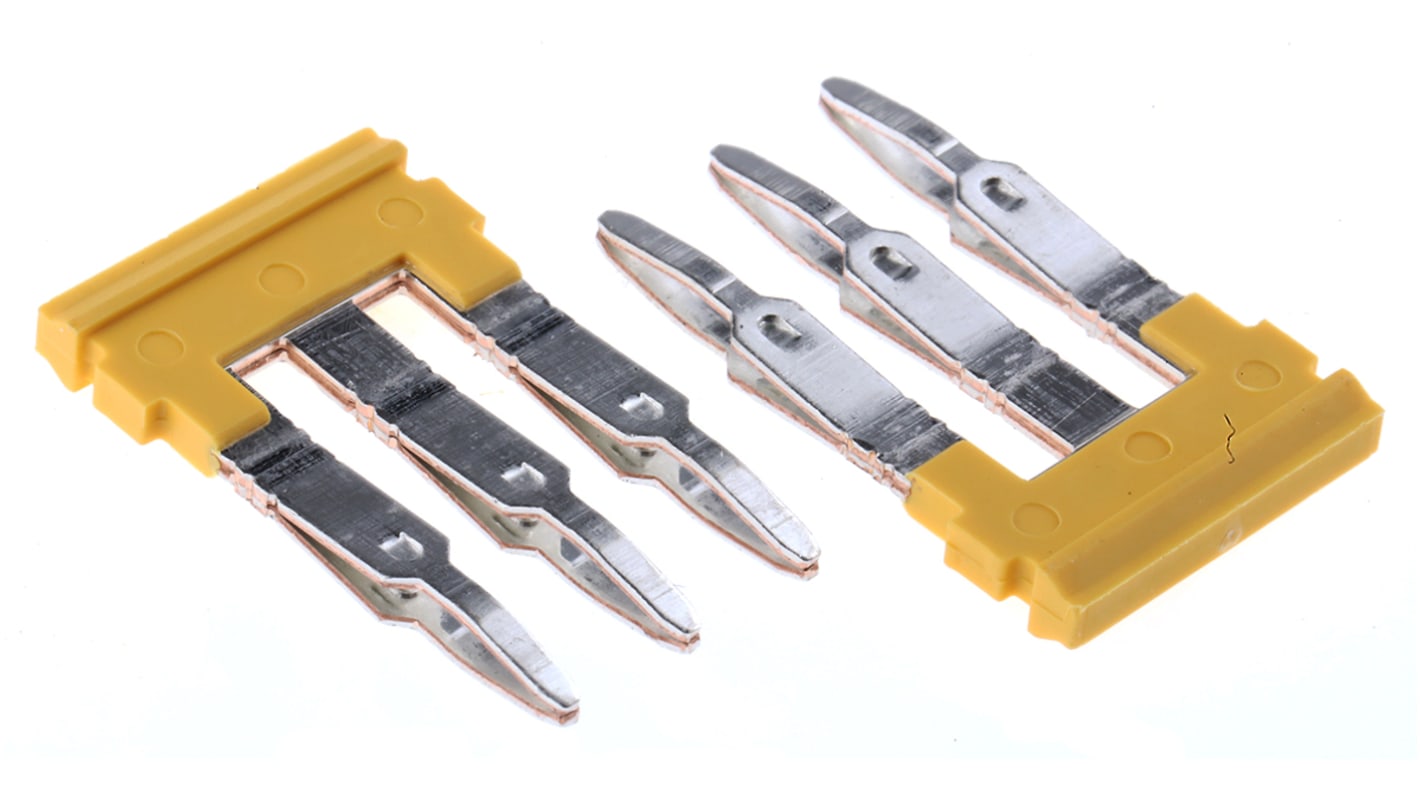

Weidmuller, 3-Pole Jumper Bar, ZQV Series

  • RS Stock No. 179-569
  • Mfr. Part No. 1693810000
  • Manufacturer Weidmuller
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Neutral terminal blocks for TS 35 rails

Feed-through Screw terminal blocks for cables with cross section 2.5 to 35 mm². The terminals are equipped with integral anti-slackening protection and guarantee reliable connection in all low voltage installations.

Features and Benefits

• Low profile range of terminals that enables transition from a height of 47 mm for standard versions to 37.5 mm
• Mounted in TS 35 type DIN Rails with a depth of 7.5 mm or 15 mm
• The nominal characteristics are defined in accordance with VDE 0611

Specifications
Attribute Value
Accessory Type 3-Pole Jumper Bar
Series ZQV
For Use With Terminal Block
58 In Global stock for delivery within 4 - 6 working days
Price 1 Box of 5
MYR 41.15
Box(es)
Per Box
Per unit*
1 +
MYR41.15
MYR8.23
*price indicative
