Weidmüller PRO MAX Switched Mode DIN Rail Power Supply, 320 → 575 V ac / 450 → 800V dc ac, dc Input, 24V
- RS Stock No.:
- 923-6567
- Mfr. Part No.:
- 1478170000
- Manufacturer:
- Weidmüller
15 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR834.37
| Units | Per Unit |
| 1 + | MYR834.37 |
- RS Stock No.:
- 923-6567
- Mfr. Part No.:
- 1478170000
- Manufacturer:
- Weidmüller
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details

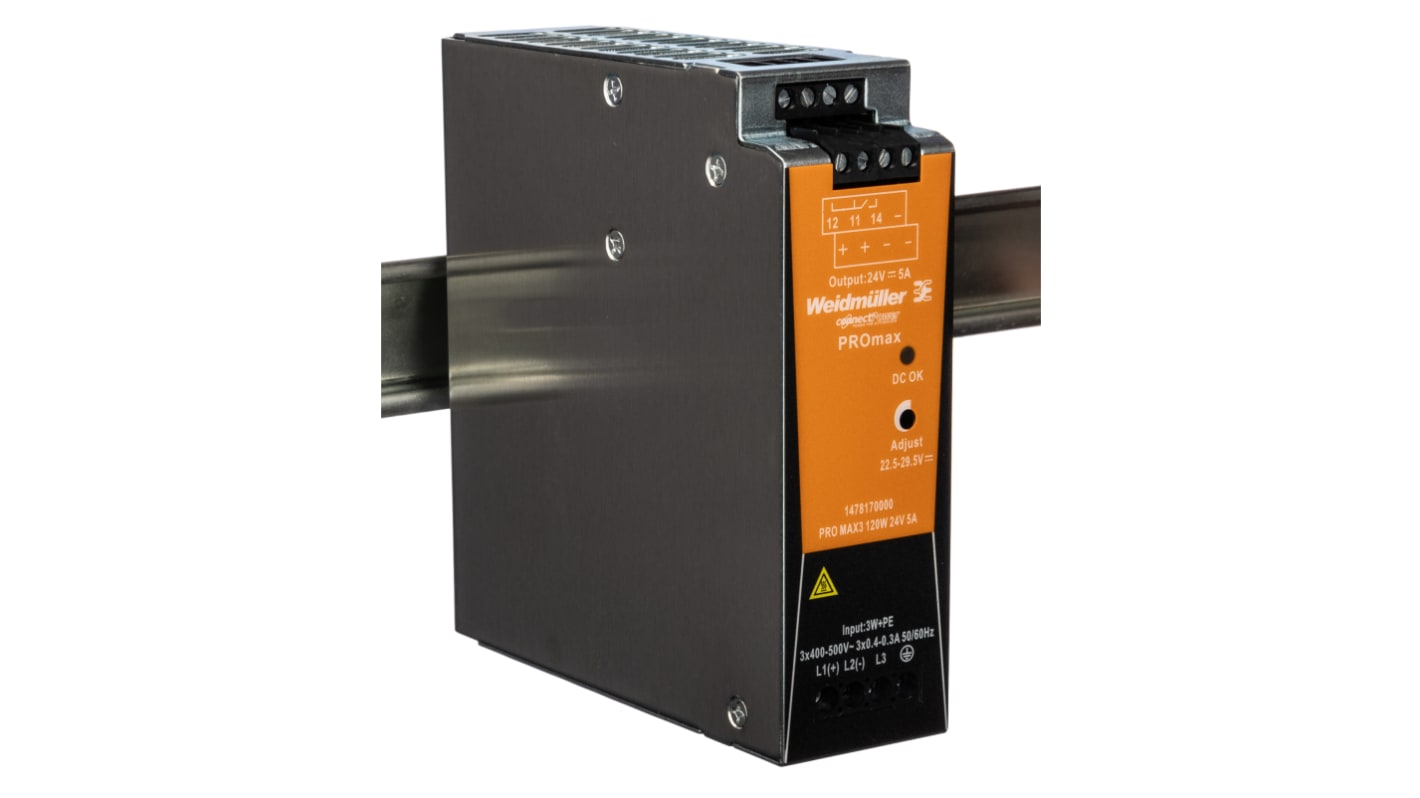

Weidmuller DIN Rail Power Supply, 3 Phases, 24V DC Output Voltage - PRO MAX Series - 1478170000
Get on the fast track to a versatile energy solution with this DIN rail power supply from Weidmuller. It's a switch-mode version that converts electricity efficiently using a switching regulator. The device has a wide input voltage between 320V and 575V AC for versatility. An output voltage of 24V DC means it does the trick in low-voltage applications. Thanks to its power rating of 120W, you can safely use this product with high-powered equipment.
Features & Benefits
• Built-in overcurrent protection to safeguard your equipment against damage
• High efficiency of 90% keeps energy usage down and minimises heat waste
• Designed for DIN rail mounting to make installation a breeze
• Compact dimensions of 130 (H) x 40 (W) x 125mm (D) for installation in areas where space is at a premium
• High efficiency of 90% keeps energy usage down and minimises heat waste
• Designed for DIN rail mounting to make installation a breeze
• Compact dimensions of 130 (H) x 40 (W) x 125mm (D) for installation in areas where space is at a premium
Applications
• Industrial automation equipment
• Engineering workshops
• Production lines
• Engineering workshops
• Production lines
Can I use this power supply in harsh environments?
Yes, it has a broad operating temperature range between -25°C and +70°C, so it can stand up to use in extreme conditions.
Specifications
Attribute | Value |
|---|---|
| Type | Switched Mode |
| Output Voltage | 24V dc |
| Output Current | 5A |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 320 → 575 V ac / 450 → 800V dc |
| Power Rating | 120W |
| Electrical Phase | 3 |
| Number of Outputs | 1 |
| Height | 130mm |
| Width | 40mm |
| Depth | 125mm |
| Series | PRO MAX |
| Efficiency | 90% |
| Minimum Temperature | -25°C |
| Output Voltage Adjustment Range | 29.5V |
| Ripple And Noise | <50mV |
| Maximum Temperature | +70°C |
| Standards Met | 61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, cULus Recognized, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61204, IEC 61558-2-16, TUV, VDE 0100-410/DIN57100-410, VDE 0106-101 |
| Mounting Type | DIN Rail Mount |
| Special Features | Durable, High Performance |
| MTBF | >500000h |
