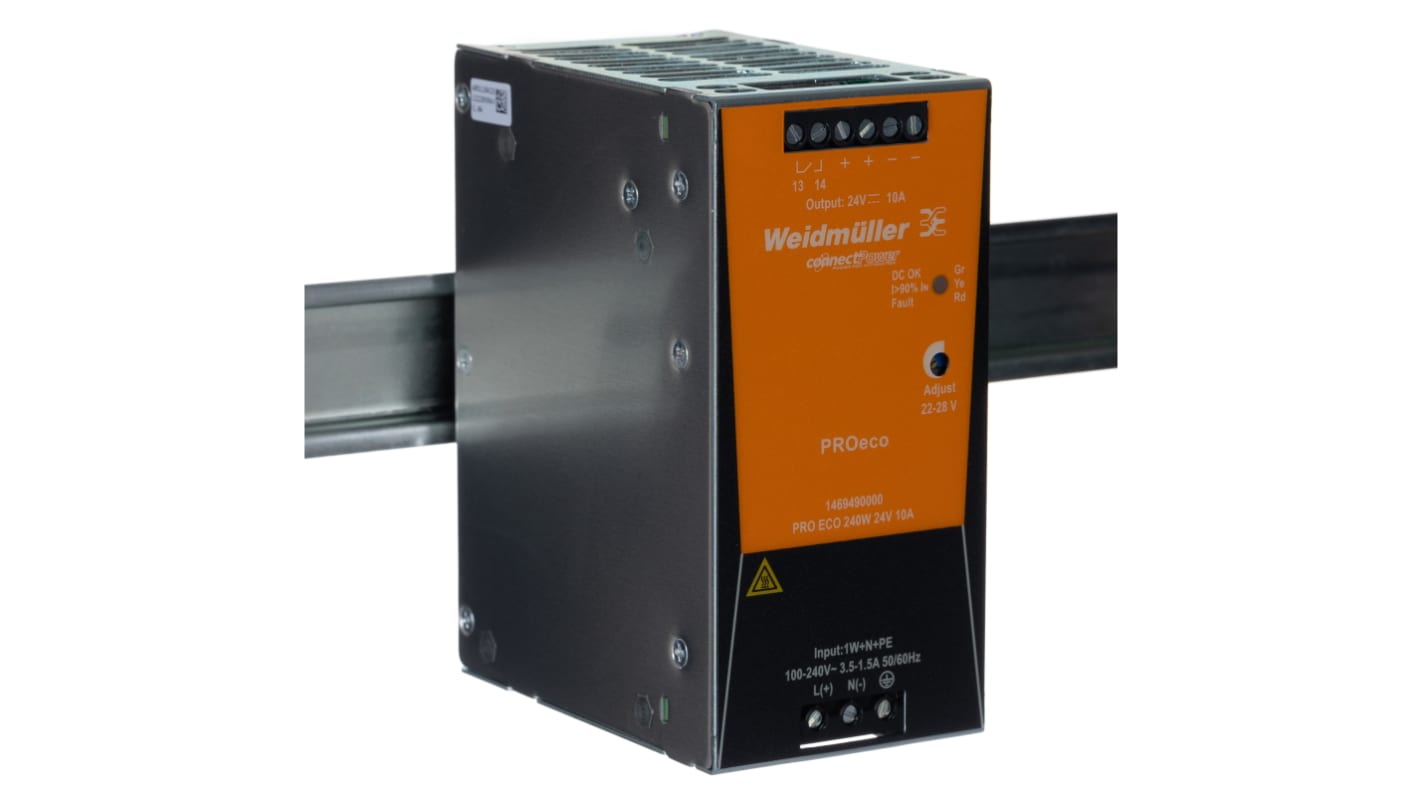

Weidmuller, PRO ECO DIN Rail Power Supply, 24V dc Output Voltage, 10A Output Current

  • RS Stock No. 923-6504
  • Mfr. Part No. 1469490000
  • Manufacturer Weidmuller
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

PROeco Series

Professional range of Weidmuller power supply units and diode modules from the PROeco series. The power supplies have a long service life due to the high degree of efficiency and minimal no-load loss that ensures low energy consumption. All the power supplies versions incorporate tricolour LED displays that allows the operators to analyse statuses and errors while commissioning and operation. Delivering high performance, flexibility and system suitability is the reason these power supplies can be used in either automation technologies or series machine construction. Available in nine separate 24 V dc variants. The power supplies can be used in virtually any application thanks to their temperature protection, short circuit strength and overload resistance.

Reliable
Efficient
Robust
Nine seperate 24 Vdc variants

Approvals

CE, TUV (EN/IEC 60950-1)

Switch Mode - Weidmuller

Specifications
Attribute Value
AC or DC Input Voltage Ac, Dc
AC or DC Output Voltage Dc
Input Voltage 85 → 264V ac
Output Voltage 24 V dc
Output Current 10 A
Power Rating 240W
Number of Outputs 1
Electrical Phase 1
Height 125mm
Width 60mm
Mounting Type DIN Rail Mount
MTBF >500000h
Minimum Temperature -25°C
Series PRO ECO
Special Features Compact Size, Easy to Maintain, Flexible, High Efficiency
Standards Met CE Certified, CULus Listed, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, VDE 0100-410/DIN57100-410, VDE 0106-101, 61000-4-4, 61000-4-5, 61000-4-6
Maximum Temperature +70°C
Ripple And Noise <50mV
Depth 100mm
49 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 1,071.21
units
Per unit
1 +
MYR1,071.21
