- RS Stock No.:
- 896-2224
- Mfr. Part No.:
- AMR2-05
- Manufacturer:
- Chinfa
192 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR214.86
Units | Per Unit |
1 + | MYR214.86 |
- RS Stock No.:
- 896-2224
- Mfr. Part No.:
- AMR2-05
- Manufacturer:
- Chinfa
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

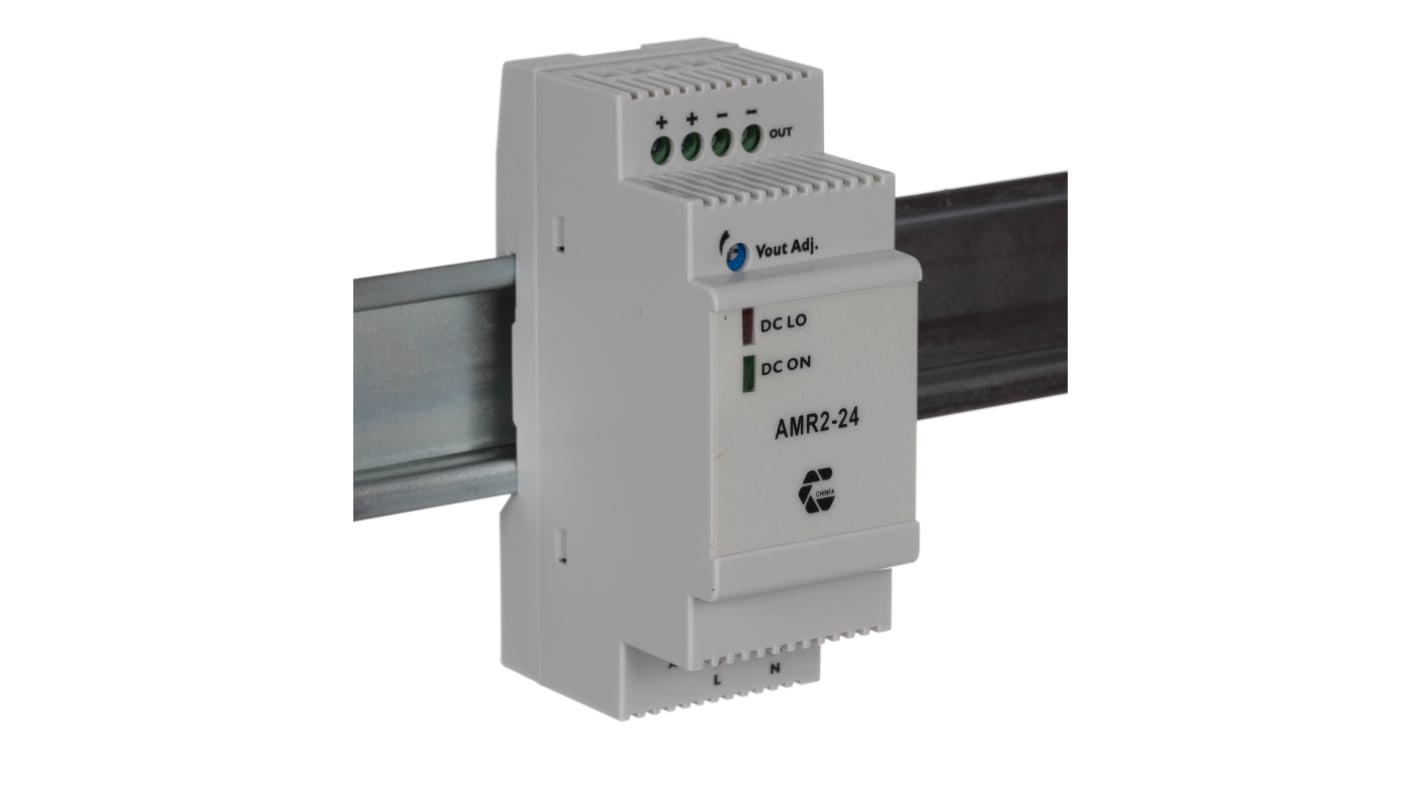

CHINFA DIN Rail Power Supply
The CHINFA DIN Rail AMR2 series power supply has a universal input voltage ranging between 90VAC and 264VAC/120VDC and 375VDC. This is a cost-effective power supply that is specifically designed with uncompromised quality and reliability for high-performance. Its output current rating is 3A at 5VDC output voltage.
Features and Benefits
High efficiency of 82%
Internal input filter
MTBF is 866000 hours
Operating temperature ranging between -40°C and 71°C
Power rating is up to 15W
Regulated outputs
Ripple factor and noise is 50mV
Short circuit protection
Internal input filter
MTBF is 866000 hours
Operating temperature ranging between -40°C and 71°C
Power rating is up to 15W
Regulated outputs
Ripple factor and noise is 50mV
Short circuit protection
Applications
Building control systems
Electromagnetic drives
Factory automation
Industrial controls
Instrumentation
Electromagnetic drives
Factory automation
Industrial controls
Instrumentation
Certifications
CE certified
cUL
TUV
UL approved
cUL
TUV
UL approved
Specifications
Attribute | Value |
---|---|
Output Voltage | 5V dc |
Output Current | 3A |
AC or DC Input Voltage | ac |
AC or DC Output Voltage | dc |
Input Voltage | 90 → 264V ac |
Power Rating | 15W |
Electrical Phase | 1 |
Number of Outputs | 1 |
Height | 91mm |
Width | 35mm |
Depth | 57mm |
Series | AMR2 |
Maximum Temperature | +71°C |
Special Features | Internal Input Filter |
Standards Met | EN 55032, EN 62368-1, UL 62368-1, UL508 |
Ripple And Noise | 50mV |
Minimum Temperature | -40°C |
Mounting Type | DIN Rail Mount |
MTBF | 866000h |
