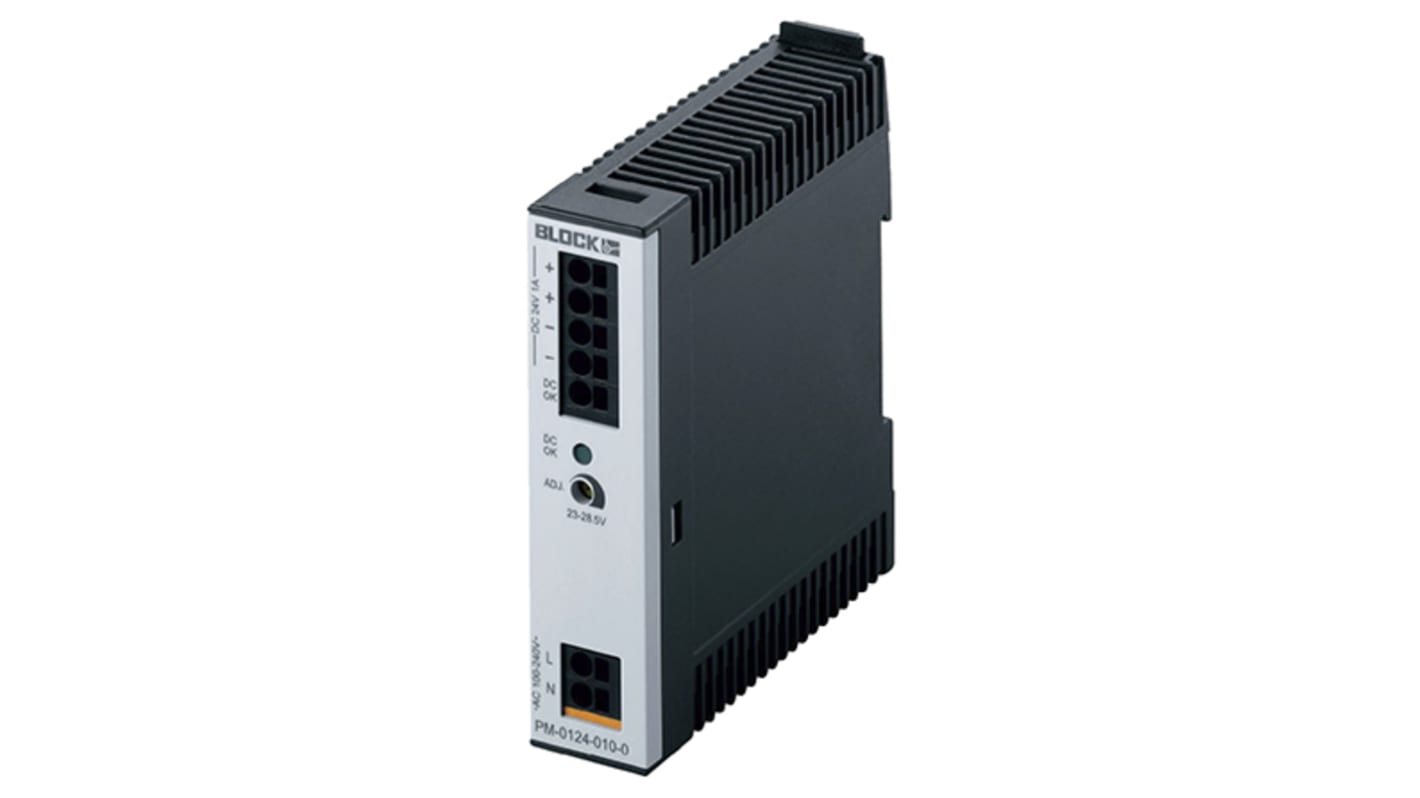

Block PM Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 120 → 373V dc ac, dc Input, 24V dc dc
- RS Stock No.:
- 893-7840
- Mfr. Part No.:
- PM-0124-010-0
- Manufacturer:
- Block
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
Was MYR490.17
You pay
MYR465.66
| Units | Per Unit |
| 1 + | MYR465.66 |
- RS Stock No.:
- 893-7840
- Mfr. Part No.:
- PM-0124-010-0
- Manufacturer:
- Block
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Power Mini Series
Efficient, primary switched mode power supply in slim plastic housing.
These power supply units are suitable for a highly diverse range of applications in solar, measurement and control technology as well as industrial and building automation.
The devices cover the lower and average power requirements from 25 W to 100 W.
All power supplies also comply with the EN 60335-1 standard for domestic appliances. The output voltage can be easily set using the rotary potentiometer on the front of the housing.
The DIN rail fastening method and push-in connection terminals enable fast and secure mounting
These power supply units are suitable for a highly diverse range of applications in solar, measurement and control technology as well as industrial and building automation.
The devices cover the lower and average power requirements from 25 W to 100 W.
All power supplies also comply with the EN 60335-1 standard for domestic appliances. The output voltage can be easily set using the rotary potentiometer on the front of the housing.
The DIN rail fastening method and push-in connection terminals enable fast and secure mounting
Advantages
Stabilised and adjustable output voltage
Low stand-by consumption <1 W
Constant current characteristic
DC OK signalling
Parallel operation option
Push-in terminals
Panel installation on mounting rails
Conform to EN 60335-1
Approvals GL (Lloyds registered) cURus, cULus
Low stand-by consumption <1 W
Constant current characteristic
DC OK signalling
Parallel operation option
Push-in terminals
Panel installation on mounting rails
Conform to EN 60335-1
Approvals GL (Lloyds registered) cURus, cULus
Specifications
Attribute | Value |
|---|---|
| Type | Switched Mode |
| Output Voltage | 24V dc |
| Output Current | 1A |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 264 V ac / 120 → 373V dc |
| Power Rating | 24W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 90mm |
| Width | 225mm |
| Depth | 91mm |
| Series | PM |
| Special Features | Constant Current Characteristic, Push-In Terminals, Stabilised and Adjustable Output Voltage |
| Ripple And Noise | 20mV Pk-Pk |
| Efficiency | 86.0% |
| Minimum Temperature | -25°C |
| Output Voltage Adjustment Range | 23.0 to 28.5V |
| Standards Met | cULus, cURus, EN, GL, UL, UL/CSA |
| Maximum Temperature | +70°C |
| Mounting Type | DIN Rail Mount |
