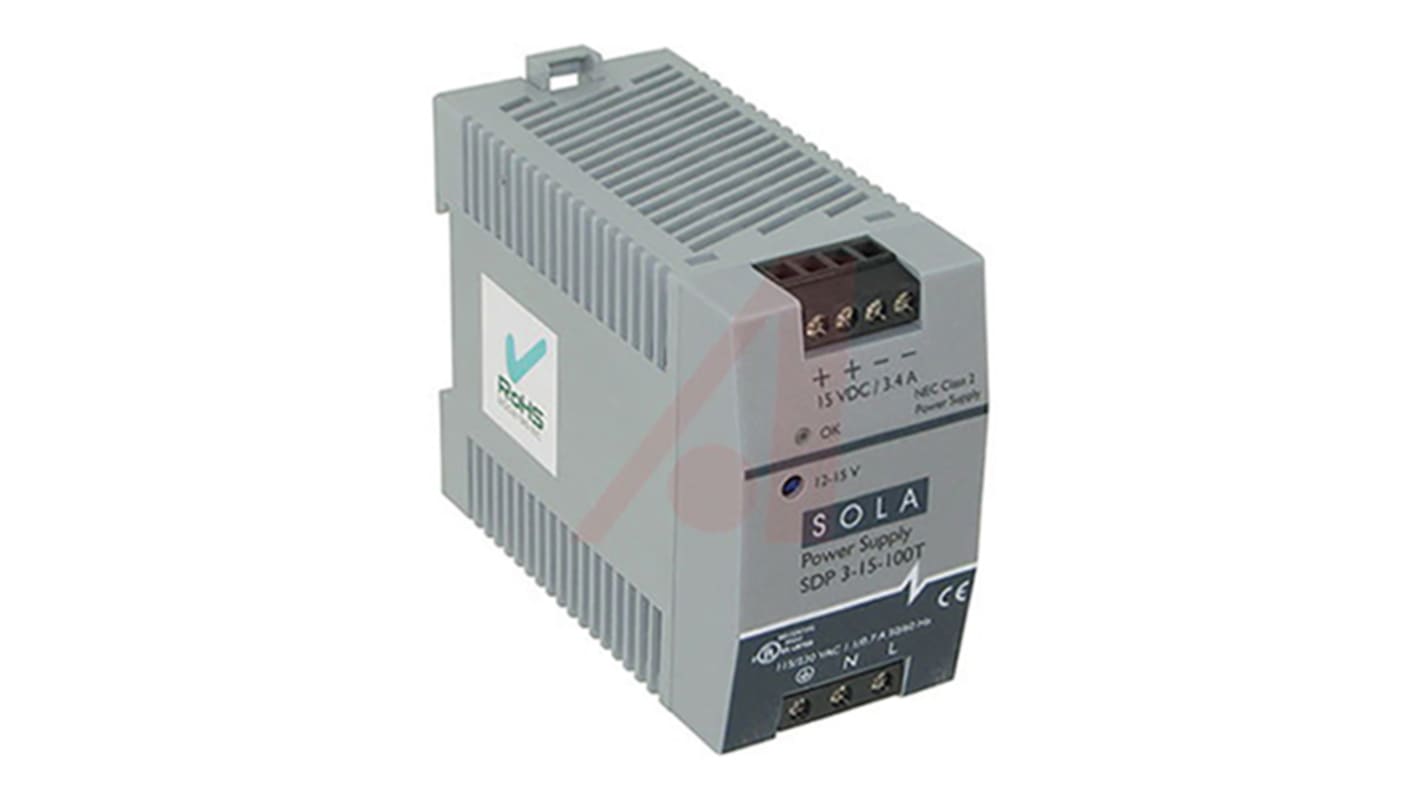

Sola SDP Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 90 → 375V dc ac, dc Input, 15V dc dc
- RS Stock No.:
- 890-8974
- Mfr. Part No.:
- SDP3-15-100T
- Manufacturer:
- Sola
7 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,344.25
| Units | Per Unit |
| 1 + | MYR1,344.25 |
- RS Stock No.:
- 890-8974
- Mfr. Part No.:
- SDP3-15-100T
- Manufacturer:
- Sola
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
SolaHD Compact Power Supplies - SDP Series
SolaHD DIN Rail power supplies. The compact, efficient units are designed specifically for industrial environments. Many industry extras are standard for the SDP series. PowerBoost™ overload circuitry can start up industrial loads (motors, relays, solenoids & DC-DC converters), that can cause ordinary power supplies to fold back or shutdown. Each unit contains a DC indicator and front panel adjustment potentiometer. The power supplies come in a range of output voltages from 5 V dc to 48 V dc and power ratings of up to 100 Watts.
Typical applications include: Process Control, Building Automation, Industrial Control, Machine Control and Instrumentation.
Typical applications include: Process Control, Building Automation, Industrial Control, Machine Control and Instrumentation.
PowerBoost™ industrial overload design
Continuous short circuit protection
Compact 15 W footprint
No tools required for mounting
Low output noise
Screw terminal connections
Efficiency: 80%
Operating temperature range: -10⁰C → 60⁰C
Continuous short circuit protection
Compact 15 W footprint
No tools required for mounting
Low output noise
Screw terminal connections
Efficiency: 80%
Operating temperature range: -10⁰C → 60⁰C
Specifications
Attribute | Value |
|---|---|
| Type | Switched Mode |
| Output Voltage | 15V dc |
| Output Current | 3.4A |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 264 V ac / 90 → 375V dc |
| Power Rating | 51W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 75mm |
| Width | 75mm |
| Depth | 91mm |
| Series | SDP |
| MTBF | >500000h |
| Special Features | Continuous Short Circuit Protection, Low Output Noise |
| Maximum Temperature | +60°C |
| Standards Met | CE, cRUus, cULus, RoHS Compliant |
| Minimum Temperature | -10°C |
| Ripple And Noise | <50mV Pk-Pk |
| Mounting Type | DIN Rail Mount |
