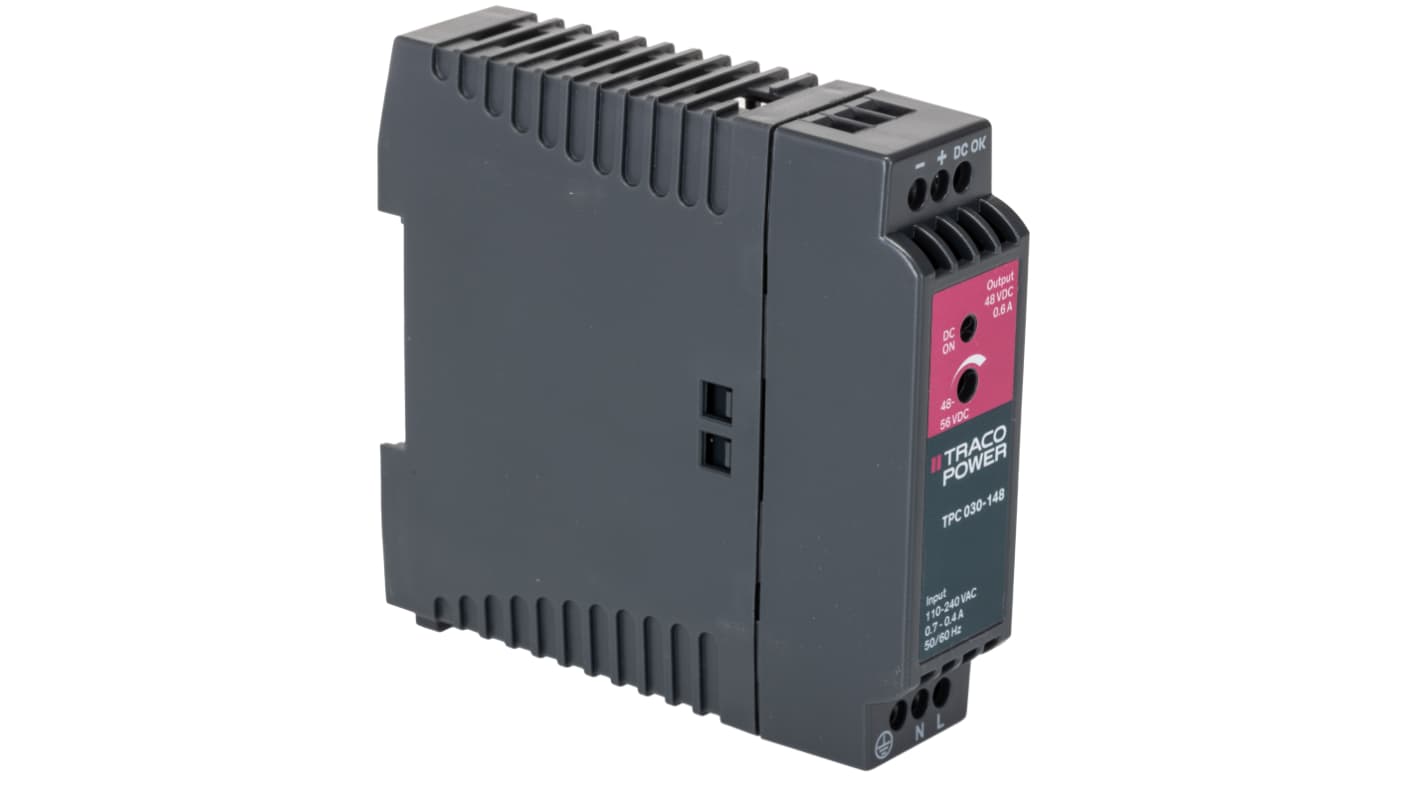

TRACOPOWER TPC Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 90 → 375V dc ac, dc Input, 48V dc dc
- RS Stock No.:
- 808-6658
- Mfr. Part No.:
- TPC 030-148
- Manufacturer:
- TRACOPOWER
103 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR256.66
| Units | Per Unit |
| 1 + | MYR256.66 |
- RS Stock No.:
- 808-6658
- Mfr. Part No.:
- TPC 030-148
- Manufacturer:
- TRACOPOWER
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
TPC Series 20 W to 120 W
The TPC series is a family of DIN Rail power supplies operating with high efficiency to comply with the requirements of the European Ecodesign directive.
These DIN Rail PSUs have universal input of 85 V ac to 264 V ac or 90 V dc to 375 V dc and are designed for class 1 operation.
With the optional active current sharing redundancy module, these power supplies provide a reliable true redundant DC supply.
With the optional redundancy modules, the power supplies are able to achieve a reliable redundant DC supply.
In normal operation, the module achieves equal current share for both power supplies connected. If one of the power supplies fails, the output power is provided in full by the remaining operating power supply.
These DIN Rail PSUs have universal input of 85 V ac to 264 V ac or 90 V dc to 375 V dc and are designed for class 1 operation.
With the optional active current sharing redundancy module, these power supplies provide a reliable true redundant DC supply.
With the optional redundancy modules, the power supplies are able to achieve a reliable redundant DC supply.
In normal operation, the module achieves equal current share for both power supplies connected. If one of the power supplies fails, the output power is provided in full by the remaining operating power supply.
Features and Benefits
• High efficiency across full load range
• Output voltage adjustable
• Low ripple and noise
• Overload and short circuit protection
• Compact plastic case
• DIN Rail mountable
• Output voltage adjustable
• Low ripple and noise
• Overload and short circuit protection
• Compact plastic case
• DIN Rail mountable
Product Application Information
For use in industrial, office and residential environments.
Note
Specifications
Attribute | Value |
|---|---|
| Type | Switched Mode |
| Output Voltage | 48V dc |
| Output Current | 600mA |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 264 V ac / 90 → 375V dc |
| Power Rating | 30W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 90mm |
| Width | 45mm |
| Depth | 96.5mm |
| Series | TPC |
| Maximum Temperature | +70°C |
| Load Regulation | 0.5% |
| MTBF | >2.2 Millionh |
| Minimum Temperature | -25°C |
| Ripple And Noise | 100mV Pk-Pk |
| Mounting Type | DIN Rail Mount |
