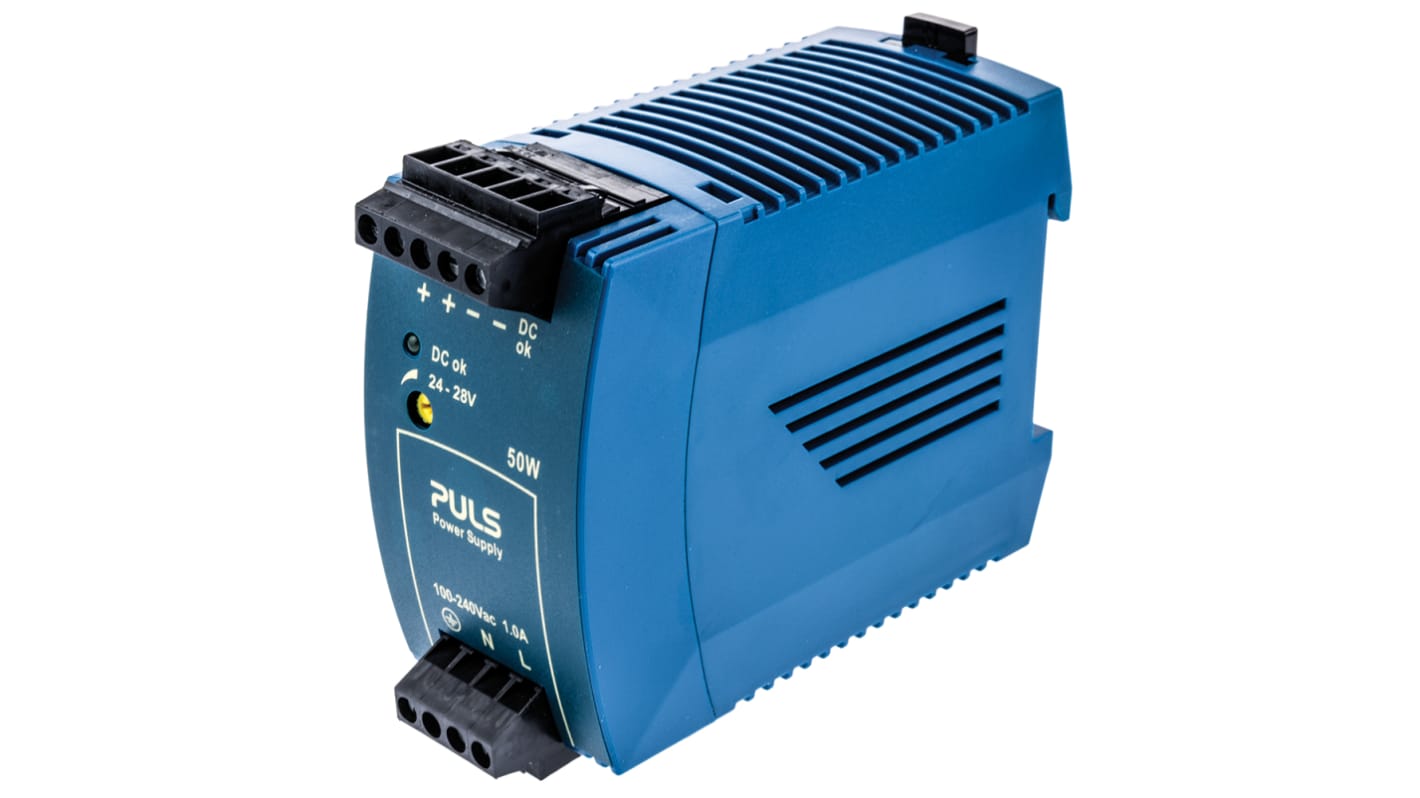

PULS MiniLine MLY Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 2.1A Output, 50W

The PULS MiniLine MLY series single-phase DIN-rail switch-mode power supply has an adjustable output voltage rating ranging between 24VDC and 28VDC with 2.1A current. This cost-optimised power supply specifically designed with uncompromised quality and reliability for high-performance. This unit is equipped with an input voltage range switching between100VAC and 240VAC/85VDC and 375VDC. It has a robust plastic housing with a fine ventilation grid. It has high immunity to power surges as well as low electromagnetic emission
Note:
Auto range
Preset voltage with jumper fitted
Power de-rating between 60°C and 70°C

Miniature size and lightweight
Quick and easy mount
Plug connector with screw terminations
Efficiency is up to 88.5%
Power rating is 50W
Ripple factor and noise is 50mVpp
Overload and short-circuit protected
Output LED indicator
Parallel mode for load sharing
Operation temperature ranges between -10°C and 70°C

Industrial control
Automation
Communication and instrumentation equipment

EN 61000-6-3
IP20 rated
VDE
SELV
UL approved
CSA certified
CB
NEC Class 2 Listed
