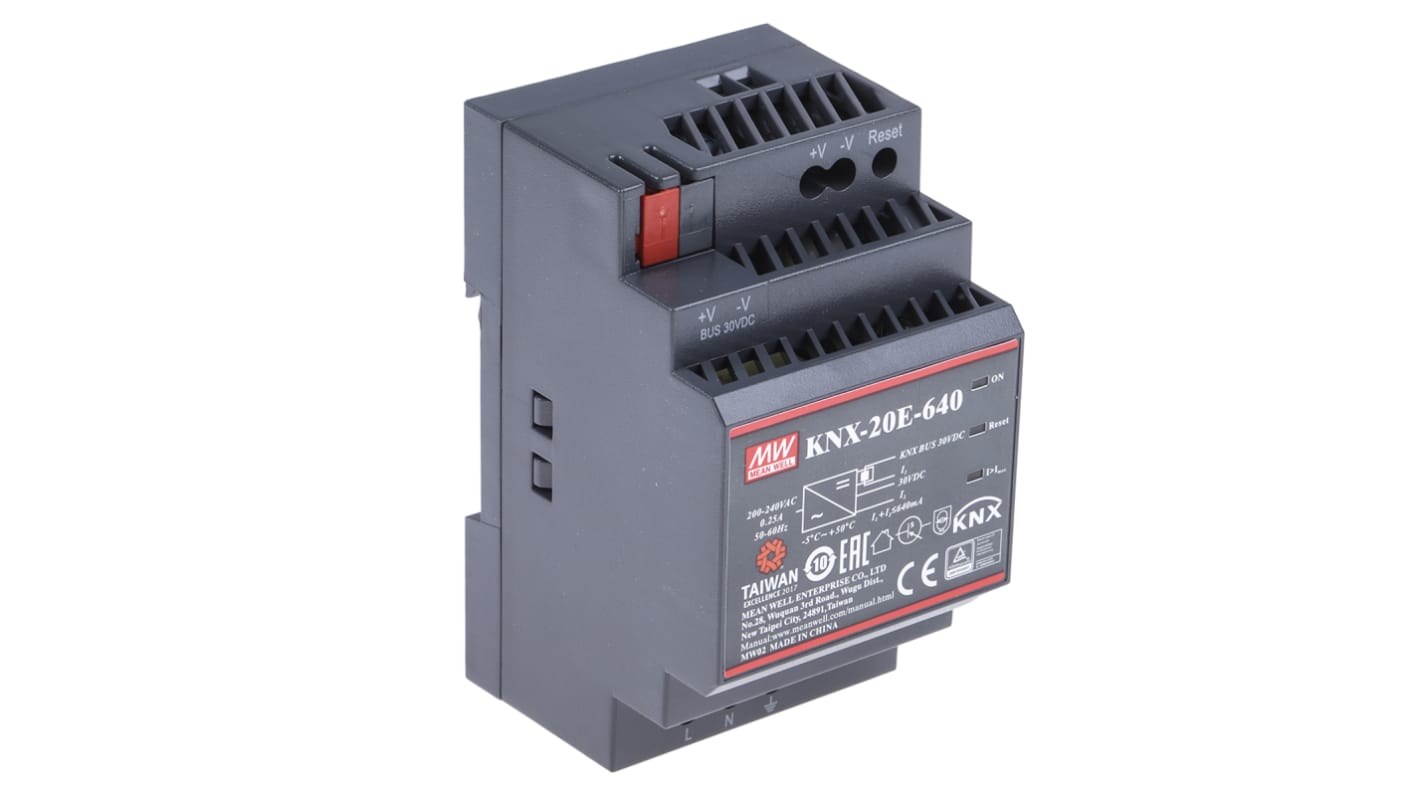

MEAN WELL KNX Switch Mode DIN Rail Power Supply, 180 → 264 V ac, 254 → 370 V dc, 30V dc dc Output, 640mA
- RS Stock No.:
- 140-8126
- Mfr. Part No.:
- KNX-20E-640
- Manufacturer:
- MEAN WELL
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
35 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR458.38
| Units | Per Unit |
| 1 - 9 | MYR458.38 |
| 10 - 49 | MYR449.21 |
| 50 + | MYR440.24 |
- RS Stock No.:
- 140-8126
- Mfr. Part No.:
- KNX-20E-640
- Manufacturer:
- MEAN WELL
Technical data sheets
Legislation and Compliance
Product Details
input 180-264VAC
Safety extra low voltage (SELV)
Isolation class I
Cooling by free air convection
LED indicator for normal operation, bus reset and bus overload
Installed on DIN rail TS-35/7.5 or 15
100% full load burn-in test
3 year warranty
Safety extra low voltage (SELV)
Isolation class I
Cooling by free air convection
LED indicator for normal operation, bus reset and bus overload
Installed on DIN rail TS-35/7.5 or 15
100% full load burn-in test
3 year warranty
Specifications
Attribute | Value |
|---|---|
| Type | Switch Mode |
| Output Voltage | 30V dc |
| Output Current | 640mA |
| AC or DC Output Voltage | dc |
| Input Voltage | 180 → 264 V ac, 254 → 370 V dc |
| Power Rating | 20W |
| Number of Outputs | 1 |
| Height | 90mm |
| Width | 52.5mm |
| Depth | 54.5mm |
| Series | KNX |
| MTBF | 109000h |
| Maximum Temperature | +70°C |
| Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
| Special Features | Overvoltage and Short Circuit Protection |
| Minimum Temperature | -30°C |
| Mounting Type | DIN Rail Mount |
| Ripple And Noise | 100mV Pk-Pk |
