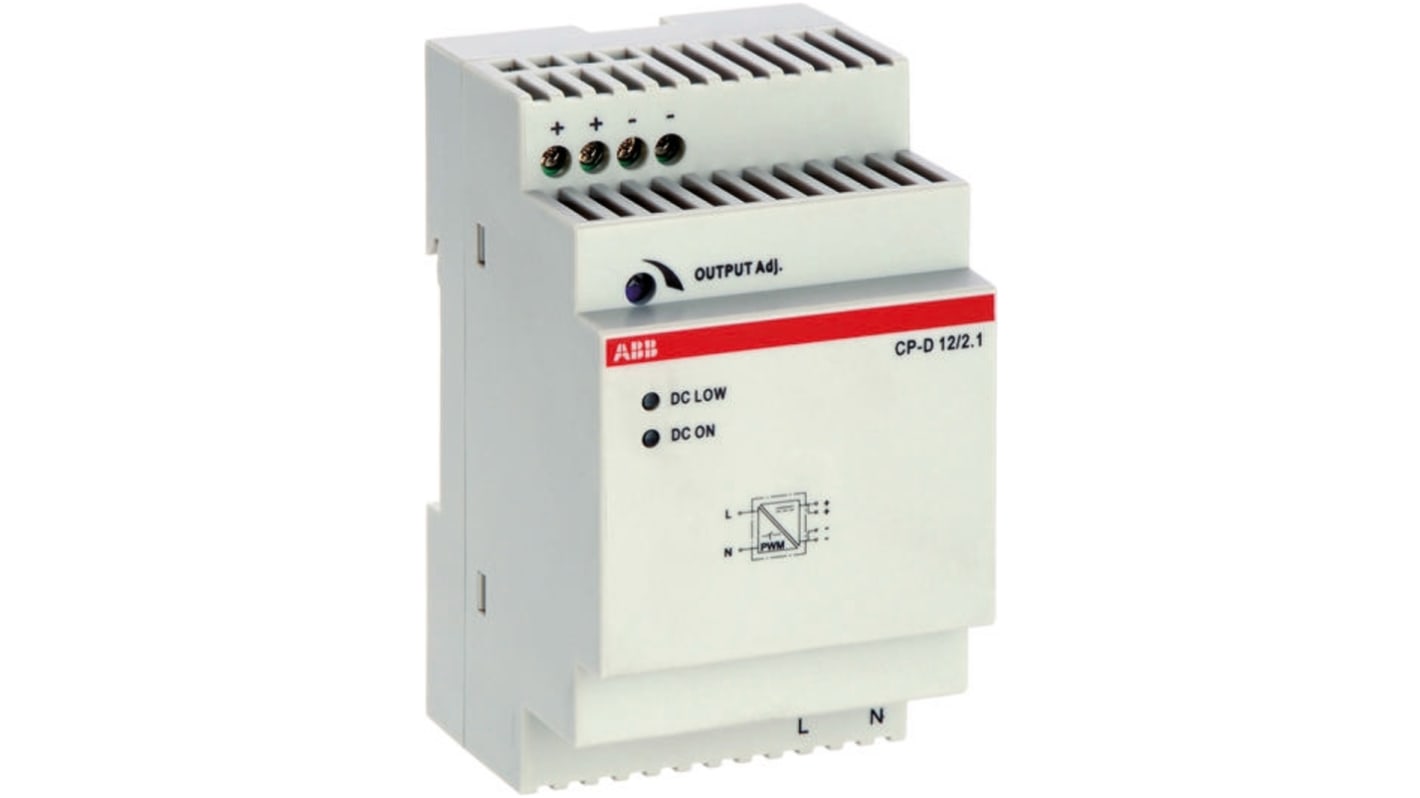

ABB, CP-D DIN Rail Panel Mount Power Supply, 12V dc Output Voltage, 2.1A Output Current

  • RS Stock No. 486-732
  • Mfr. Part No. 1SVR427043R1200
  • Manufacturer ABB
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Switching power supply units CP-D range

Primary clocked switching power supply units
Wide input range
High efficiency
Adjustable output voltages (devices > 10 W)
Low power loss and low heat development
Free convection cooling (no forced cooling by fan)
Idle, overload and continuous short circuit proof
Integrated input protection
U/I characteristic curve (fold-forward behaviour on overload - does not switch off)
Status indicator LEDs
Suitable for installation in distribution cabinets
Redundancy unit CP-D RU (772-4826) for decoupling of CP range power supply units with two inputs, each up to 5 A per channel and 1 output up to 10 A, ensures automatic redundant power supply operation for critical applications or enables increased power by two parallel connected power supplies

Approvals

UL, CAN, CSA

Standards

UL, CAN, CSA

Specifications
Attribute Value
AC or DC Input Voltage Ac, Dc
AC or DC Output Voltage Dc
Input Voltage 90 → 264V ac
Output Voltage 12 V dc
Output Current 2.1 A
Power Rating 30W
Number of Outputs 1
Electrical Phase 1
Type Switch Mode
Height 91mm
Width 53mm
Load Regulation ±1%
Mounting Type DIN Rail Mount
Series CP-D
Maximum Temperature +70°C
Output Voltage Adjustment Range 12.0 to 12.0V
Ripple And Noise 50mV
Efficiency 82.0%
Depth 57.5mm
Minimum Temperature -25°C
2 Within 4 working day(s) (Global stock)
7 Within 4 working day(s) (Global stock)
Price Each
MYR 388.75
units
Per unit
1 - 9
MYR388.75
10 - 14
MYR372.43
15 +
MYR354.55
