3M XTS Compact DIN Rail Enclosure, ABS DIN Rail

  • RS Stock No. 918-8910
  • Mfr. Part No. 35.0307000.BL
  • Manufacturer Italtronic
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

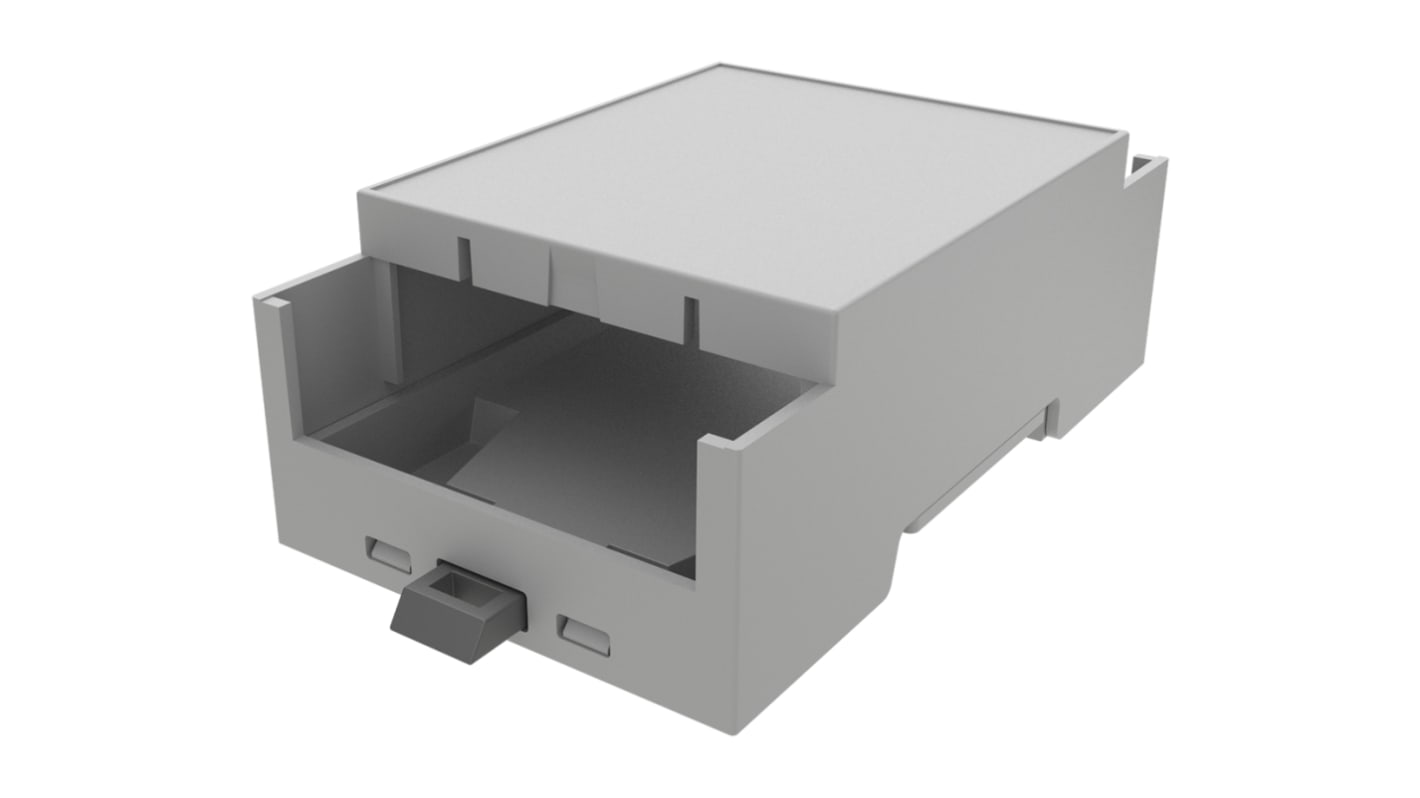

Modulbox XTS Compact

The Modulbox Compact XTS is a DIN Rail mountable enclosure made from a self-extinguishing PC/ABS blend. This new addition to the Italtronic range has its height reduced to approximately 32 mm. That apart, it is similar to the Modulbox XTS enclosure and can be equipped with the same electronic boards. With simple spacers or pins, another PCB can be fitted to the top of the enclosure.
The Modulbox Compact XTS is available in 24 enclosure kits divided into 3 versions.

Features and Benefits

Version A allows terminal blocks/connectors to be mounted on either side of the enclosure
Version B has one open side for terminal blocks/connectors and one high shoulder to increase internal volume for components
Version C has two high shoulders offering increased volume for components
All 3 have a top panel produced as part of the mould (non-removable)

Applications

The Modulbox XTS Compact is designed for use in various electronic and electrical applications. It can be hooked on the GUIDE EN 60715 (made in conformity with standard DIN 38880) or can be fixed to the wall.

Note

Versions A and B utilise the terminal covers used with the standard Modulbox XTS.

Supplied with

Base, cover and DIN Rail hook.

Specifications
Attribute Value
Body Material ABS
Enclosure Type DIN Rail
Length 90mm
Height 32.2mm
Colour Grey
Series 3M XTS Compact
Terminal Type PCB
Standards Met EN 60715
29 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 31.27
units
Per unit
1 +
MYR31.27
