Railbox DIN Rail Enclosure, ABS, Polycarbonate, 101 x 35 x 79mm Solid, Vented

  • RS Stock No. 860-7592
  • Mfr. Part No. 10.350KM04
  • Manufacturer Italtronic
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

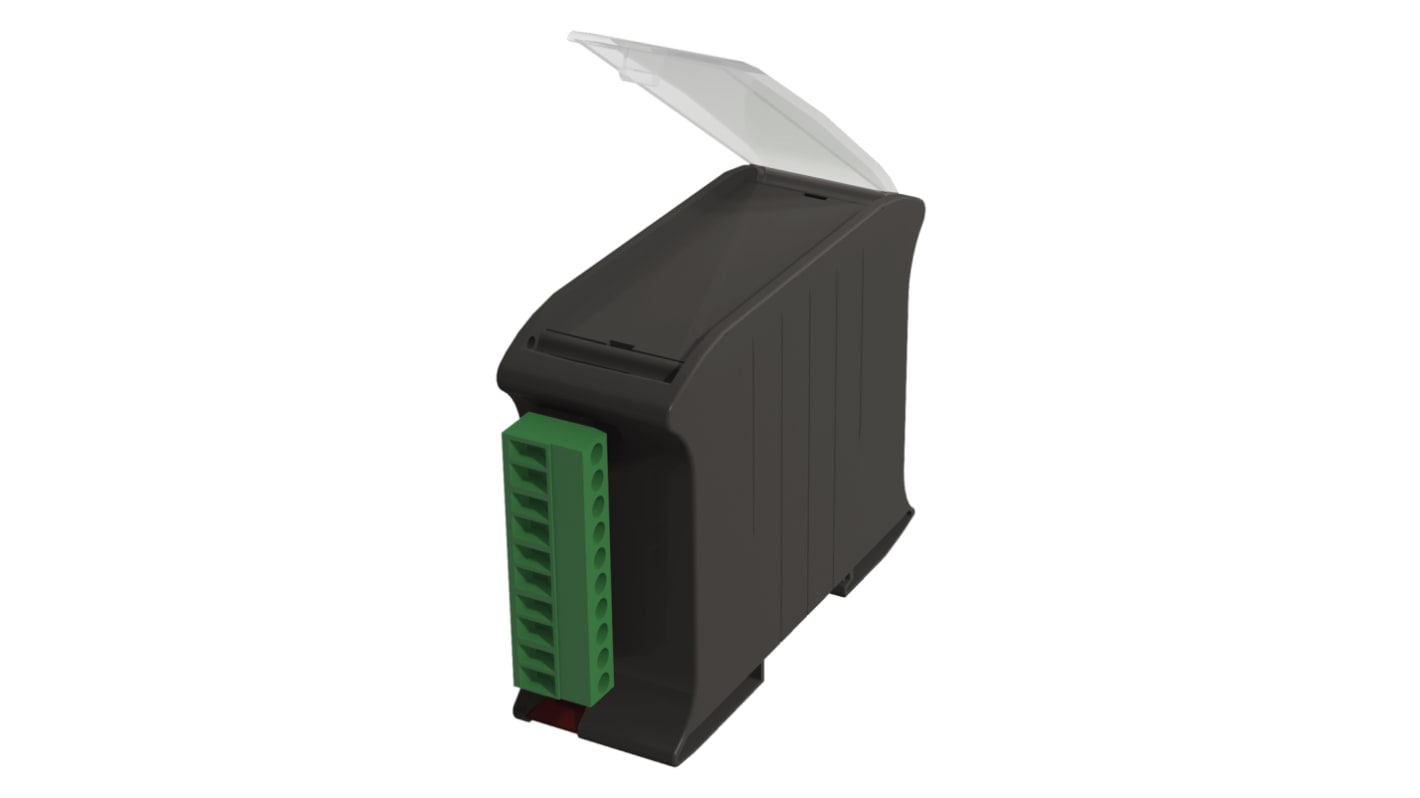

Railbox Compact DIN Rail Mount Enclosures

The Railbox Compact is a unique and stylish DIN rail mountable enclosure suitable for electronic applications. It is a lower profile version of the standard Railbox enclosure with a height of 79mm. There are 4 widths available: 17.5mm, 22.5mm, 35mm and 45mm. The Railbox Compact allows the PCB to be mounted in the base without the need for screws. Breakable hole covers in the Railbox Compact avoid machining costs and save time, making it ideal for prototyping. The terminals to be used in the Railbox Compact are the plug-in PH. These compact DIN rail enclosures are able to accept 20 poles, pitch 5.00/5.08 (10 poles per side).

DIN rail (EN 60715) mountable
UL94V-0 self-extinguishing PPO and PC Material
Breakable hole covers
Dark grey

Supplied with

base, cover, DIN rail hook, spring, hinged transparent cover, internal panel and 2 breakable hole covers.

Specifications
Attribute Value
Dimensions 101 x 35 x 79mm
Body Material ABS, Polycarbonate
DIN Rail Type Top Hat
Enclosure Type Solid, Vented
Length 101mm
Width 35mm
Height 79mm
Maximum Terminals 17
Colour Black
Series Railbox
46 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 57.23
units
Per unit
1 +
MYR57.23
