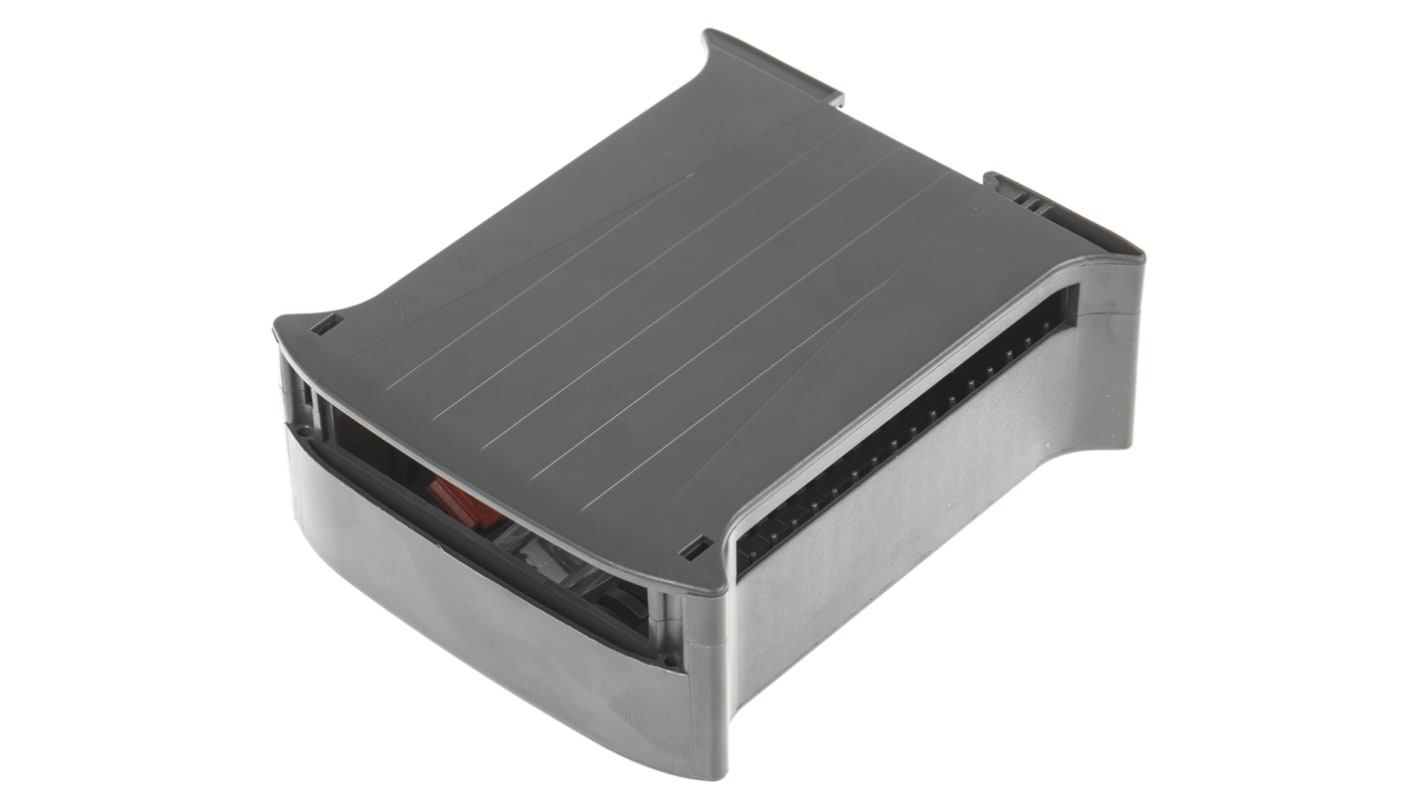

Railbox DIN Rail Enclosure, ABS, Polycarbonate, 101 x 45 x 120mm

  • RS Stock No. 798-9828
  • Mfr. Part No. 10.0001450/1
  • Manufacturer Italtronic
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): IT
Product Details

Railbox DIN Rail Mount Enclosure

The Railbox is a stylish DIN rail mounting enclosure designed to meet the needs of a wide range of applications including signal conditioning units and power supplies.

DIN Rail Mounting (EN 60715)
UL94V-0 self-extinguishing PPO and PC material
Four standard widths available: 17.5mm, 22.5mm, 35mm, 45mm
PCBs can be mounted without the need for any screws
Using adapters a smaller PCB or, if needed, two separate PCBs can be mounted
Vertical mounting to save space
Breakable hole covers for time and cost saving

Specifications
Attribute Value
Dimensions 101 x 45 x 120mm
Body Material ABS, Polycarbonate
DIN Rail Type Top Hat
Length 101mm
Width 45mm
Height 120mm
Colour Black
Series Railbox
Standards Met EN 60715
9 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 64.44
units
Per unit
1 +
MYR64.44
