RS PRO 5 Pole Din Plug, DIN 41524, 2A, 34 V ac/dc, Male, Cable Mount
- RS Stock No.:
- 110-2810
- Manufacturer:
- RS PRO
112 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR17.57
| Units | Per Unit |
| 1 - 4 | MYR17.57 |
| 5 - 24 | MYR17.20 |
| 25 + | MYR14.16 |
- RS Stock No.:
- 110-2810
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details

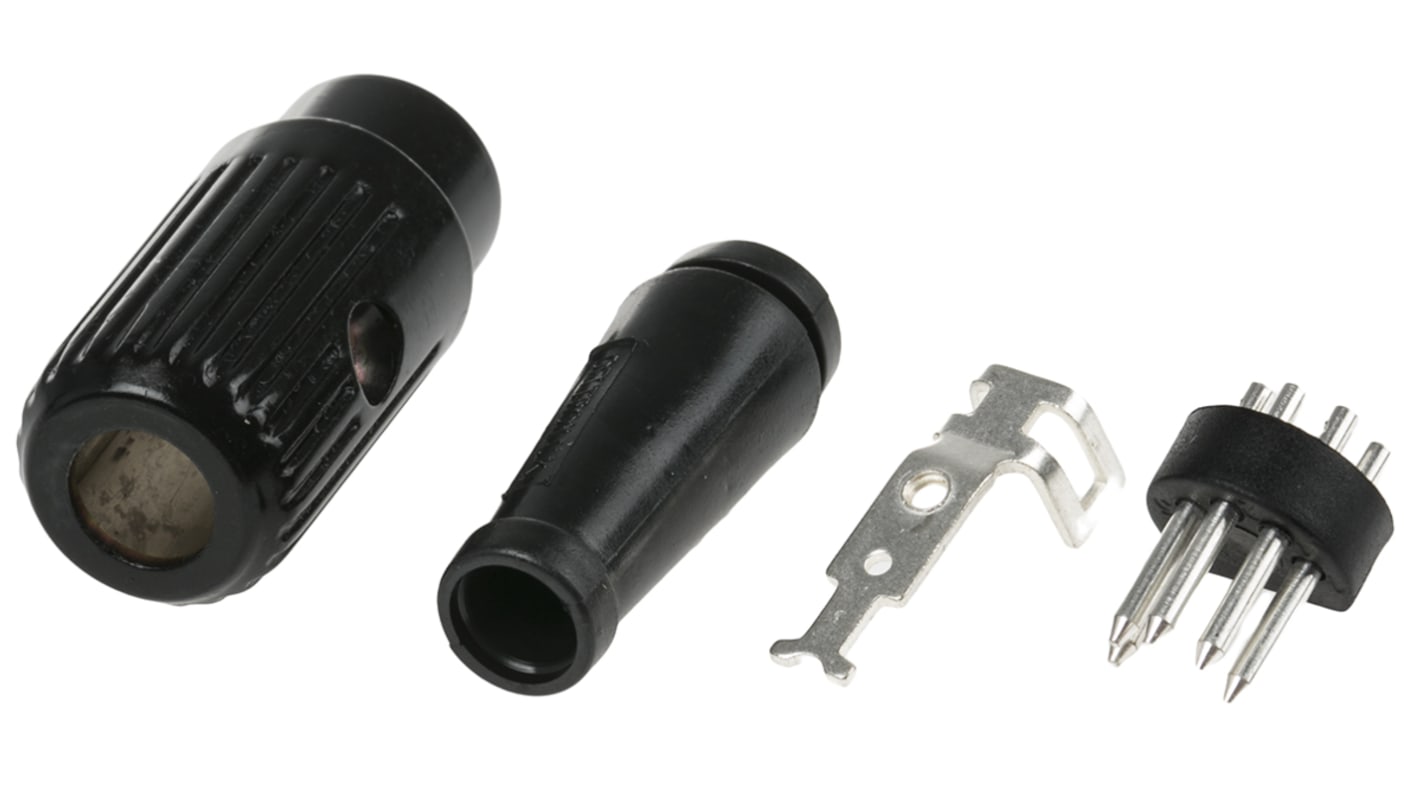

DIN standard male plugs - black finish
Brought to you by the trusted RS Brand, this range of robust metal DIN connectors have all the benefits of the "standard metal'' range, but are coated in a black finish. While the connectors have no lock, they are supplied with a cable tie and a grommet, ensuring a reliable and secure connection for standard DIN applications. The standard DIN connector measures 60.3mm in length and in 15.9mm diameter.
Note
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 5 |
| Gender | Male |
| Mounting Type | Cable Mount |
| Connector Size | Standard |
| Termination Method | Crimp |
| Current Rating | 2A |
| Voltage Rating | 34 V ac/dc |
| Shielded/Unshielded | Shielded |
| DIN Number | DIN 41524 |
| Series | 611 |
| Housing Material | Zinc Alloy |
| Contact Material | Brass |
| Contact Plating | Silver |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
