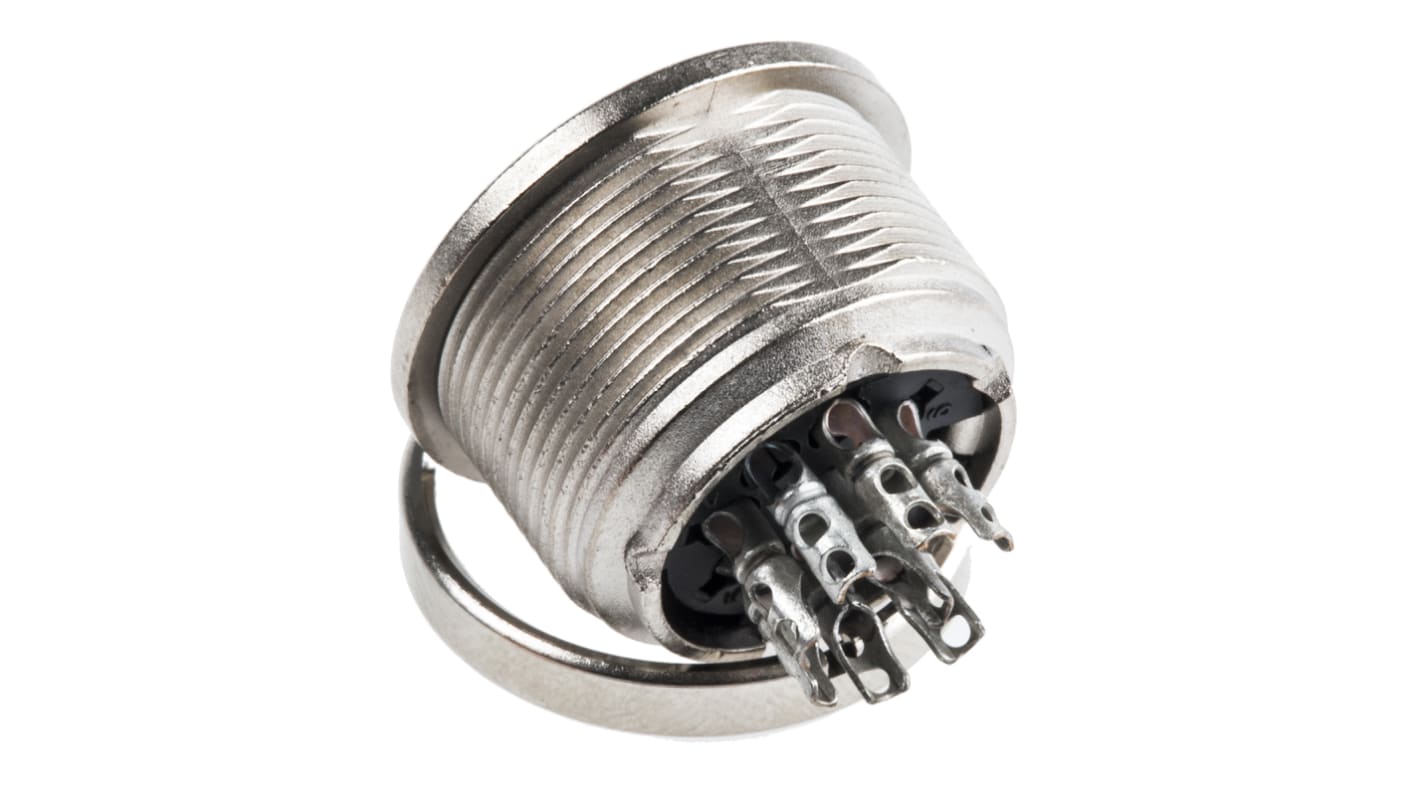

Amphenol Industrial, C 091 A 8 Pole M16 Din Socket, DIN 45326, 4A, 100 V IP40, Screw Lock, Female, Panel Mount
- RS Stock No.:
- 486-195
- Mfr. Part No.:
- T3507000
- Manufacturer:
- Amphenol Industrial
265 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR29.93
| Units | Per Unit |
| 1 - 24 | MYR29.93 |
| 25 - 99 | MYR29.04 |
| 100 - 499 | MYR28.17 |
| 500 + | MYR27.32 |
- RS Stock No.:
- 486-195
- Mfr. Part No.:
- T3507000
- Manufacturer:
- Amphenol Industrial
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Panel Mounting Connectors
Types 4 and 5 screwlocking single piece panel mounting screwlock plugs and sockets with ring nut fixing and silver plated contacts.
Secure screwlock mechanism preventing accidental disconnection
Cable acceptance 6.0mm maximum
Tin plated contacts with UL94V-2 rated housings
Cable acceptance 6.0mm maximum
Tin plated contacts with UL94V-2 rated housings
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 8 |
| Gender | Female |
| Mounting Type | Panel Mount |
| Connector Size | M16 |
| Mating Type | Screw Lock |
| Termination Method | Solder |
| Body Orientation | Straight |
| Current Rating | 4A |
| Voltage Rating | 100 V |
| IP Rating | IP40 |
| Shielded/Unshielded | Shielded |
| DIN Number | DIN 45326 |
| Series | C 091 A |
| Contact Plating | Silver |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +100°C |
