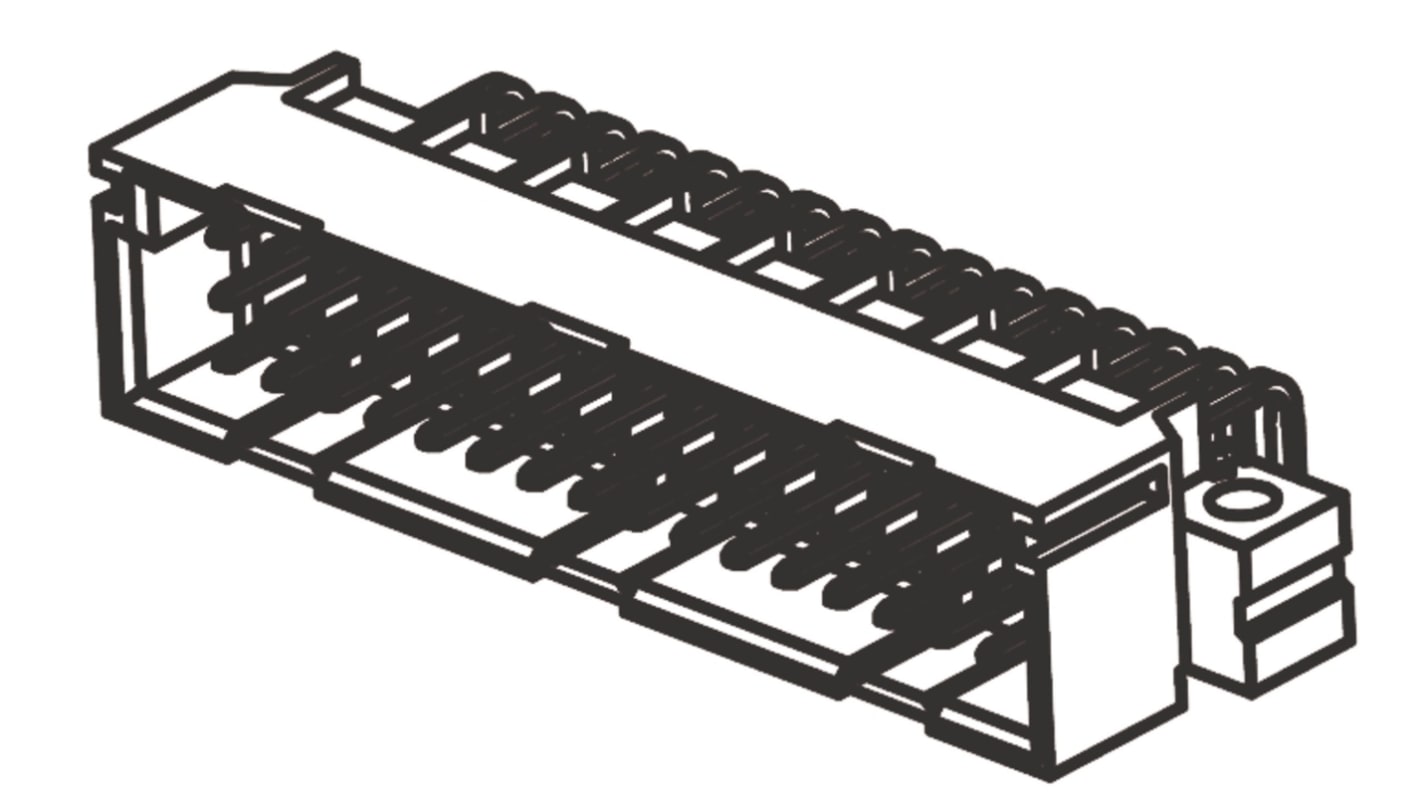

ERNI ERNIPRESS Series 48 Way 2.54mm Pitch, Type C/2 Class C2, 3 Row, Right Angle DIN 41612 Connector, Plug

  • RS Stock No. 770-6979
  • Mfr. Part No. 254324
  • Manufacturer ERNI
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

ERNI ERmet 2.0 mm Hard Metric Female Connectors

ERmet 2.0 mm Hard Metric female connectors with a high density modular design supported by international connector standards IEC 61076-4-101. These ERmet 2.0 mm HM female connectors can support various PCB arrangements including daughtercard, extender card, backplane and board to board applications. The 2.00 mm pitch signal contacts of these female connectors have a dual beam leaf design which provides equalized signal path lengths for high signalling performance. The right angle mounting ERmet 2.0 mm HM female connectors are available with integrated upper ground return shields. The vertical mount versions are available with optional shielding contact rows for optimum performance. Versions are also available with location pegs for improved rigidity and polarisation on the PCB. The press fit terminations on these ERmet 2.0 mm Hard Metric female connectors enable simple and secure PCB mounting. These ERmet 2.0 mm Hard Metric female connectors are available in Type A, B & C configurations and various modular widths.

Features and Benefits

High density design
Conforms to international connector standards IEC 61076-4-101
Dual beam contacts for high signalling performance
Alignment and polarisation features
Shielding and PCB location peg options
Press fit terminations

Applications

These ERmet 2.0 mm Hard Metric female connectors provide a cost effective board to backplane solution for a range of high performance, high density applications. Industries include networking systems, telecommunications and high performance industrial computing where PICMG specifications apply. These ERmet 2.0 mm HM connectors have also gained widespread acceptance is the interconnect system for CompactPCI. The right angle ERmet 2.0 mm Hard Metric female connectors are for use in daughter card and extender card applications. The vertical mount versions in backplane, board to board and mezzanine applications.

Standards

IEC 61076-4-101

ERNI ERmet 2.0 mm Hard Metric Connector System

Specifications
Attribute Value
Number of Contacts 48
Gender Male
Number of Rows 3
Body Orientation Right Angle
Termination Method Solder
Row Loading A/b/c
Type C/2
Pitch 2.54mm
Contact Plating Gold
Class Rating C2
Current Rating 2A
Contact Material Copper Alloy
Maximum Contact Resistance 20mΩ
Maximum Operating Temperature +125°C
Minimum Operating Temperature -55°C
Housing Material PBT
Series ERNIPRESS
50 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 8.15
units
Per unit
1 - 19
MYR8.15
20 - 74
MYR6.80
75 - 299
MYR5.72
300 - 599
MYR5.32
600 +
MYR4.88
