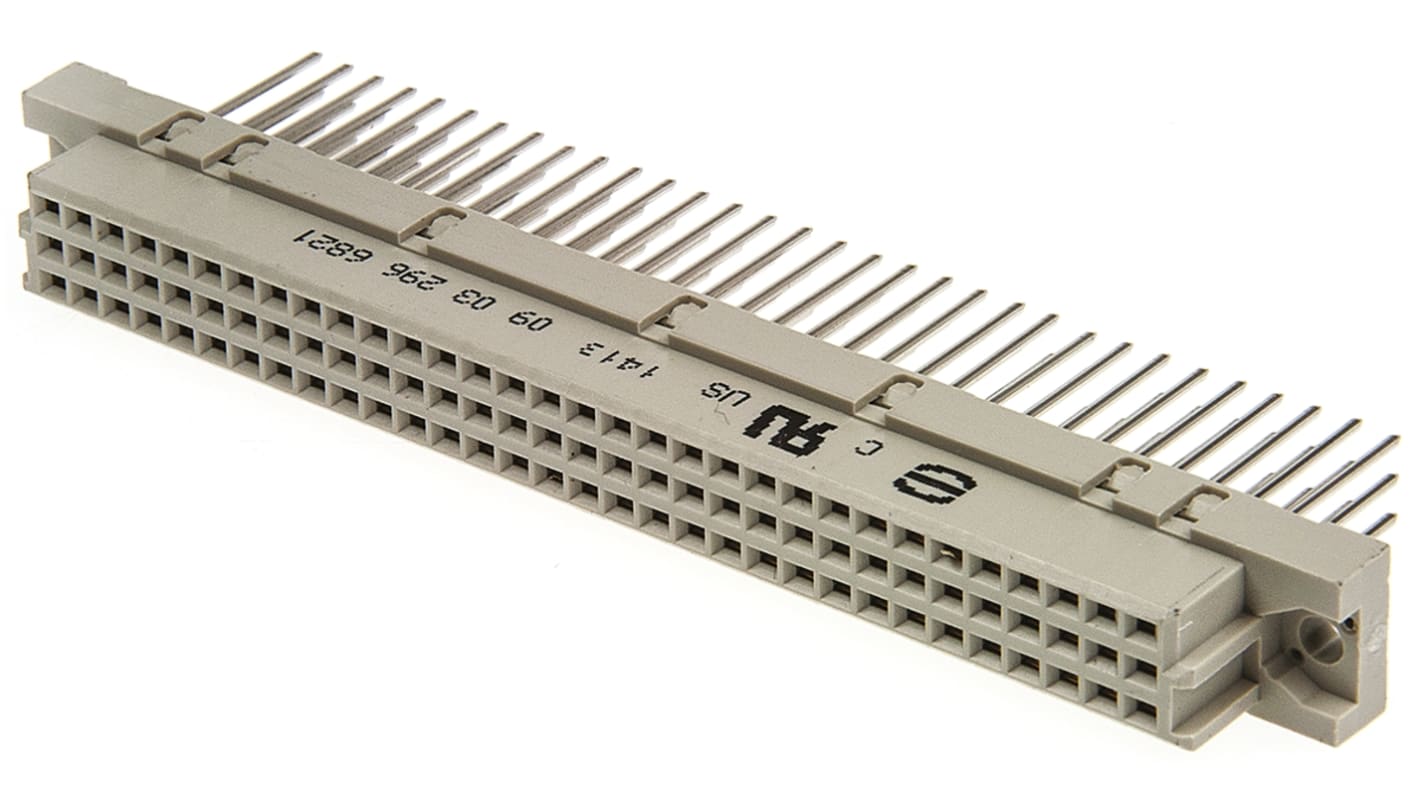

Harting 96 Way 2.54mm Pitch, Type C Class C2, 3 Row, Straight DIN 41612 Connector, Socket

  • RS Stock No. 406-278
  • Mfr. Part No. 09032966821
  • Manufacturer HARTING
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Harting DIN 41612 Type C Backplane Signal Connectors

Harting DIN 41612 Type C backplane signal connectors are designed for PCB connection. Hard wearing and durable with a good mating cycle life these DIN 41612 type C PCB backplane signal connectors offer a economical solution to many electronic signal connector design applications. Mating first at positions a1 and a31.
Stock numbers 757-7951, 757-7945, 757-7970, 757-7936, 757-7954, 757-7926, 757-7995, 757-7998, 757-7967 and 757-7958 are railway approved with a railway classification of NFF 16-101, Smoke index: F1, Flammability class: I2

Operating temp -55 to +125 °C
Test voltage 1kV
Contact resistance up to 20mΩ
Thermoplastic resin - glass fibre filled
Copper alloy contacts
Mating first at positions a1 and a31

Available with 4.5mm connectors (RS 406-284) and 13mm connectors (RS 740-6723)

//media.rs-online.com/t_line/L475993-01.gif
//media.rs-online.com/t_line/L475993-02.gif

DIN41612 - Harting Range

DIN 41612 connectors for interconnection in all 19in Eurocard racking systems.

Specifications
Attribute Value
Number of Contacts 96
Gender Female
Number of Rows 3
Body Orientation Straight
Termination Method Wire Wrap
Row Loading A/b/c
Type C
Pitch 2.54mm
Contact Plating Gold over Palladium Nickel
Mounting Type Through Hole
Class Rating C2
Current Rating 2A
63 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 44.61
units
Per unit
1 - 19
MYR44.61
20 - 74
MYR42.90
75 - 299
MYR41.38
300 - 599
MYR39.99
600 +
MYR38.74
Packaging Options:
