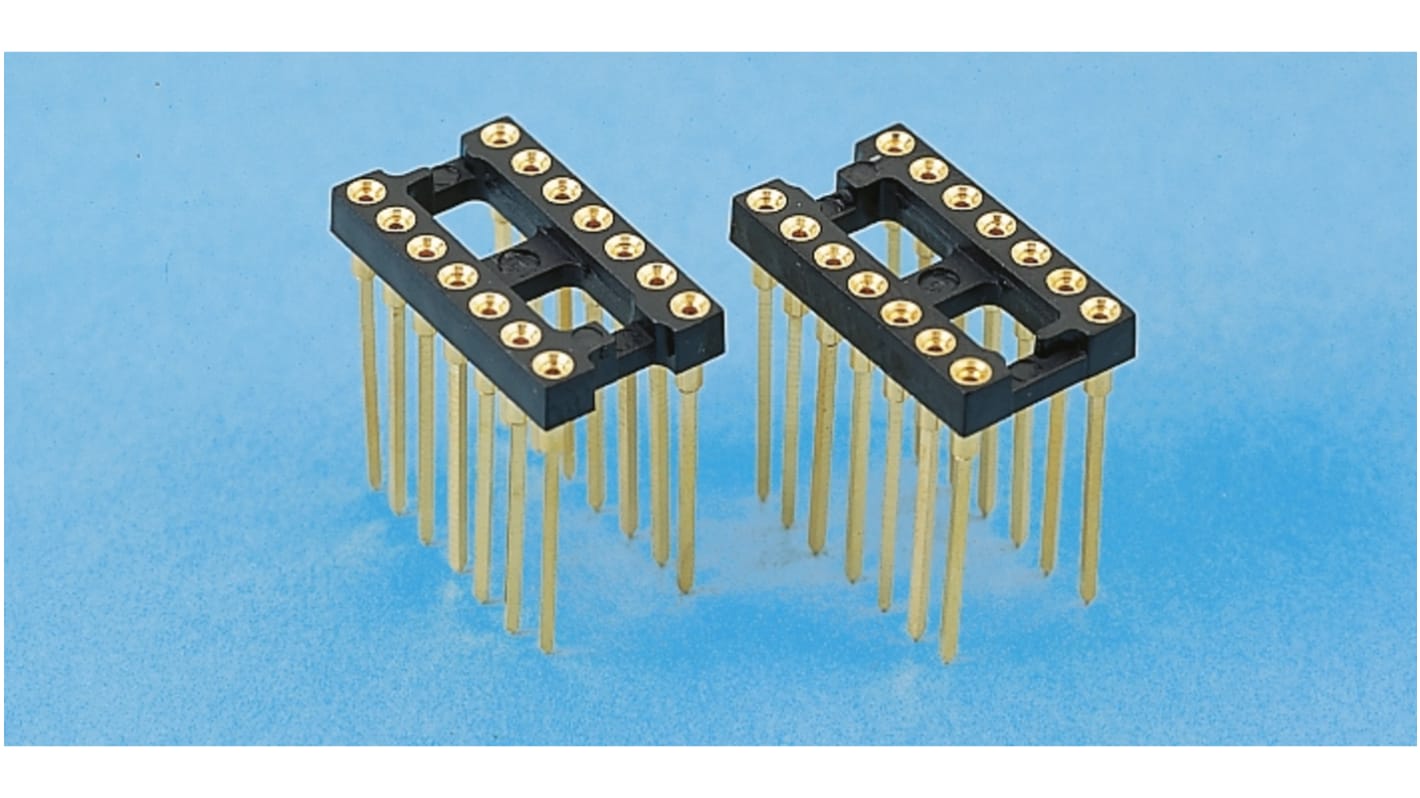

E-TEC 2.54mm Pitch Vertical 16 Way, Through Hole Turned Pin Open Frame IC Dip Socket
- RS Stock No.:
- 615-5285
- Mfr. Part No.:
- POS-316-S003-55
- Manufacturer:
- E-TEC
130 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 10)
MYR23.679
| Units | Per Unit | Per Pack* |
| 10 - 40 | MYR23.679 | MYR236.79 |
| 50 + | MYR21.311 | MYR213.11 |
| *price indicative | ||
- RS Stock No.:
- 615-5285
- Mfr. Part No.:
- POS-316-S003-55
- Manufacturer:
- E-TEC
Technical data sheets
Legislation and Compliance
Product Details
Wrapping DIL sockets with gold leads
DIL format sockets with wire wrap contacts for integrated circuits.
The contacts on these sockets are fully gold-plated to improve wrapping lead conductivity.
The contacts on these sockets are fully gold-plated to improve wrapping lead conductivity.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 16 |
| Mounting Type | Through Hole |
| Pin Type | Turned |
| Pitch | 2.54mm |
| Row Width | 7.62mm |
| Frame Type | Open Frame |
| Termination Method | Wire Wrap |
| Contact Plating | Gold |
| Orientation | Vertical |
| Length | 20.3mm |
| Width | 4.9mm |
| Housing Material | PBT |
| Contact Material | Beryllium Copper |
