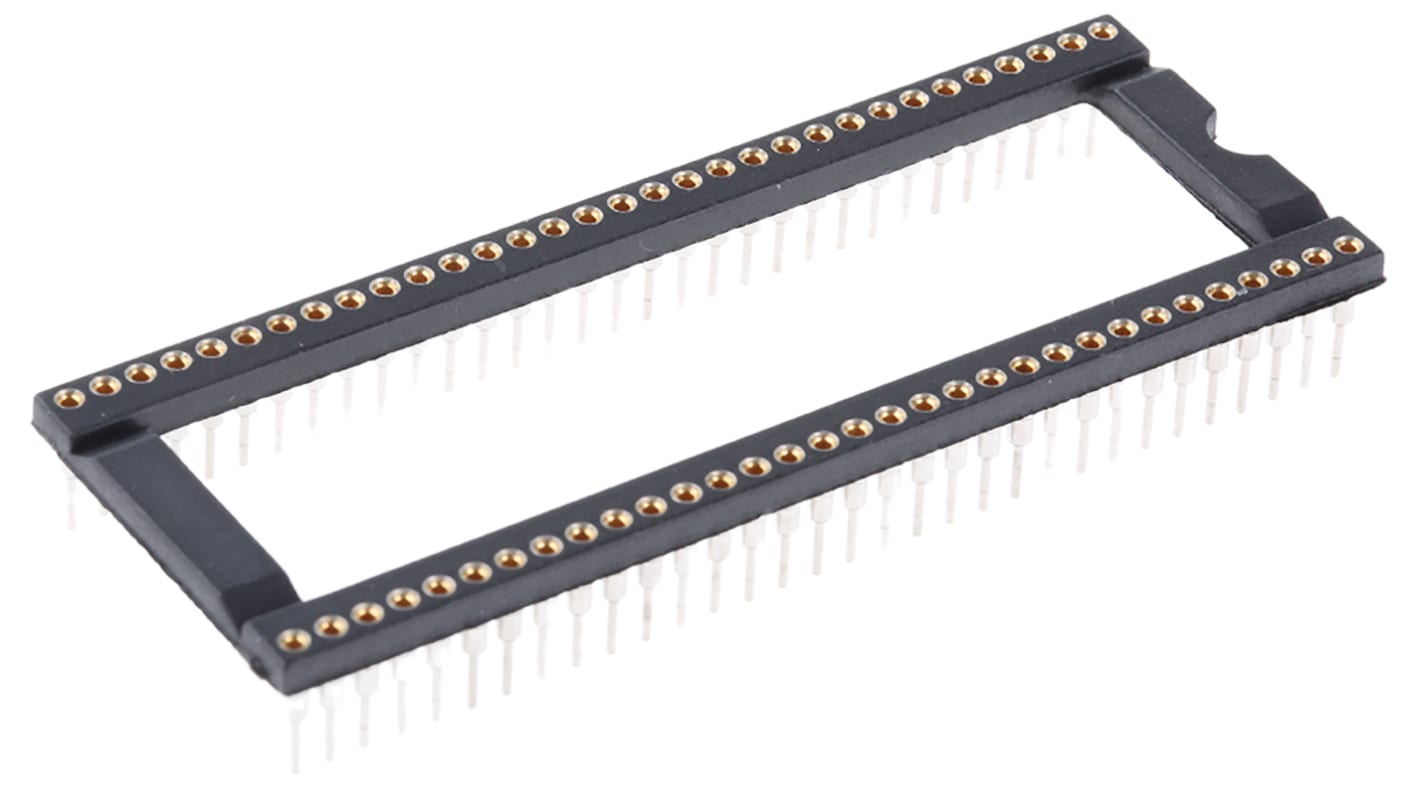

E-TEC 1.778mm Pitch Vertical 64 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 3A
- RS Stock No.:
- 615-5178
- Mfr. Part No.:
- SDS-232-S075-95
- Manufacturer:
- E-TEC
Temporarily out of stock - back order for despatch 31/05/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR105.76
| Units | Per Unit |
| 1 - 49 | MYR105.76 |
| 50 - 249 | MYR102.81 |
| 250 + | MYR98.58 |
- RS Stock No.:
- 615-5178
- Mfr. Part No.:
- SDS-232-S075-95
- Manufacturer:
- E-TEC
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
Breakable Shrink DIP Sockets
Turned pin shrink DIP socket with a pin spacing of 0.07in (1.778mm)
Two rows of 32 contacts can be snapped apart to form 2 SIL shrink sockets
Ideal for use with packages of non-standard pitch
Inner contact material: Gold plated beryllium copper
Outer shell material: Tin plated brass
Temperature Range: -65°C to +175°C
100 Cycles (Contact Life)
Two rows of 32 contacts can be snapped apart to form 2 SIL shrink sockets
Ideal for use with packages of non-standard pitch
Inner contact material: Gold plated beryllium copper
Outer shell material: Tin plated brass
Temperature Range: -65°C to +175°C
100 Cycles (Contact Life)
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 64 |
| Mounting Type | Through Hole |
| Pin Type | Turned |
| Pitch | 1.778mm |
| Row Width | 19.05mm |
| Frame Type | Open Frame |
| Termination Method | Solder |
| Contact Plating | Gold, Tin |
| Current Rating | 3A |
| Orientation | Vertical |
| Length | 55.12mm |
| Depth | 1.7mm |
| Contact Material | Beryllium Copper |
| Housing Material | Polymer |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
