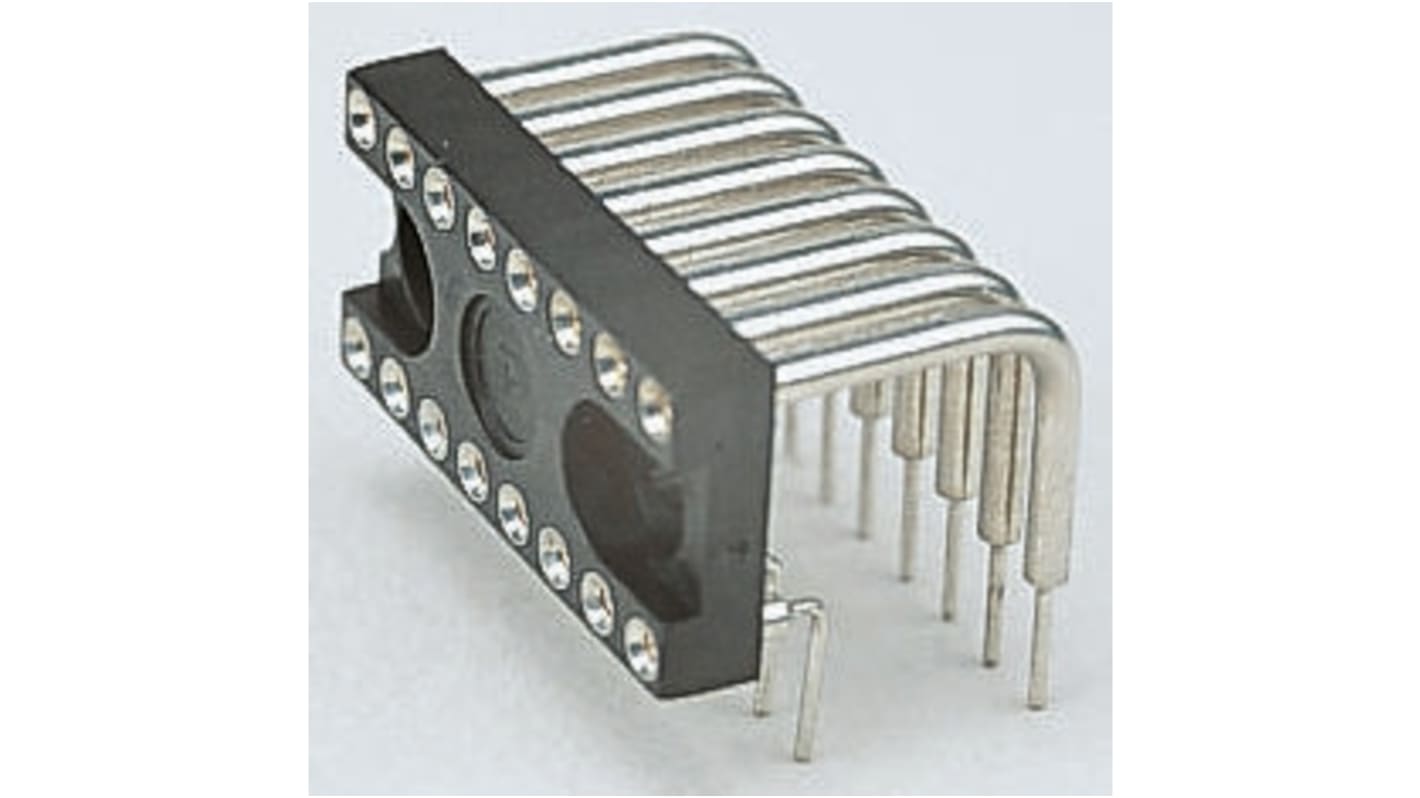

E-TEC 2.54mm Pitch Right Angle 20 Way, Through Hole Turned Pin Closed Frame IC Dip Socket
- RS Stock No.:
- 549-4848
- Mfr. Part No.:
- LEH-320-S900-95
- Manufacturer:
- E-TEC
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
37 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR66.29
| Units | Per Unit |
| 1 - 49 | MYR66.29 |
| 50 - 499 | MYR64.44 |
| 500 + | MYR61.78 |
- RS Stock No.:
- 549-4848
- Mfr. Part No.:
- LEH-320-S900-95
- Manufacturer:
- E-TEC
Technical data sheets
Legislation and Compliance
Product Details
Display sockets
Range of 14 to 20-pin sockets for dot matrix or bar graph displays.
They are juxtaposable in line without throughput loss and may consequently be combined.
Pitch between rows is 7.62 mm.
They are juxtaposable in line without throughput loss and may consequently be combined.
Pitch between rows is 7.62 mm.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 20 |
| Mounting Type | Through Hole |
| Pin Type | Turned |
| Pitch | 2.54mm |
| Row Width | 7.62mm |
| Frame Type | Closed Frame |
| Termination Method | Solder |
| Contact Plating | Gold, Tin |
| Orientation | Right Angle |
| Width | 10.16mm |
| Depth | 13.22mm |
| Contact Material | Beryllium Copper |
