E-TEC 2.54mm Pitch Vertical 40 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 1A

RS Stock No.:: 549-4731
Mfr. Part No.:: LOP-640-S083-95
Manufacturer:: E-TEC

E-TEC 2.54mm Pitch Vertical 40 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 1A

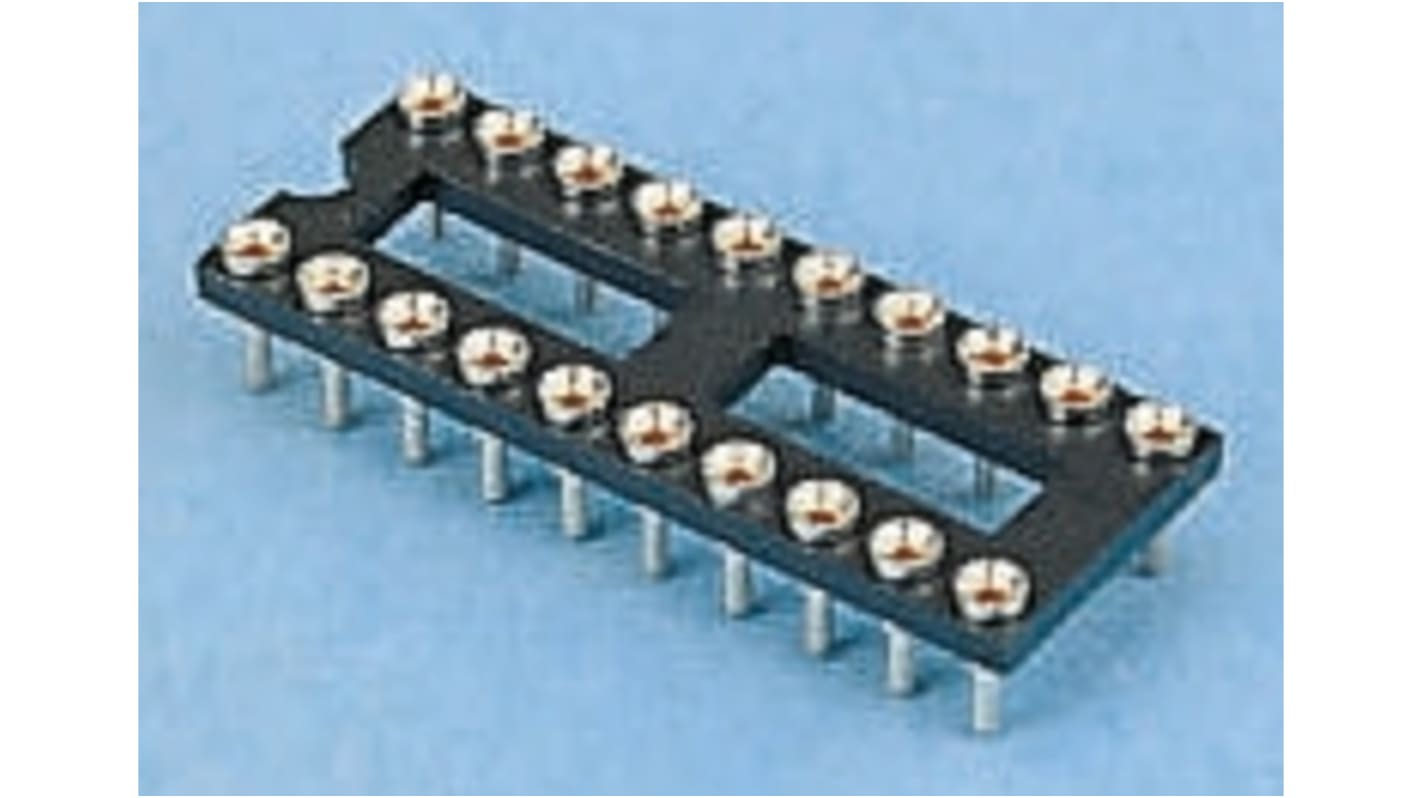

This image is representative of the product range

690 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each (In a Tube of 10)

MYR29.878

Units	Per Unit	Per Tube*
10 - 40	MYR29.878	MYR298.78
50 - 490	MYR28.832	MYR288.32
500 +	MYR27.487	MYR274.87
*price indicative

RS Stock No.:: 549-4731
Mfr. Part No.:: LOP-640-S083-95
Manufacturer:: E-TEC

Technical data sheets

LOP/SLP Series - Sockets & Strips

Legislation and Compliance

Product Details

Super low profile sockets

Sockets featuring gold-plated / tin-plated tulip contacts for insertion in standard Ø 0.8 mm PCB holes.
Allow PCBs (EPROM) to be fitted on sockets even in applications where the space between two boards is minimal. The memory and its socket have a height above board of only 7.62 mm.
Glass fibre reinforced polyester insulation, open frame construction.
Juxtaposable sockets without throughput loss.
Installation on the board is identical to that for a standard socket, and a track between two contacts is possible.

Specifications

Attribute	Value
Number of Contacts	40
Mounting Type	Through Hole
Pin Type	Turned
Pitch	2.54mm
Row Width	15.24mm
Frame Type	Open Frame
Termination Method	Solder
Contact Plating	Gold, Tin
Current Rating	1A
Orientation	Vertical
Length	50.8mm
Width	2.41mm
Depth	17.78mm
Dimensions	50.8 x 2.41 x 17.78mm
Minimum Operating Temperature	-55°C
Maximum Operating Temperature	+125°C
Housing Material	PBT
Contact Material	Beryllium Copper
