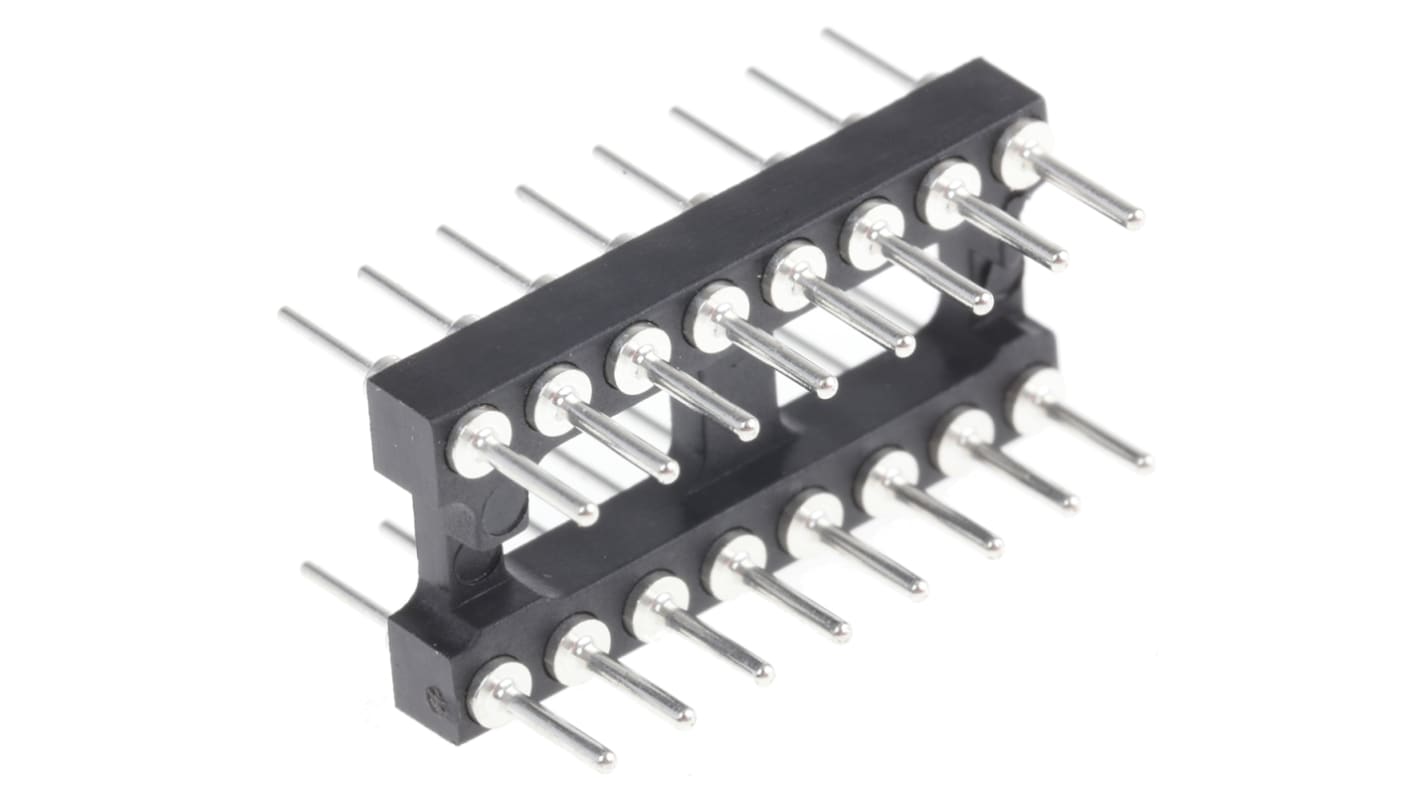

E-TEC 2.54mm Pitch 16 Way,Through Hole Mount PCB Header, Tin Plated Contacts

  • RS Stock No. 600-7704
  • Mfr. Part No. POS-316-S037-99
  • Manufacturer E-TEC
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

Through Headers

Tin plated through headers, suitable for interconnecting two PCBs. They can be used with appropriate DIL socket to form a plug and socket pair, or can be directly soldered to the PCB.

Inner contact material: Tin plated beryllium copper
Outer pin material: Tin plated brass
Current rating 3A
100 Cycles (Contact Life)
Insulation Resistance: 5 x 109Ω (at 500Vdc)
Operating Temperature -65°C to +175°C
Flammability UL 94 V-0

//media.rs-online.com/t_line/L868597-01.gif
//media.rs-online.com/t_line/LF187228-10.gif
Specifications
Attribute Value
Number of Contacts 16
Contact Plating Tin
Pitch 2.54mm
Termination Method Solder
Mounting Type Through Hole
Housing Material PBT
Length 20.3mm
Width 8.15mm
175 Within 4 working day(s) (Global stock)
475 Within 4 working day(s) (Global stock)
Price Each (In a Tube of 25)
MYR 8.463
units
Per unit
Per Tube*
25 - 600
MYR8.463
MYR211.575
625 - 1850
MYR8.06
MYR201.50
1875 - 4975
MYR7.91
MYR197.75
5000 - 9975
MYR7.758
MYR193.95
10000 +
MYR7.603
MYR190.075
*price indicative
