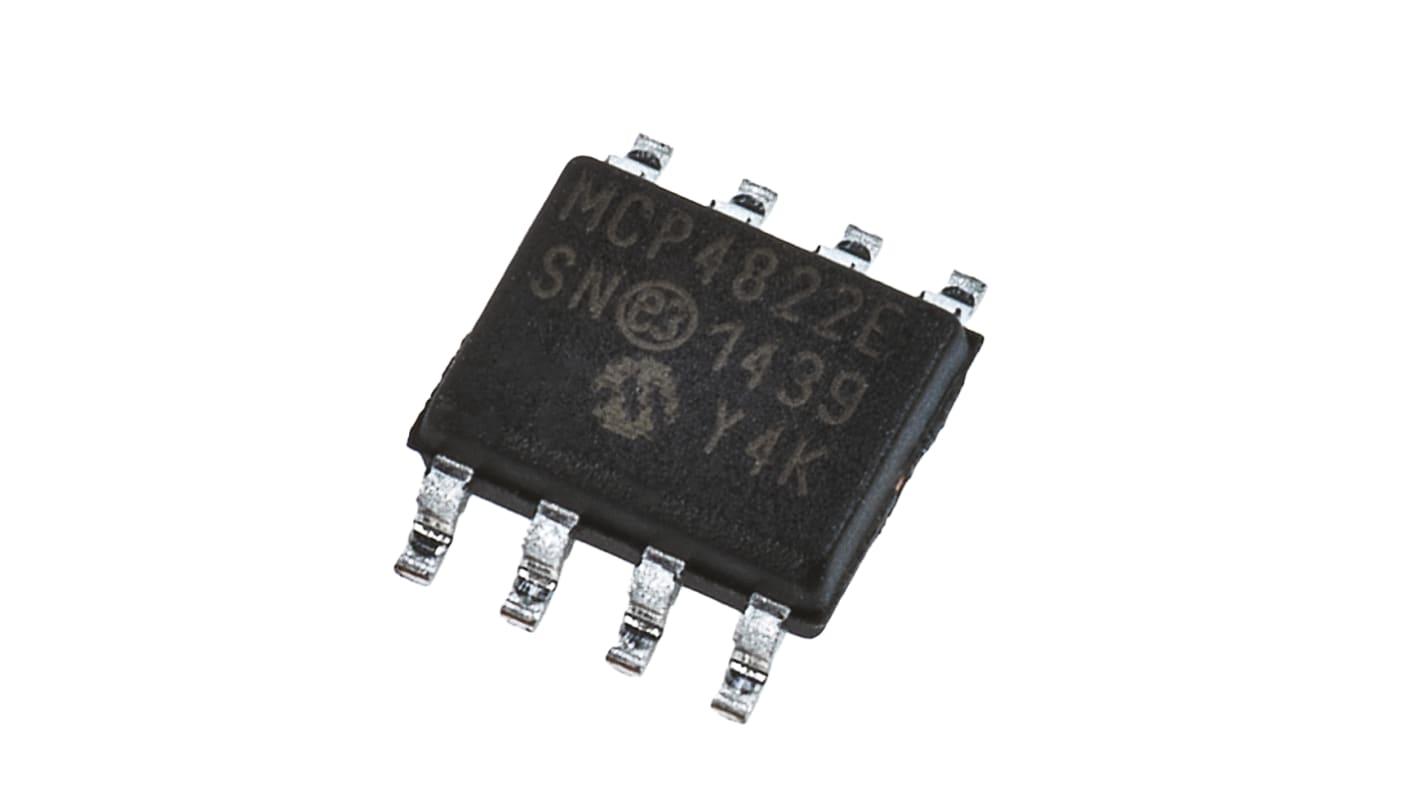

Microchip, DAC Dual 12 bit- ±2%FSR Serial (SPI/Microwire), 8-Pin SOIC
- RS Stock No.:
- 669-6304
- Mfr. Part No.:
- MCP4822-E/SN
- Manufacturer:
- Microchip
12 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
8 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 2)
MYR17.615
| Units | Per Unit | Per Pack* |
| 2 - 24 | MYR17.615 | MYR35.23 |
| 26 - 48 | MYR17.175 | MYR34.35 |
| 50 + | MYR16.745 | MYR33.49 |
| *price indicative | ||
- RS Stock No.:
- 669-6304
- Mfr. Part No.:
- MCP4822-E/SN
- Manufacturer:
- Microchip
Legislation and Compliance
Product Details
MCP4821/4822 Series 12 Bit Digital-to-Analogue Converters
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Digital to Analogue Converters - Microchip
Specifications
Attribute | Value |
|---|---|
| Architecture | Resistor String |
| Resolution | 12 bit |
| Full Scale Error | ±2%FSR |
| Integral Nonlinearity Error | ±12LSB |
| Number of DAC Channels | 2 |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 8 |
| Maximum Settling Time | 4.5µs |
| Digital Interface Type | Serial (SPI/Microwire) |
| Output Polarity | Unipolar |
| Voltage Reference | Internal |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 5 V |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 4.9 x 3.9 x 1.42mm |
| Minimum Operating Temperature | -40 °C |
