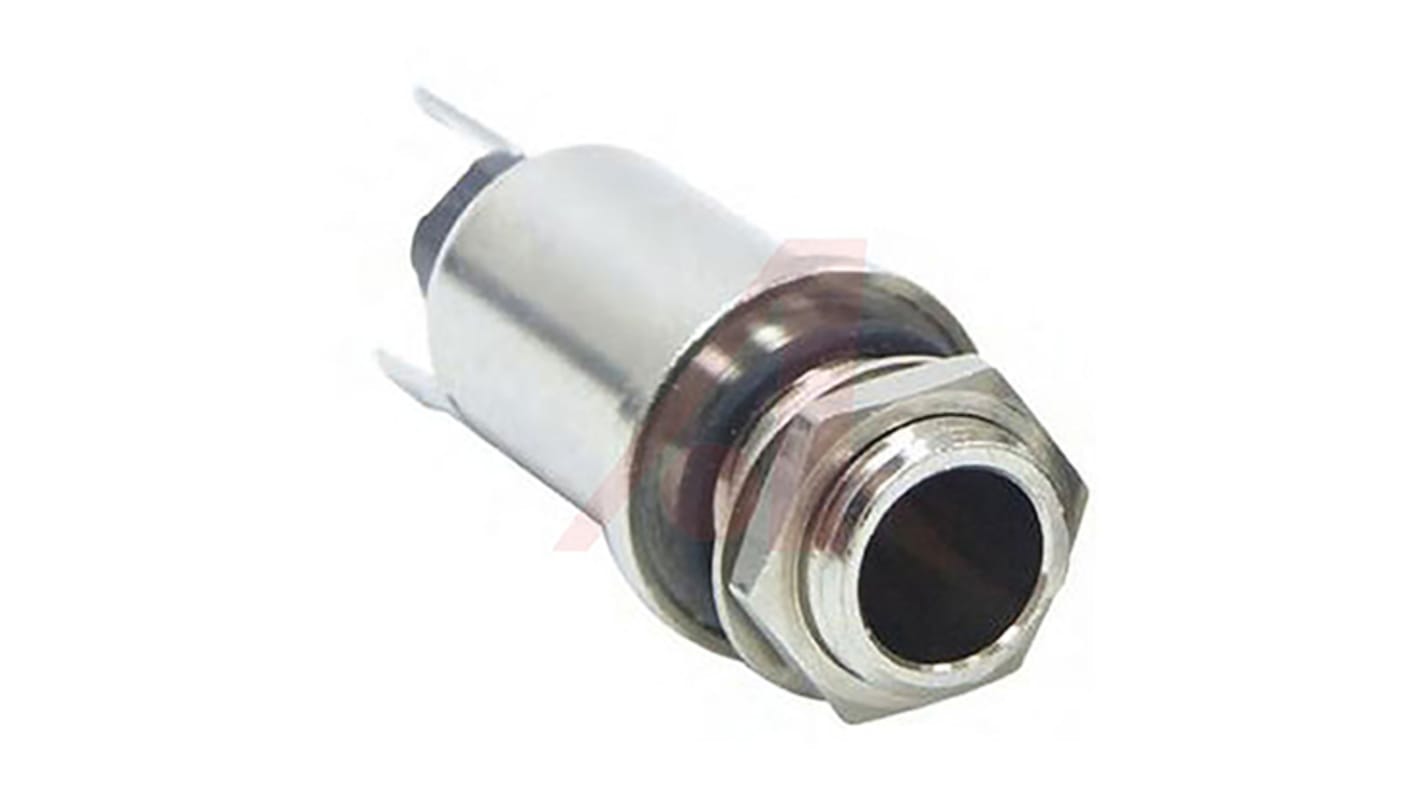

Switchcraft, ST DC Power Plug Rated At 13A, 24 V ac/dc, Through Hole, length 28.97mm, Gold over Silver, IP66, IP67, IP68

  • RS Stock No. 878-5257
  • Mfr. Part No. ST10U
  • Manufacturer Switchcraft
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Switchcraft DC Power Plugs, 2.1mm and 2.5mm

Switchcraft 2 conductor DC power plugs with a hollow centre pin and molded plastic covers for use with 2.1mm and 2.5mm Jacks. The sleeve terminal also serves as a cable clamp. Available in red or black cover versions and in versions that lock when mated into a suitable jack socket.

Features and Benefits

• Current rating 5A at 12VDC
• Over 10,000 mating cycles

Plugs & Sockets

Miniature plugs suitable for powering portable radios, calculators plus test and measurement instruments from a fixed, low-voltage d.c. source. Chassis mounting sockets for the 2.1mm plugs and adaptor leads terminated with 2.1mm and 2.5mm plugs and sockets are also available. Contacts are nickel/silver plated brass.Connector bodies are moulded in ABS plastic

Specifications
Attribute Value
DC Power Connector Type DC Plug
Current Rating 13.0A
Body Orientation Straight
Voltage Rating 24.0 V
Length 28.97mm
Mounting Type Panel Mount
IP Rating IP66, IP67, IP68
Pin Diameter 2.1mm
Contact Plating Gold, Silver
Contact Material Copper Alloy
Series ST
