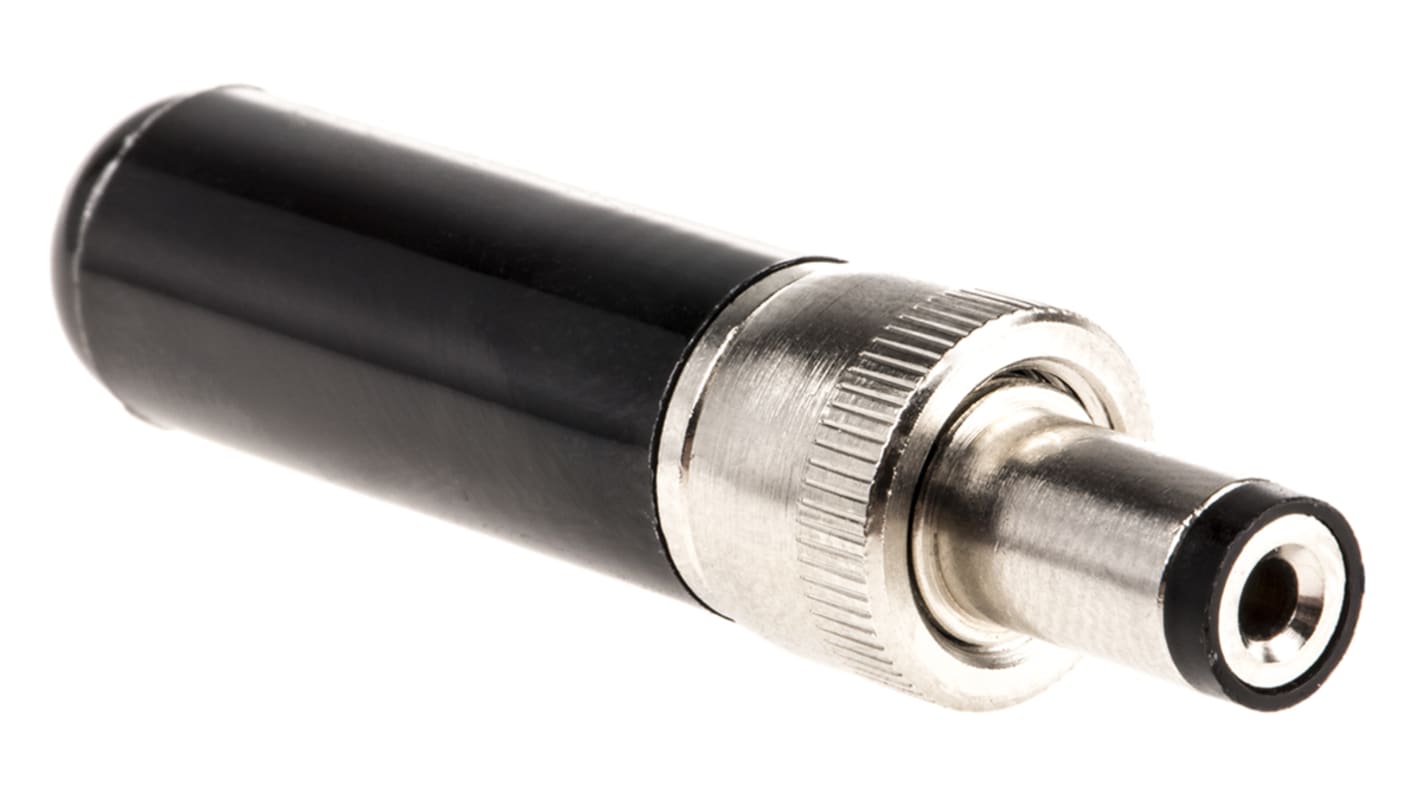

Switchcraft DC Plug Rated At 5.0A, Cable Mount, length 43.2mm, Tin
- RS Stock No.:
- 768-4400
- Mfr. Part No.:
- S760K-RS
- Manufacturer:
- Switchcraft
388 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR46.78
| Units | Per Unit |
| 1 - 9 | MYR46.78 |
| 10 - 49 | MYR45.25 |
| 50 + | MYR43.78 |
- RS Stock No.:
- 768-4400
- Mfr. Part No.:
- S760K-RS
- Manufacturer:
- Switchcraft
Technical data sheets
Legislation and Compliance
Product Details
Switchcraft DC Power Plugs, 2.1mm and 2.5mm
Switchcraft 2 conductor DC power plugs with a hollow centre pin and molded plastic covers for use with 2.1mm and 2.5mm Jacks. The sleeve terminal also serves as a cable clamp. Available in red or black cover versions and in versions that lock when mated into a suitable jack socket.
Features and Benefits
• Current rating 5A at 12VDC
• Over 10,000 mating cycles
• Over 10,000 mating cycles
Plugs & Sockets
Miniature plugs suitable for powering portable radios, calculators plus test and measurement instruments from a fixed, low-voltage d.c. source. Chassis mounting sockets for the 2.1mm plugs and adaptor leads terminated with 2.1mm and 2.5mm plugs and sockets are also available. Contacts are nickel/silver plated brass.Connector bodies are moulded in ABS plastic
Specifications
Attribute | Value |
|---|---|
| DC Power Connector Type | DC Plug |
| Current Rating | 5.0A |
| Inner Diameter | 2.1mm |
| Body Orientation | Straight |
| Length | 43.2mm |
| Mounting Type | Cable Mount |
| Contact Plating | Tin |
| Contact Material | Brass |
