XP Power RDD DC-DC Converter, 12V dc/ 665mA Output, 42 → 176 V dc Input, 8W, Through Hole, +85°C Max Temp -40°C

RS Stock No.:: 122-4594
Mfr. Part No.:: RDD08110S12
Manufacturer:: XP Power

XP Power RDD DC-DC Converter, 12V dc/ 665mA Output, 42 → 176 V dc Input, 8W, Through Hole, +85°C Max Temp -40°C

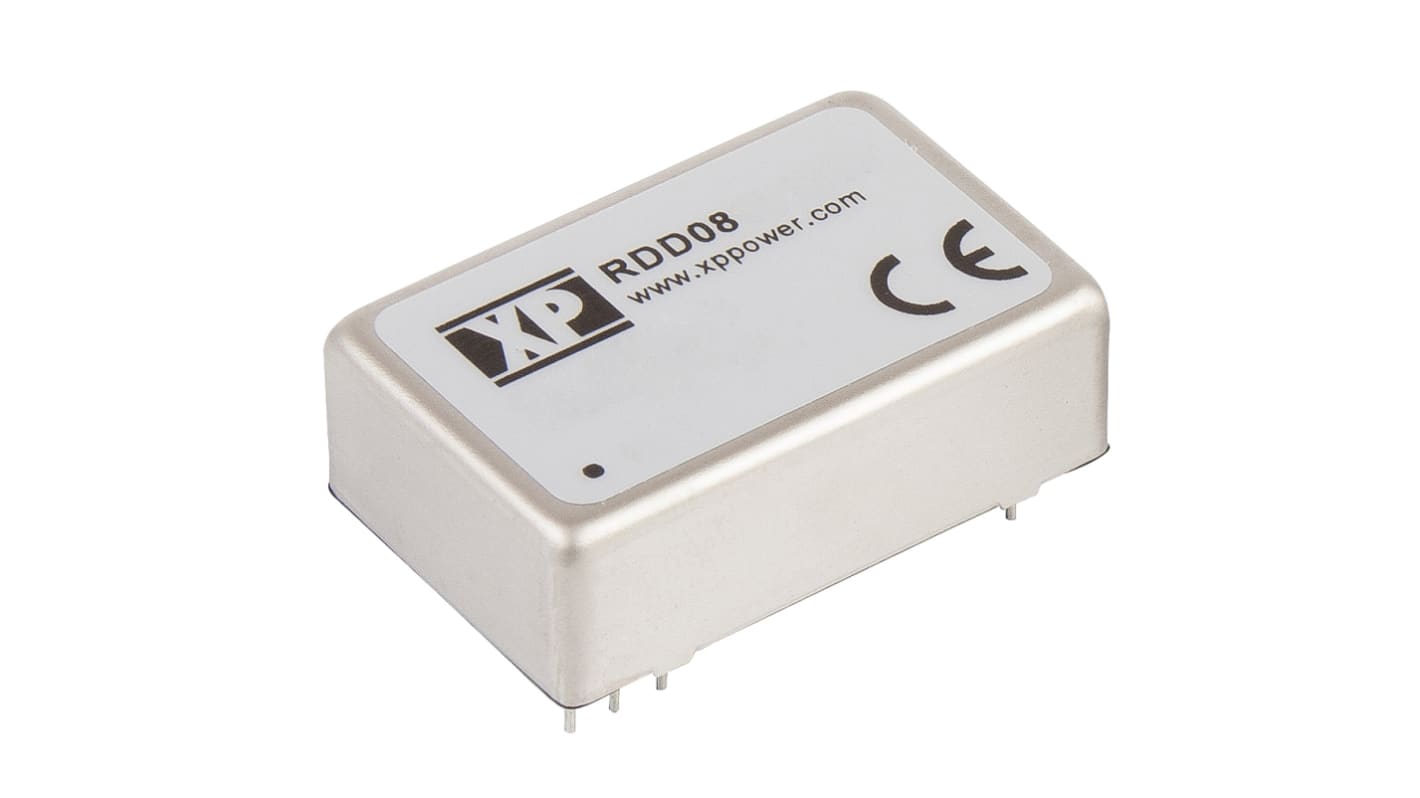

This image is representative of the product range

4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR188.58

Units	Per Unit
1 - 2	MYR188.58
3 - 4	MYR184.61
5 +	MYR179.06

RS Stock No.:: 122-4594
Mfr. Part No.:: RDD08110S12
Manufacturer:: XP Power

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

XP Power- RDD Series of DC-DC Converters

The RDD series from XP Power offers a highly reliable range of single and dual output, 8 W DC-DC converters. The range has been designed in a DIP24 plastic package with an industry standard footprint and features a wide input range for railway applications. These highly efficient DC-DC converters all have EN50155 approvals for railway applications.

8 W
DIP24 Plastic package
Operating temperature -40 °C to +85 °C
Full load at 70°C ambient
3000 V dc isolation
Wide input range for railway applications
EN50155 approvals for railway applications
EN50121-3-2 EMC for railway applications

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

XP Power - DC-DC Converters

Specifications

Attribute	Value
Output Voltage	12V dc
Input Voltage Range	42 → 176 V dc
Power Rating	8W
Input Voltage Nominal	110 V dc
Output Current	665mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	DIP 24
Isolation Voltage	3kV dc
Depth	10.16mm
Length	31.75mm
Width	20.32mm
Series	RDD
Railway Approved	Yes
Load Regulation	±0.5%
Minimum Temperature	-40°C
Medical Approved	No
Standards Met	CE Certified, EN 550121-3-2, EN50121-3-2, EN50155, EN50551, EN61000-4-8, MIL-HDBK-217F
Maximum Temperature	+85°C
