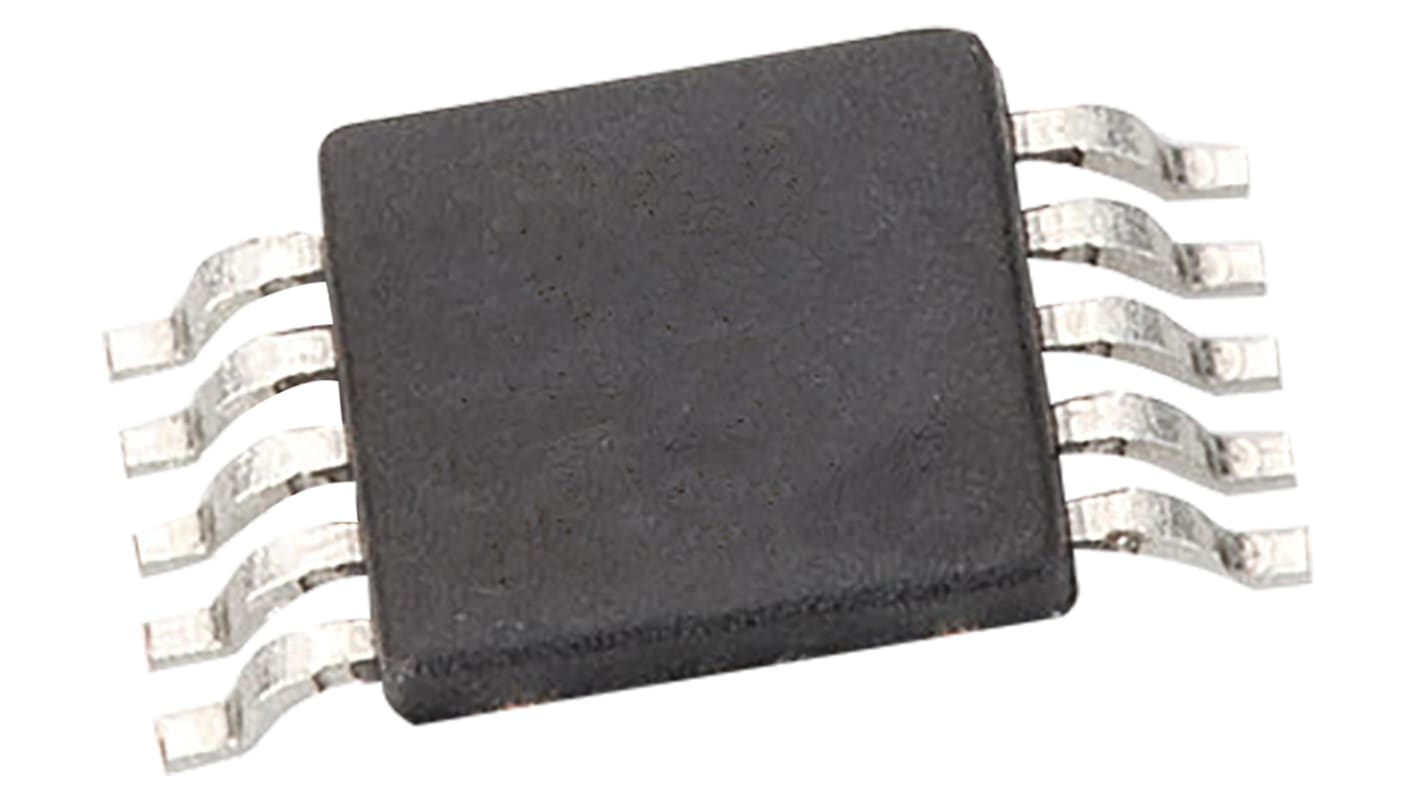

Texas Instruments TPS54240DGQR, 1-Channel, Step Down DC-DC Converter, Adjustable 10-Pin, MSOP
- RS Stock No.:
- 825-6822
- Mfr. Part No.:
- TPS54240DGQR
- Manufacturer:
- Texas Instruments
62 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 2)
MYR13.935
| Units | Per Unit | Per Pack* |
| 2 - 624 | MYR13.935 | MYR27.87 |
| 626 - 1248 | MYR12.93 | MYR25.86 |
| 1250 + | MYR12.19 | MYR24.38 |
| *price indicative | ||
- RS Stock No.:
- 825-6822
- Mfr. Part No.:
- TPS54240DGQR
- Manufacturer:
- Texas Instruments
Technical data sheets
Legislation and Compliance
Product Details
Step-Down DC/DC Converters (Integrated Switch) over 35V Input Max., Texas Instruments
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments
The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
Specifications
Attribute | Value |
|---|---|
| Minimum Output Voltage | 0.8 V |
| Maximum Output Voltage | 39 V |
| Minimum Input Voltage | 3.5 V |
| Maximum Input Voltage | 42 V |
| Maximum Output Current | 2.5A |
| Converter Type | Step Down |
| Number of Outputs | 1 |
| Output Type | Adjustable |
| Maximum Switching Frequency | 720 kHz |
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Pin Count | 10 |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Length | 3.1mm |
| Switching Regulator | Yes |
| Dimensions | 3.1 x 3.1 x 0.95mm |
| Width | 3.1mm |
| Height | 0.95mm |
